HVAC noise troubleshooting

Air Conditioner Electrical Buzzing Noise? Sort Fan and Panel Clues

Direct answer: Locate the buzz without opening the condenser. A light cabinet buzz with normal cooling points to panels, fan guard, or line contact. If the buzz is sharp, service-side, or paired with stalled fan, warm air, hot smell, or breaker trip, shut it off and call an HVAC tech.

Most likely: Usually, homeowner-visible cases start at the outdoor condenser: loose sheet metal, fan startup trouble, or a hidden electrical part under the service cover.

A soft hum can be normal. A new sharp buzz is different. A good clue is whether the fan starts and the air gets cold.

Don’t start with: Do not open the electrical compartment, push contactors, or replace stored-charge electrical parts from a noise guess.

Buzz at the outdoor unitCheck for loose panels, fan trouble, and whether cooling is still normal before you do anything else.

Buzz with weak or no coolingShut the system off and treat it as a likely electrical or compressor problem until proven otherwise.

Do this first

Turn the thermostat off if the buzz is loud, sharp, hot-smelling, or paired with weak cooling.
Do not remove condenser service covers or touch hidden electrical parts.
Stop for smoke, sparks, burned wiring smell, a breaker trip, or a disconnect that looks scorched.
Keep hands and tools away from the outdoor fan guard and indoor blower area while the system can start.
If the outdoor unit buzzes but the fan does not spin, leave it off and call an HVAC tech.
Stand on a dry surface if you shut off a breaker or disconnect, and stop if anything is wet or damaged.

Last reviewed: 2026-04-05

One-minute buzz sorter

Is the buzz light and does the system still cool normally?

Start with exterior vibration: loose panel screws, fan guard edges, line cover contact, and debris around the condenser.

Is the buzz strongest at the condenser service side?

Treat it as hidden electrical trouble. Do not open the panel; shut down if it is new, loud, or paired with weak cooling.

Does the top fan fail to start or start slowly?

Turn the AC off. A buzzing condenser with a stalled fan can overheat parts quickly.

Is the indoor air warm or only slightly cool?

Stop running the system and move to cooling diagnosis or service. Buzzing plus warm air is not a keep-testing condition.

Is the sound indoors near the air handler?

Check the filter, cabinet door, and return airflow first. Stop if the sound is electrical, hot-smelling, or behind a wiring cover.

Use the outside clues before opening anything

The safest diagnosis happens from the outside: where the buzz is loudest, whether the top fan starts, whether cooling changes, and whether the cabinet is vibrating.

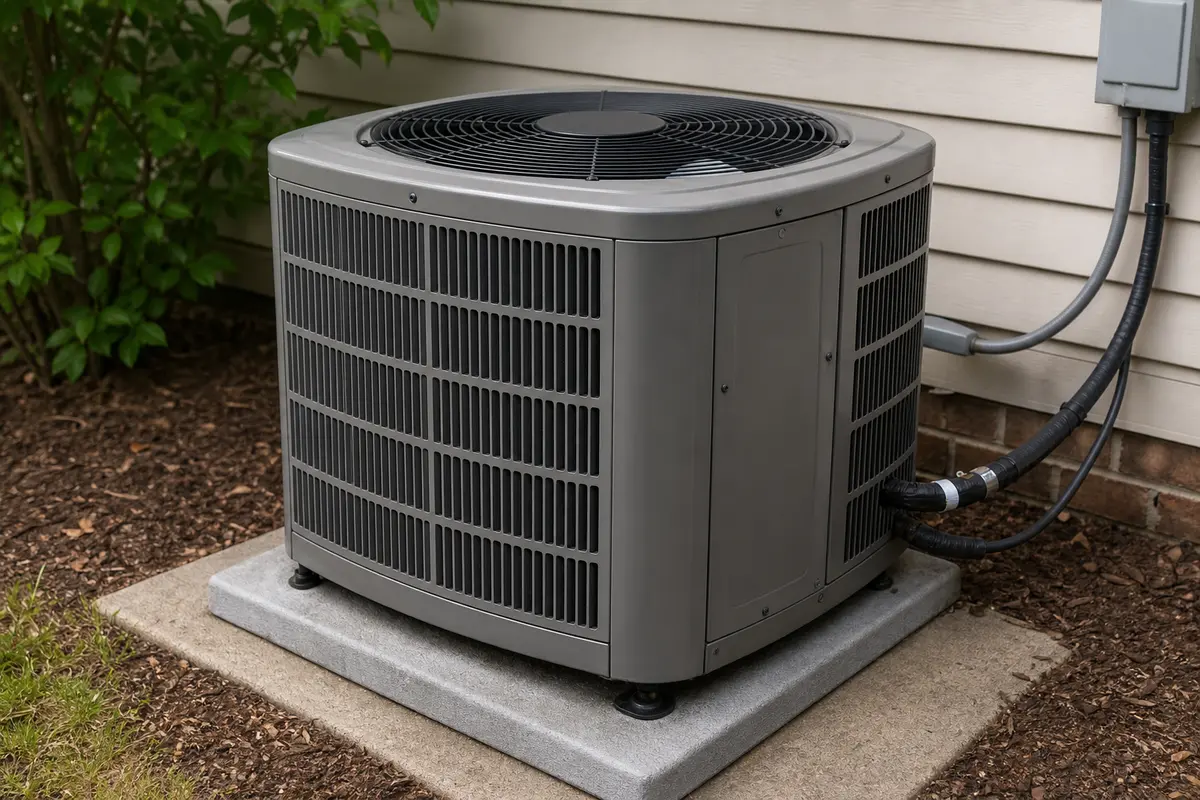

Outdoor air conditioner condenser with fan guard and service side used to locate an electrical buzzing noise — Stand back and locate the buzz first. A cabinet vibration and a service-side electrical buzz lead to very different next steps.

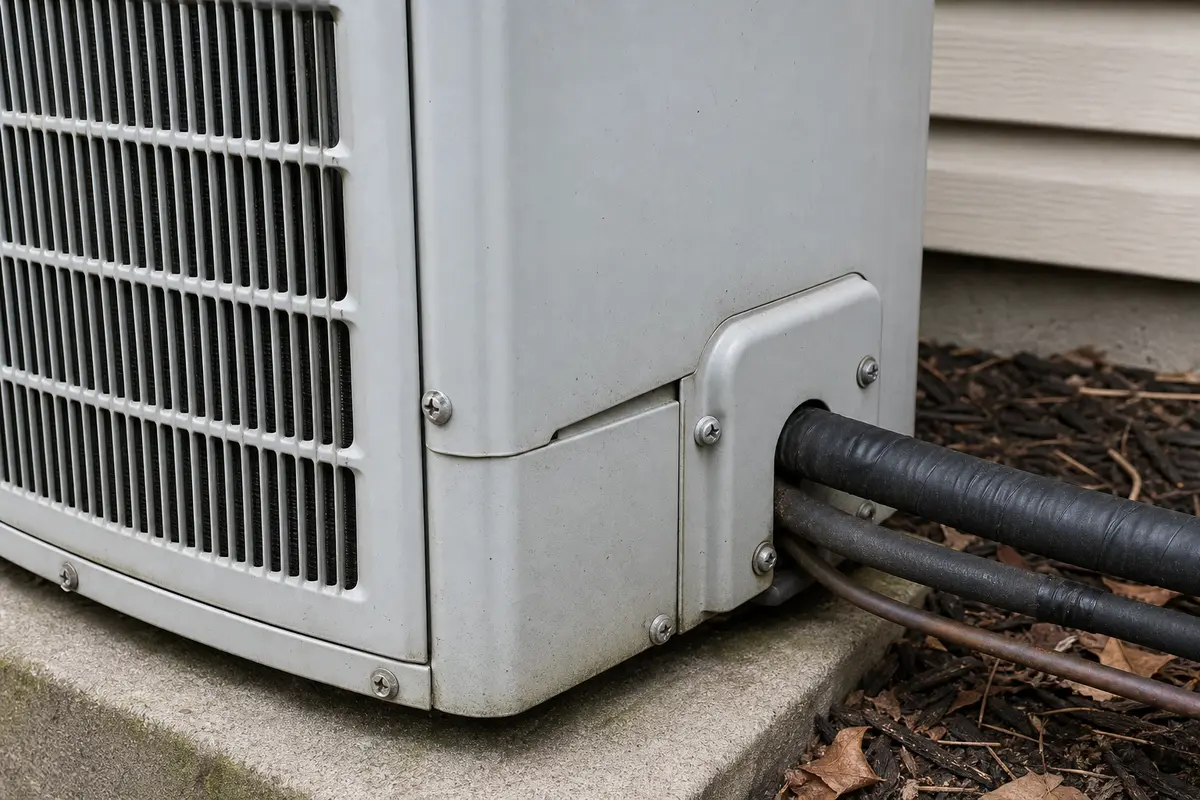

Air conditioner condenser side panel screws and line cover checked for vibration with power off — Loose screws, a bent grille edge, or tubing touching the cabinet can buzz like a larger problem. Check only accessible exterior parts with power off.

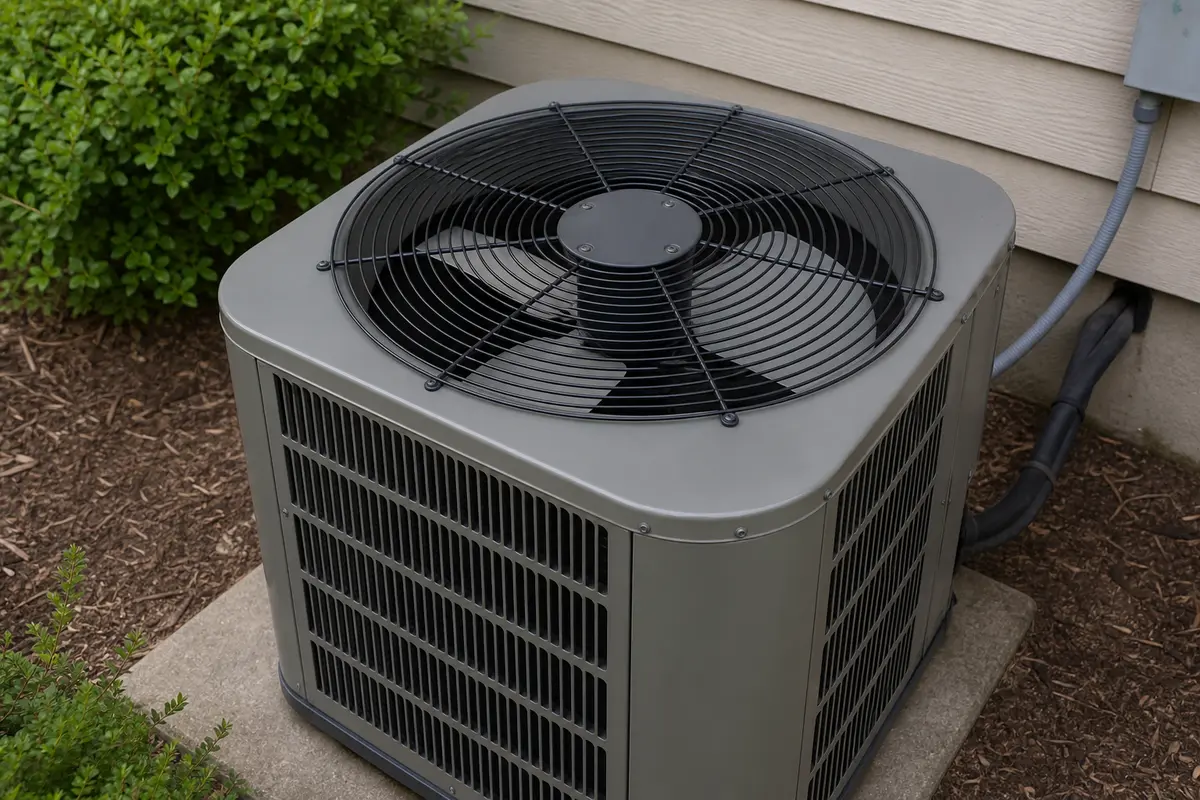

Air conditioner condenser fan guard viewed from above to confirm the fan starts during a cooling call — A condenser that buzzes while the fan sits still is a stop point. Do not keep cycling the system to see if it clears.

Before you buy anything

A buzzing AC is a bad place to guess at parts. Buy a filter only when the indoor filter is dirty, collapsed, wet, or clearly tied to weak airflow. Match the exact size and airflow direction. Leave stored-charge electrical parts, contactors, fan motors, and compressor parts for confirmed diagnosis and exact model fit.

Jump to: Buzz Result Table · Tools You May Need · Replacement Parts

What the buzz is telling you

The sound matters, but the location and timing matter more. A light cabinet buzz can be a simple vibration. A service-side buzz with poor cooling is a different lane.

Outdoor condenser overview used to compare vibration, fan, and service-side buzzing clues — Use a wide look first. Panel fit, fan movement, line contact, and service-side location all matter before anyone touches electrical parts.

Cabinet vibration is more likely when the AC still cools, the sound changes when an exterior panel is pressed, or the buzz comes from the grille, line cover, or side panel.
Fan-start trouble moves up the list when the condenser buzzes at startup and the top fan hesitates, pulses, or does not spin.
Hidden electrical trouble is more likely when the buzz is strongest at the service-side panel, repeats every cooling call, or comes with hot odor, breaker trouble, or warm air.
Compressor trouble becomes a concern when the sound is deep and strained, the fan may run but the air stays warm, or the outdoor unit shuts itself down.
Indoor buzzing is a separate branch. A clogged filter, loose air-handler panel, relay hum, or blower strain can sound electrical indoors even when the outdoor condenser is not the source.

What not to do first

Electrical buzzing tempts people into guessing. Keep the first pass outside the electrical compartment.

Exterior condenser panel and line contact points checked without opening electrical covers — Stay on the outside of the cabinet. Loose panels and line contact are fair checks; the electrical compartment is not.

Do not remove the condenser service cover to look for the buzzing part.
Do not push in a contactor by hand, even for a quick test.
Do not replace stored-charge start parts because a forum said buzzing points there. Stored voltage and wrong-part installs can hurt you and the equipment.
Do not keep restarting a condenser that buzzes while the fan sits still.
Do not tighten or move anything near wiring, wet ground, or a damaged disconnect.
Do not diagnose compressor trouble from sound alone. The useful homeowner job is to document the pattern and stop the system when the clues turn risky.

Read the fan and cooling result

Use one normal cooling call to gather clues. Watch from a safe distance, then shut the system down if the result points to electrical strain.

Set the thermostat to call for cooling and listen from several feet away.
Watch whether the top fan starts on its own, starts slowly, or stays still.
After two to three minutes, check whether supply air indoors is clearly cooler than room air.
Note whether the buzz stops once the fan is running or stays deep and strained.
Turn the system off if the fan stalls, the air stays warm, or the breaker trips.

What you see or hear	What it usually means	Next move
Buzz changes when an exterior panel is pressed	Loose panel, grille edge, or line cover vibration is likely.	Turn power off, reseat accessible panels, clear debris, and listen again.
Condenser buzzes but top fan does not spin	Fan motor, start component, or hidden electrical issue is possible.	Turn the thermostat off and schedule HVAC service.
Fan runs but indoor air stays warm	Compressor or refrigerant-side trouble may be involved.	Stop running the system and move to service diagnosis.
Buzz is strongest at the service-side cover	Hidden electrical parts may be chattering or struggling under load.	Do not open the cover. Shut down if the buzz is new, loud, or paired with poor cooling.
Breaker trips, smoke appears, or wiring smells hot	High-risk electrical fault.	Keep the system off and call a licensed HVAC tech or electrician as appropriate.

Separate outdoor buzzing from indoor buzzing

The outdoor condenser is the common suspect, but an indoor blower cabinet or relay can make a buzz that travels through the ductwork.

Outdoor condenser fan guard viewed from above while checking whether the fan starts during buzzing — Fan movement is one of the best visible clues. If the unit buzzes and the fan does not start, stop testing.

An outdoor-only buzz points to condenser panels, fan startup, compressor strain, or hidden electrical parts.
An indoor-only buzz points first to the return filter, air-handler door, blower cabinet vibration, or a relay/control sound.
Fan-only mode is useful. If the indoor buzz happens in fan-only mode, the outdoor condenser is not the source.
A dirty or collapsed filter can make the indoor blower strain. Replace it only when the size and airflow arrow match the old filter or cabinet label.
Stop at normal filter and cabinet-door checks. Do not reach into the blower section or open wiring covers.

When this becomes a service call

Some AC buzzing is safe to sort from outside. Some is a stop sign. The line is crossed when the buzz points to electricity, a stalled motor, or a compressor that is not starting cleanly.

Call an HVAC tech if the outdoor fan does not start, starts slowly, or stops while the unit buzzes.
Call for service if the house is not cooling and the condenser gives a heavy hum, buzz, or groan.
Keep the system off if you smell burned wiring, hot plastic, or ozone near the condenser, air handler, disconnect, or breaker panel.
Do not keep cycling a unit that trips the breaker. Repeated resets can make a fault worse.
If a disconnect, whip, or breaker panel looks scorched or damaged, stop there and use a licensed electrician or HVAC tech depending on the location of the damage.

Tools You May Need

These tools are only for exterior checks, normal filter access, and safe observation. Skip any step that would expose wiring.

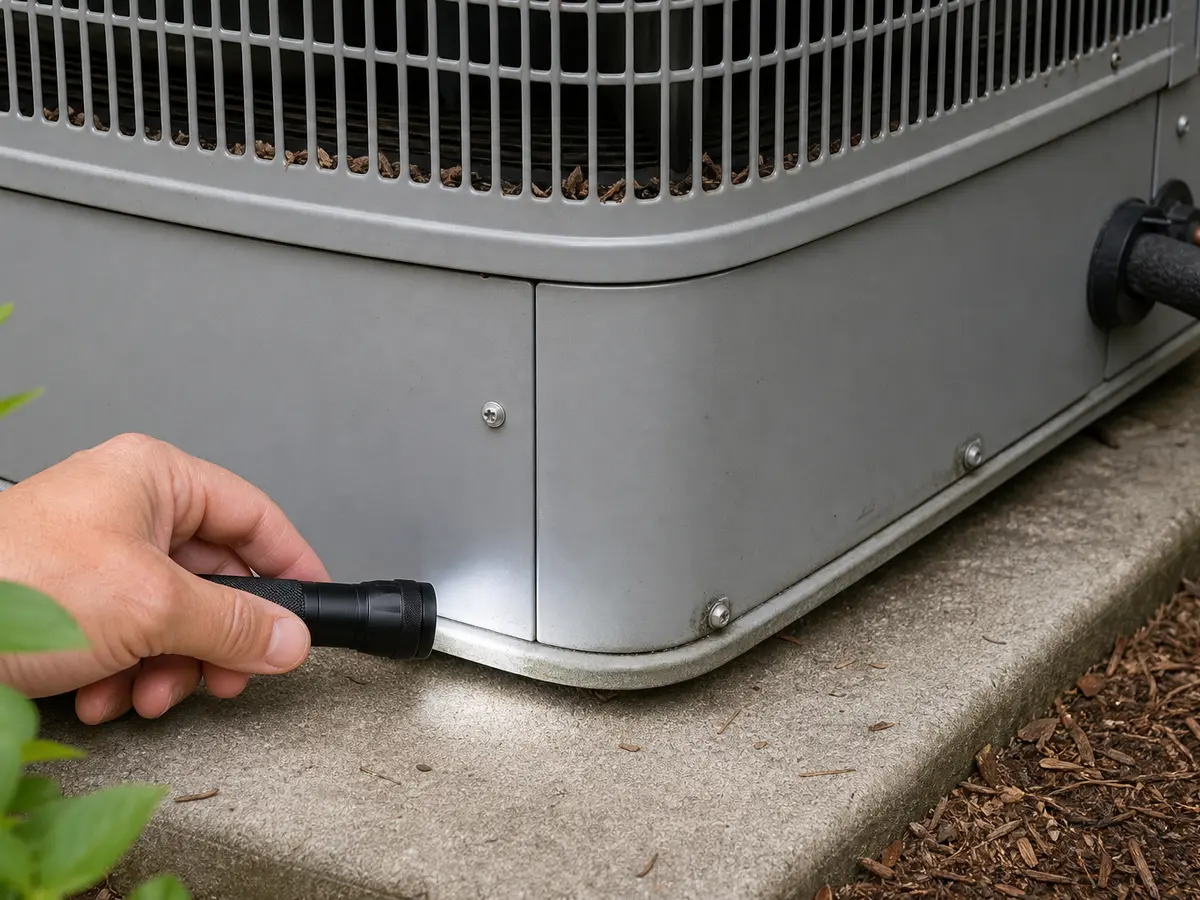

Inspection flashlight

Helps when: Use it to see panel gaps, fan-guard debris, line contact, cabinet screws, and the indoor filter slot without opening electrical covers.

Skip it when: Skip the inspection if the only path forward is removing the condenser service cover or reaching into the blower section.

Compare inspection flashlights on Amazon

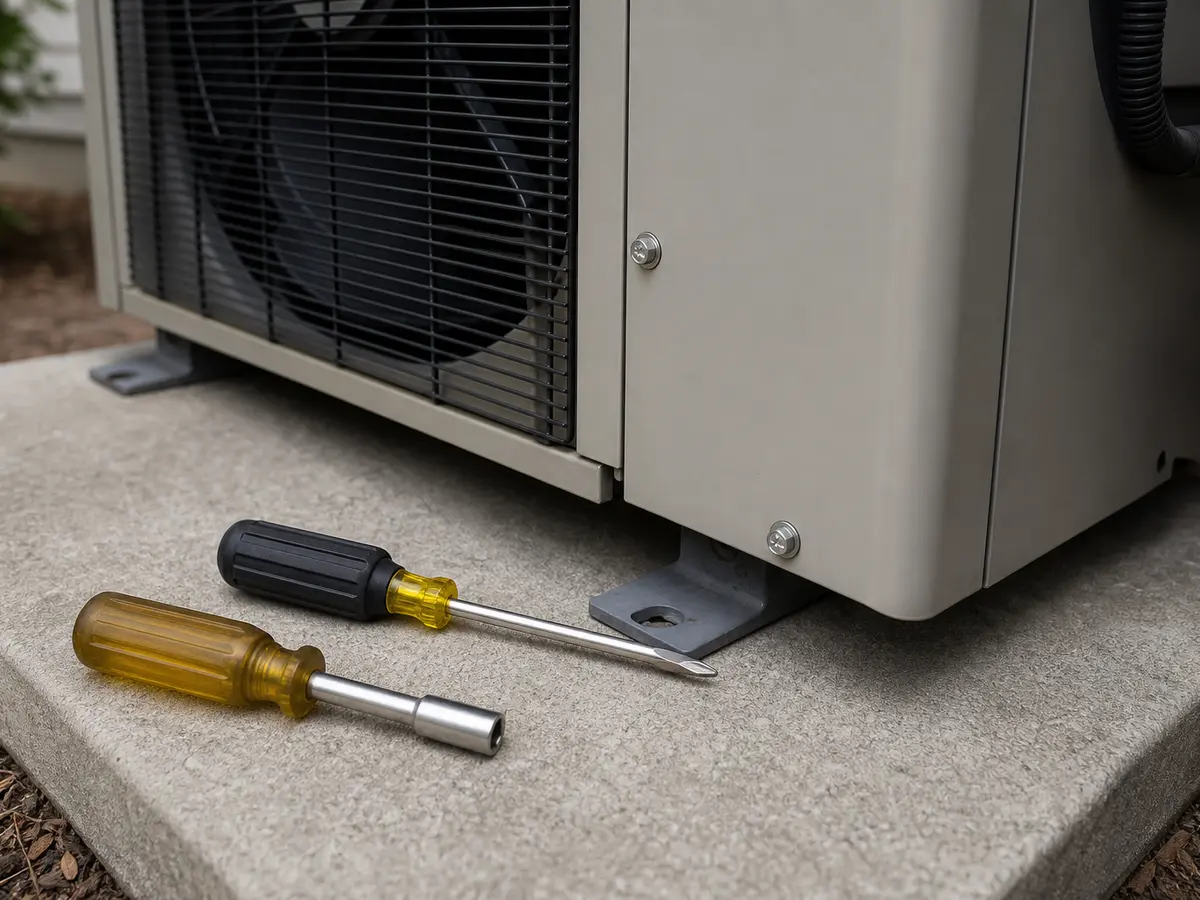

Nut driver and screwdriver for accessible air conditioner cabinet screws

Nut driver or screwdriver

Helps when: Useful for snugging accessible exterior cabinet screws or a normal indoor filter door after power is off.

Skip it when: Do not use it on electrical covers, sealed service panels, damaged disconnects, or anything near exposed wiring.

Compare nut driver sets on Amazon

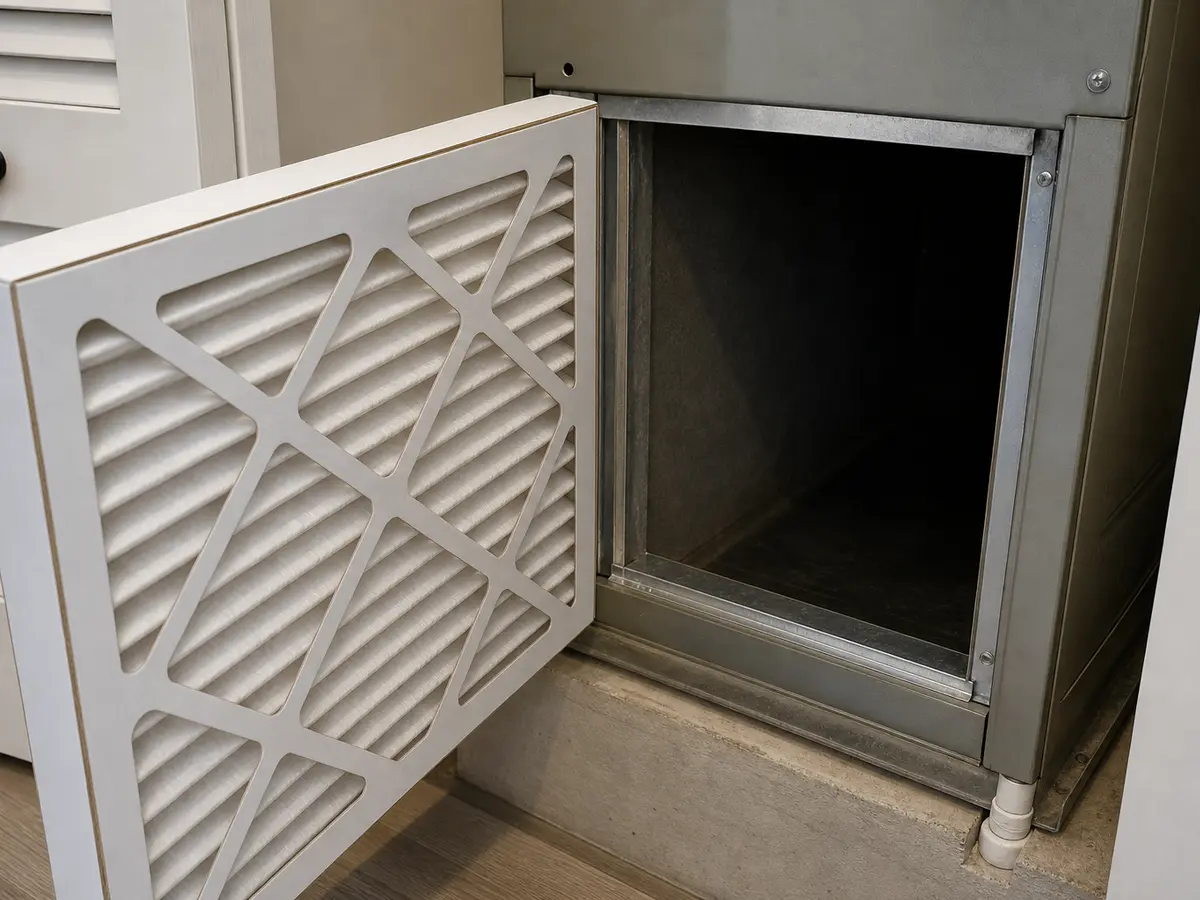

Replacement air conditioner filter

Helps when: Use only when the indoor filter is dirty, collapsed, wet, or the indoor buzz changes with airflow.

Skip it when: Skip filter buying when the buzz is outside at the condenser or the existing filter is clean and seated correctly.

Compare AC filters on Amazon

As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.

Replacement Parts

For homeowners, the filter is the only reasonable buy-first part here. Electrical parts need testing, model matching, and safe handling.

Buy a filter only when the indoor filter is dirty, collapsed, wet, bowed, or the indoor buzz changes after reseating it.
Match the printed size, depth, MERV range your system can handle, and airflow arrow.
Do not order stored-charge electrical parts, contactors, fan motors, control boards, or compressor parts from a buzzing sound alone.
If a tech confirms an electrical part, use the exact model information and professional diagnosis instead of this general symptom page.

Correct-size air conditioner filter for indoor airflow checks

Correct-size AC filter

Helps when: The existing filter is overdue, clogged, collapsed, wet, or loose in the indoor return/air-handler slot.

Skip it when: The noise is outdoors at the condenser, the fan is stalled, the system blows warm air, or the current filter is clean and seated flat.

Compare AC filters on Amazon

As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.

What to tell the HVAC tech

Good notes shorten the diagnostic visit and keep the conversation focused on evidence instead of guesses.

Say where the buzz is loudest: condenser service side, top fan area, indoor air handler, thermostat, disconnect, or breaker area.
Report whether the outdoor fan starts, hesitates, pulses, or stays still.
Tell them whether the house cooled, blew warm air, short-cycled, or tripped a breaker.
Mention any hot smell, smoke, visible sparking, water near equipment, or scorched-looking disconnect.
Take photos of the outdoor unit model label, indoor unit label, thermostat setting, and filter size before the visit if you can do that safely.

FAQ

Is a buzzing air conditioner always dangerous?

No. A light vibration buzz from a loose panel or grille can be minor. A loud, sharp, or heavy buzz tied to poor cooling, a stalled fan, hot smell, or breaker trip is a different story and should be shut down.

Why is my outdoor AC unit buzzing but the fan is not spinning?

That usually means the unit is trying to start but the fan is not getting going. The cause may be a failing condenser fan motor or another start-related electrical problem inside the unit. Turn it off rather than letting it sit there and buzz.

Can a dirty filter cause an electrical buzzing noise?

It can contribute to indoor buzzing by making the blower work harder, especially at the air handler or furnace cabinet. It does not usually cause a strong outdoor condenser buzz.

Should I replace AC electrical start parts if my unit is buzzing?

Not as a homeowner guess. Those parts sit in the hidden electrical compartment, and HVAC equipment can hold shock risk even after power is removed. If the fan stalls, the air stays warm, or the breaker trips, shut the system off and call for service.

What does it mean if the AC buzzes and blows warm air?

That is one of the stronger signs of a serious outdoor-unit problem, often involving a hard-starting or non-starting compressor or another electrical fault. Shut the system off and move to the warm-air diagnosis path or call for service.

Can I keep running the AC if it still cools a little?

If the buzz is new and clearly electrical-sounding, it is smarter to stop. A struggling fan motor or compressor can still cool a bit right before it fails harder.

What should I check before calling for AC buzzing service?

Check the safe outside clues: where the buzz is loudest, whether the outdoor fan starts, whether the house cools, whether the breaker trips, and whether the sound changes when accessible exterior panels are pressed with power off.

Can a loose condenser panel sound electrical?

Yes. Thin sheet metal, a fan guard, a line cover, or tubing touching the cabinet can buzz sharply. That is why a power-off exterior vibration check comes before hidden electrical parts.

Sources and reference notes

Repair Riot keeps this page grounded in visible homeowner checks and connected HVAC symptom pages. It does not treat hidden electrical parts as buy-first homeowner repairs.

Air conditioner blowing warm air — Use when the buzz comes with weak cooling or warm supply air.
Air conditioner fan not spinning — Use when the condenser buzzes while the outdoor fan hesitates or stays still.
Air conditioner breaker trips in afternoon — Use when buzzing is paired with breaker trips or electrical shut-down symptoms.
