Microwave not heating

Breville Microwave Runs but Does Not Heat

Direct answer: If your Breville microwave runs but does not heat, start with one mug-of-water test on full power. If the mug stays cold, check the mode, door latch feel, and wall outlet. Stop before opening the cabinet; a confirmed no-heat failure after those checks points to high-voltage service work.

Most likely: A wrong mode, poor outlet, dirty latch area, sagging door, or door interlock problem can be checked from the outside. If the safe checks pass, stop and call a pro before any magnetron, capacitor, diode, transformer, or control diagnosis.

Treat this as a sorting job. A cold mug after a clean door and direct-outlet test is the point where homeowner diagnosis should stop.

Don’t start with: Do not remove the cover, test internal parts, or order a magnetron from this symptom alone. Microwaves can hold a dangerous high-voltage charge even after they are unplugged.

Runs normally but food stays cold?Check the door close, cooking mode, and outlet before blaming internal parts.

Heats weakly or only sometimes?Look for low power, extension-cord use, or a door latch problem before anything else.

Do this first

Unplug the microwave before cleaning the latch area, moving the unit, or checking the outlet fit.
Do not remove the microwave cover. Internal high-voltage parts can hold a dangerous charge after the unit is unplugged.
Stop if you smell burning, hear harsh buzzing, see sparks, notice arcing, or find scorch marks around the cavity or door frame.
Stop using a loose, scorched, hot, or breaker-tripping outlet until the electrical issue is corrected.
Do not keep running repeated no-heat tests. One controlled water test is enough to confirm the symptom.

Last reviewed: 2026-04-17

Two-minute no-heat sorter

Does one cup of water stay cold after one minute on high?

Confirm a true no-heat problem, then move to mode, door, and outlet checks before blaming internal parts.

Does it heat after Cancel/Stop and a plain timed cook?

The issue was likely a setting, sensor mode, or control state rather than a failed heating part.

Does pressing or lifting the door change heating?

Stop DIY parts guessing. Door latch or interlock behavior is involved, and cabinet-off testing is not homeowner work.

Does another direct wall outlet make it heat normally?

The original outlet, cord fit, or circuit load is the problem to fix before replacing microwave parts.

Does it buzz, arc, smell hot, or trip power?

Unplug it and stop. That is beyond safe outside checks.

Safe checks before you call it an internal failure

Keep the diagnosis outside the cabinet. The water test, door fit, latch area, and outlet are the checks a homeowner can do without getting into high-voltage microwave work.

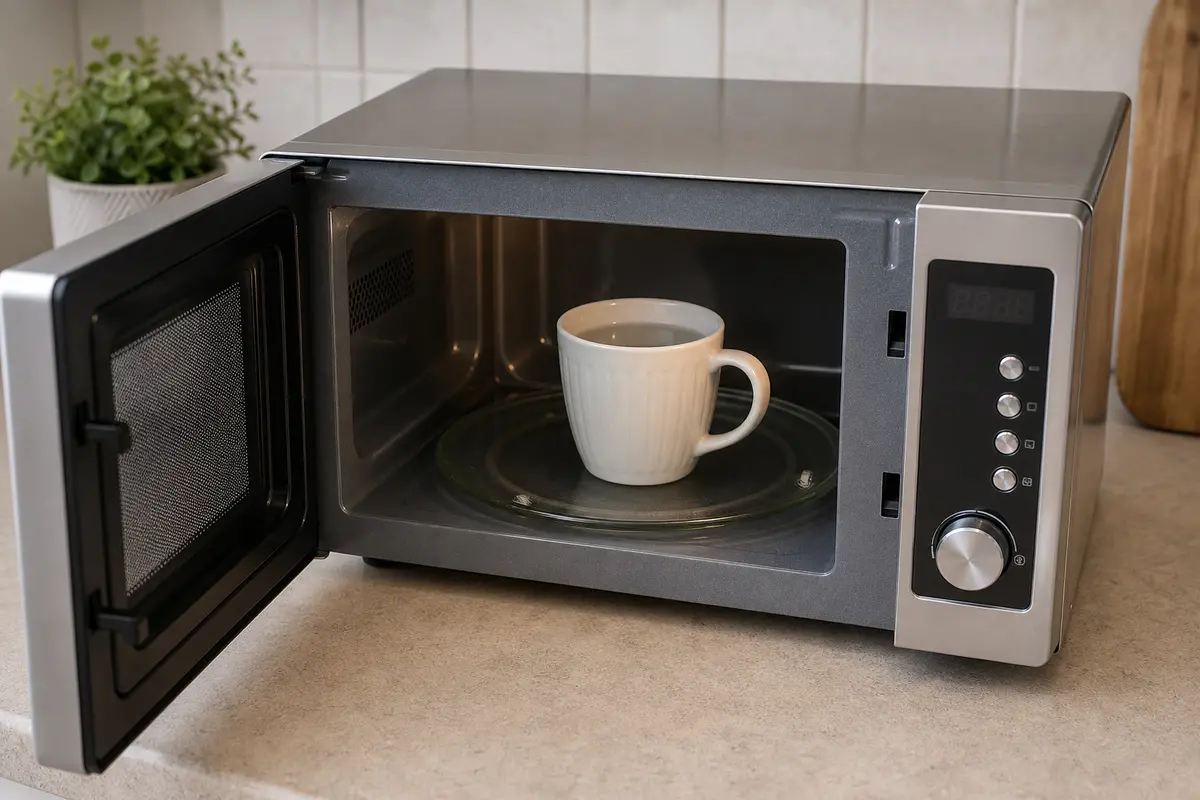

Microwave-safe mug inside Breville-style microwave for no-heat test — Use one cup of water for one minute on high to confirm whether the microwave is truly not heating.

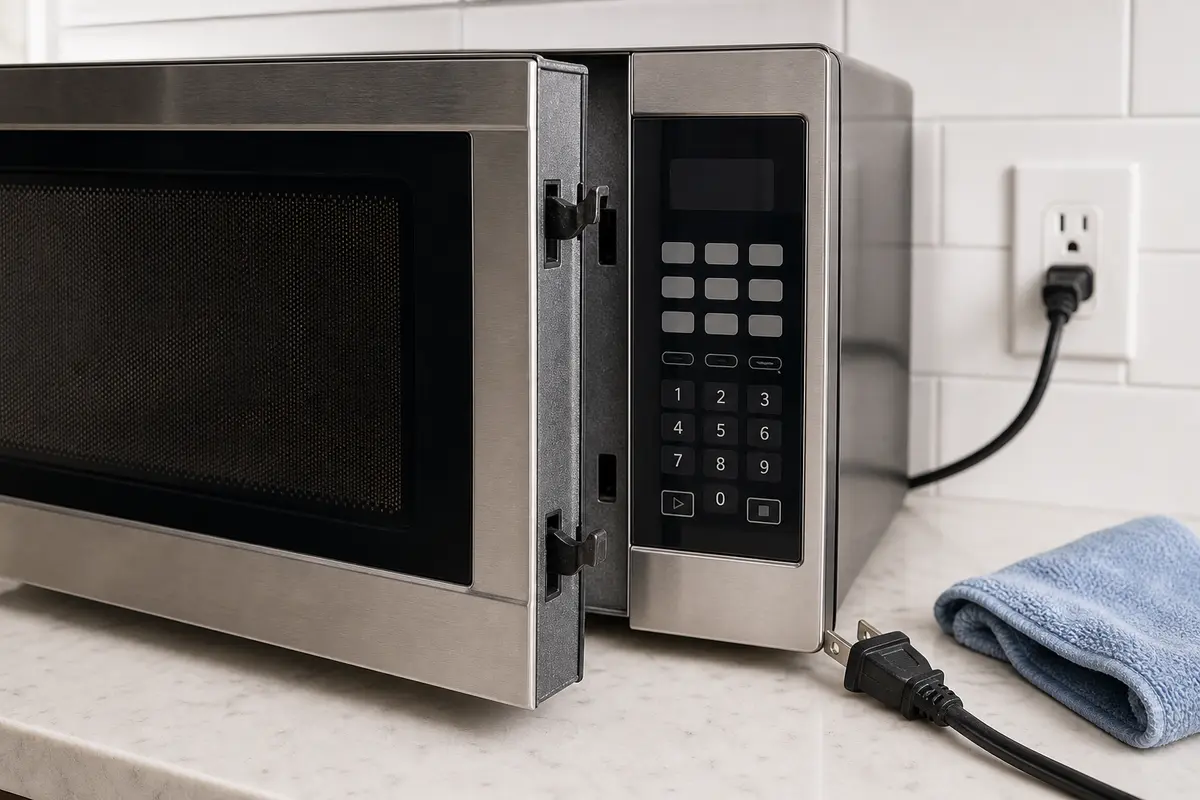

Microwave door latch area and outlet checked without removing the cabinet cover — Door fit, latch residue, plug fit, and outlet condition are the safe outside checks.

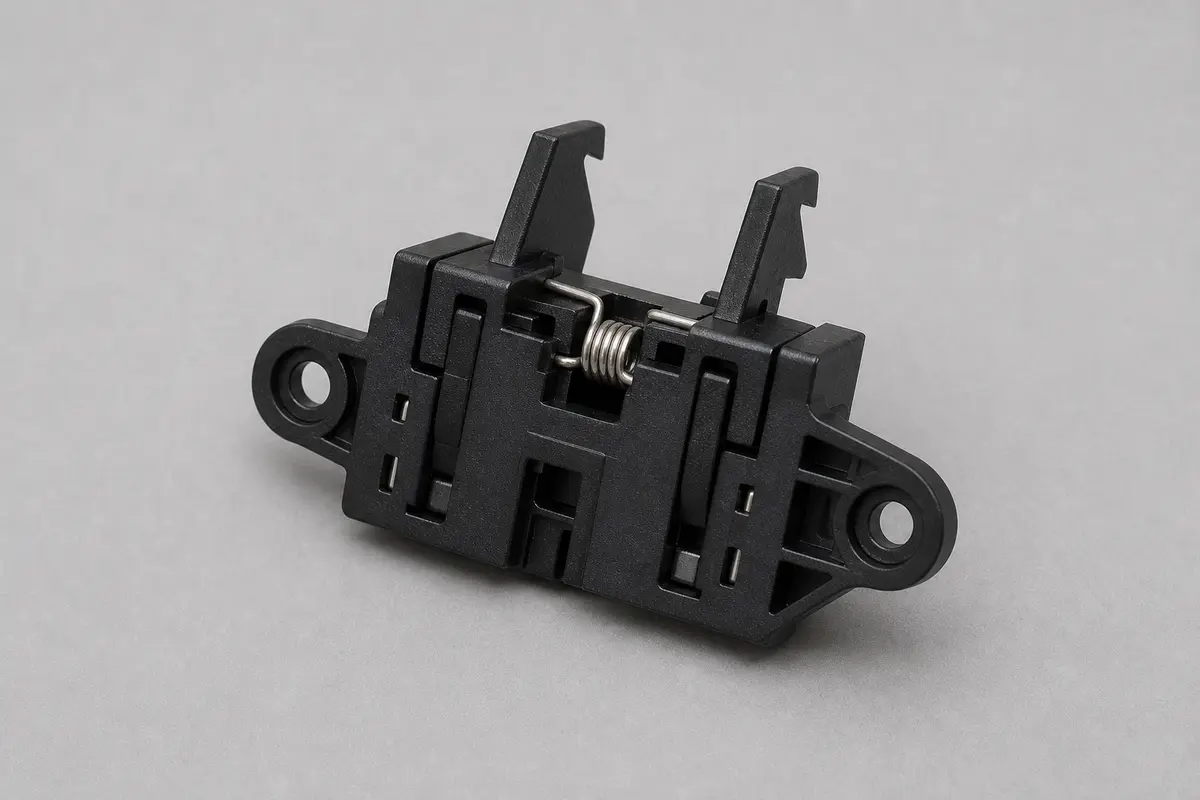

Replacement microwave door latch assembly with hooks, spring, and mounting tabs — A latch assembly is only a reasonable buy when door position or visible latch damage points there.

Before you buy anything

Do not buy a magnetron, capacitor, diode, transformer, or control board from a no-heat symptom; stop and call a pro before any high-voltage parts diagnosis. The only part this page supports as a homeowner-side buy is a door latch assembly, and only when the latch hooks are damaged or door position clearly changes operation. Match the exact model tag and part diagram before ordering.

Jump to: No-heat result table · Tools You May Need · Replacement Parts

What the one-minute water test tells you

Use one plain test so you know whether this is really a heating failure. Food shape, frozen spots, sensor cycles, and reduced-power settings can make the symptom look worse than it is.

Breville-style microwave with mug of water ready for a one-minute no-heat test — One controlled mug test is enough. Repeating no-heat runs does not make an internal failure safer or clearer.

Put about 1 cup of room-temperature water in a microwave-safe mug and run a plain timed cook for 1 minute on high.
If the water is clearly hotter, the microwave can heat and the earlier problem may be a mode, load, or use issue.
If the water stays cold while the light, fan, and turntable run, continue with the door and outlet checks.
If the microwave buzzes harshly, smells hot, sparks, or trips power during the test, unplug it and stop.

Door and outlet checks stay outside the cabinet

These are the safe checks worth doing before service. You are looking for a door that does not close squarely, a latch area that is dirty or damaged, or an outlet setup that cannot support the load.

Microwave door latch area and wall outlet checked from outside the cabinet — Keep the checks outside the cabinet: door fit, latch cleanliness, plug fit, and outlet condition.

Open and close the door slowly. It should sit flush without lifting, slamming, or holding pressure on the handle.
Wipe food residue from the latch hooks and strike area with a damp soft cloth, then dry it fully.
Plug the microwave directly into a solid wall outlet. Do not test through an extension cord, adapter, or power strip.
Stop if pressing, lifting, or holding the door changes whether the microwave heats. That points toward latch or interlock trouble.

What not to do first

A running microwave with no heat makes people jump straight to magnetron talk. That is exactly where the repair can become unsafe and expensive.

Do not remove the cover to look for the magnetron, capacitor, diode, transformer, relay, or fuse; stop and call a pro before high-voltage diagnosis.
Do not buy internal high-voltage parts from a no-heat symptom without trained diagnosis.
Do not keep restarting the microwave if it buzzes, arcs, smells hot, or trips a breaker.
Do not force the door closed, tape anything, or hold the latch in a position that makes the unit run.
Do not use a loose or hot outlet for testing.

No-heat result table

Use the test result to decide whether this stays a safe outside check or moves to professional service.

What happens	What it usually means	Next move
Water heats normally	The microwave can heat; the earlier result may be mode, load, or timing related.	Clear the controls and test the original food setup again.
Water stays cold but the unit sounds normal	Outside checks are not done yet, or the heating circuit has failed internally.	Check door close, latch area, direct outlet, and circuit load.
Heating changes when you press or lift the door	Door latch, hinge, or interlock behavior is involved.	Stop DIY diagnosis and consider service or replacement depending on age and value.
A different direct outlet restores heating	The first outlet, extension cord, adapter, or circuit load was the problem.	Use a proper outlet and correct any loose or overheated receptacle.
Stop if buzzing, arcing, burn smell, or breaker trip appears	High-risk internal or electrical fault is possible.	Unplug the microwave and stop using it.

Tools You May Need

These are only for outside checks. Skip any tool path that would require taking the microwave cover off.

Microwave-safe mug

Helps when: Use it for the single controlled water-heating test on full power.

Skip it when: Do not keep repeating no-heat tests if the first test stays cold or the unit sounds wrong.

Compare microwave-safe mugs on Amazon

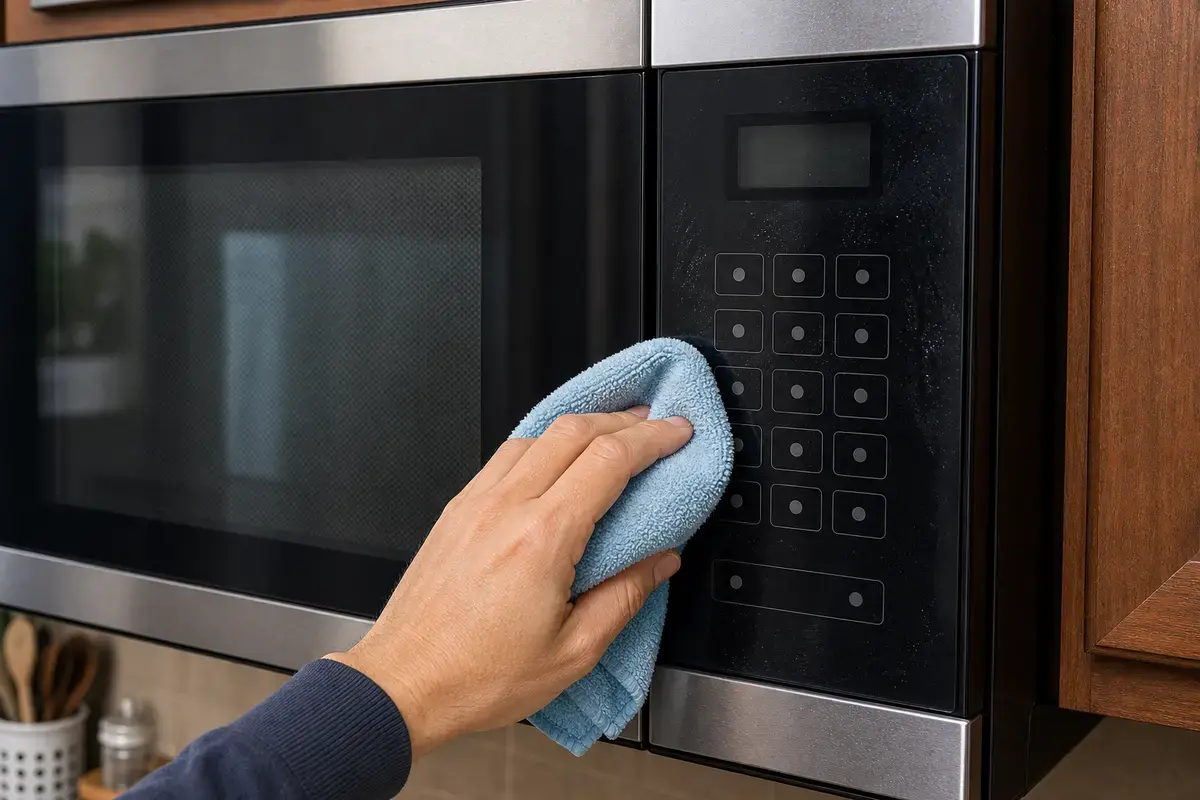

Soft cloth beside microwave latch area for outside cleaning

Soft cleaning cloth

Helps when: Use it to wipe residue from the door latch hooks and strike area.

Skip it when: Do not spray cleaner into vents, controls, switches, or latch openings.

Compare cleaning cloths on Amazon

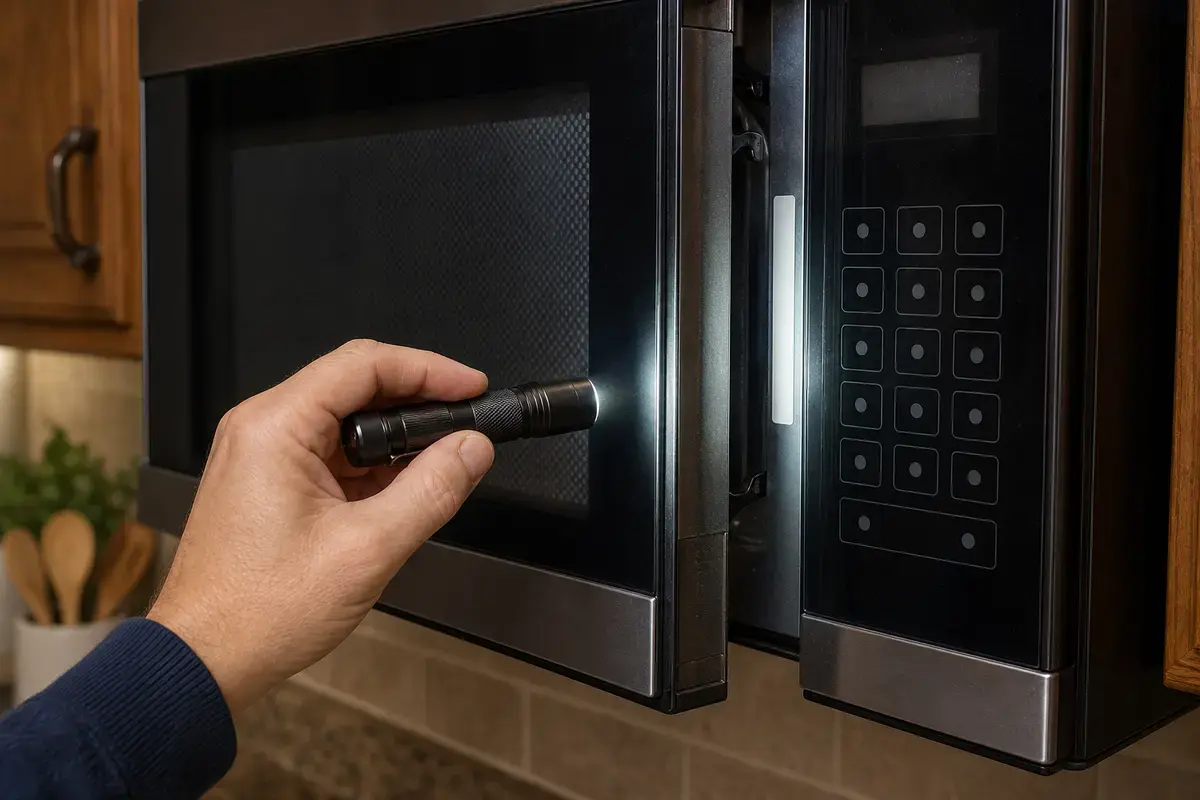

Microwave latch and outlet area inspected from outside with good light

Compact inspection flashlight

Helps when: Use it to inspect latch hooks, door gaps, scorch marks, plug fit, and outlet condition.

Skip it when: Do not use inspection as a reason to remove the cabinet cover.

Compare compact flashlights on Amazon

As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.

Replacement Parts

This page only supports a door-latch buy when the outside symptoms point there. Stop and call a pro before any internal high-voltage parts diagnosis.

Buy a microwave door latch assembly only if the latch hooks are visibly damaged, the door will not close flush, or door position changes whether the unit heats.
Use the exact model tag and parts diagram before ordering because hook spacing and spring layout vary.
Do not buy a magnetron, capacitor, diode, transformer, or control board from a cold-water test alone; those are stop-and-call-a-pro parts.

Microwave door latch assembly

Helps when: The door will not latch cleanly, latch hooks are damaged, or lifting/pressing the door changes operation.

Skip it when: The door closes squarely and the no-heat result does not change with door position.

Compare microwave door latch assemblies on Amazon

As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.

FAQ

Why does my microwave run but not heat anything?

If the light, fan, and turntable work but food stays cold, start with one cup of water on high, a clean door latch area, and a direct wall outlet. If those are ruled out, the problem is usually in the internal heating circuit, which is the stop-and-call-a-pro point.

Can a bad door switch cause a microwave to run but not heat?

Yes. A microwave can look like it is running normally while the door interlock side is not allowing proper heating. If pressing, lifting, or re-closing the door changes the result, stop there and treat it as a door-latch or interlock issue.

Should I replace the magnetron myself?

No. Even unplugged, a microwave can store a dangerous electrical charge. Internal no-heat repairs are not a good homeowner project unless you are specifically trained and equipped for microwave high-voltage service.

Can a bad outlet make a microwave stop heating?

Yes. A loose receptacle, extension cord, adapter, or circuit already carrying another heavy load can let the display count down while heating stays weak. Test only on a direct wall outlet and stop if the plug or outlet gets hot.

Is it worth repairing a microwave that runs but does not heat?

Use the outside clues. A newer unit with a square door, clean latch, solid outlet, and no burn smell may be worth professional diagnosis. Stop using an older unit with door trouble, arcing, burning smell, or breaker trips, and compare the service quote against replacement.

Why does my Breville microwave sound normal but leave water cold?

The fan, light, display, and turntable can still run while the heating circuit is not producing microwave energy. If one controlled water test stays cold after the outside checks, stop before cabinet-off diagnosis.

Can I test microwave high-voltage parts with a meter?

Not as a normal homeowner repair. Microwave capacitors and high-voltage parts can be dangerous after unplugging. If the next step requires cover removal or internal testing, stop and call a qualified appliance tech or compare replacement.

What if the microwave only heats when I press the door?

Stop using it that way. Pressing or lifting the door changing the result points to latch, hinge, or interlock trouble. Do not force the door closed or defeat any safety switch.

Sources and reference notes

Repair Riot keeps microwave no-heat guidance focused on safe outside checks. Internal high-voltage diagnosis is treated as a stop point, not a homeowner parts list.

Microwave runs but does not heat — General microwave no-heat troubleshooting and service boundary.
Microwave not heating — Related symptom page for no-heat checks and internal-failure stop points.
Breville microwave door will not close — Use when latch or door fit is the main symptom.
