GE Profile Stove Burner Not Heating? Check Element, Cap, and Switch

If one GE Profile stove burner stays cold, first separate electric heat trouble from gas ignition trouble. If you smell gas or a breaker trips, stop testing. For one cold burner, check the element, receptacle, cap, ports, igniter, or burner switch before the main board.

For one electric coil, the failure often follows the element or stays with the receptacle. For one gas burner, the clue is cap position, port debris, spark location, and whether gas odor lingers.

Use the burner type, matching-burner comparison, and visible damage before ordering anything.

Don’t start with: Do not keep clicking a gas burner if you smell gas, and do not open the range until power is off. Skip control-board shopping until the burner-level checks point there.

Electric coil burnerPower off, reseat the coil, then compare it with a same-size working element.

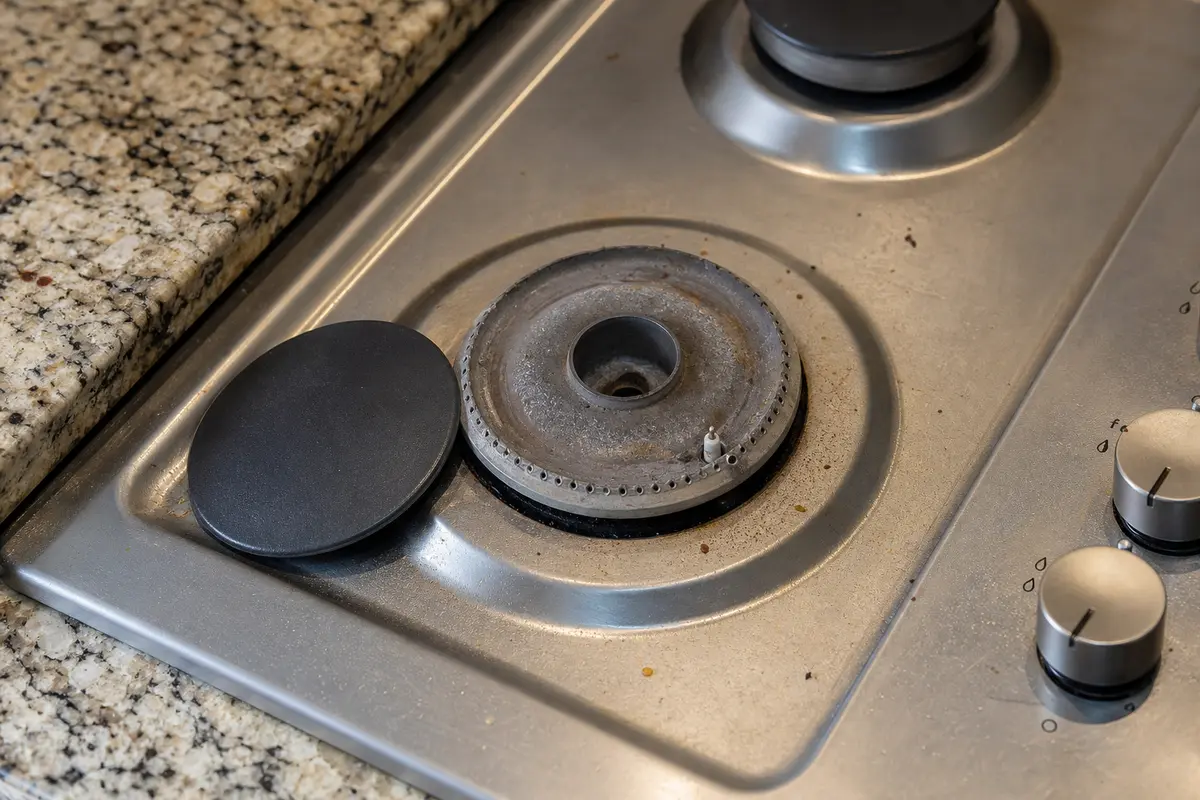

Gas burnerLet it cool, lift the cap and grate, clean dry ports with a nonmetal pick, and center the cap.

Do this first

Turn the burner knob fully off and let the cooktop cool before touching caps, grates, coils, or drip bowls.
If you smell gas after the knob is off, stop testing.
Ventilate if you can do that safely. Leave the area if the smell is strong, and call the gas utility or a licensed pro.
Disconnect power before lifting an electric coil, opening an access panel, or touching a burner receptacle.
Stop if a breaker trips, you see arcing, the glass cooktop is cracked, or wiring looks melted.
Do not enlarge gas burner ports with a metal pick.
Do not open gas tubing or work around live range wiring as a homeowner check.
Use the full model number before ordering any GE Profile burner part.

Last reviewed: 2026-04-17

60-second burner sort

Is only one burner affected?

Stay focused on that burner position. If several burners changed, treat it as power, control, gas supply, or service trouble instead.

Is it a removable electric coil?

Power off, reseat the coil, inspect the terminal ends, then compare with a same-size working coil.

Is it a glass-top radiant zone?

Look for a zone that never glows, heats only on one setting, cycles oddly, or sits under cracked glass. Stop at cracked glass or burned wiring.

Does the gas burner click but not light?

Let it cool, clean and dry the cap and ports, center the cap, then watch whether spark lands near the burner head.

Does a gas burner have no click?

Compare it with another burner. No spark at one burner after cleaning points toward that igniter path or switch circuit. Stop if gas odor lingers.

Does the failure follow the part?

If a removable coil fails in another same-size position, the coil is suspect. If the failure stays in one position, look at the receptacle, switch, or ignition hardware.

Use the visible burner clue first

One cold burner is not one diagnosis. Electric coils, glass radiant zones, and gas burners fail in different places, so let the visible clue choose the first check.

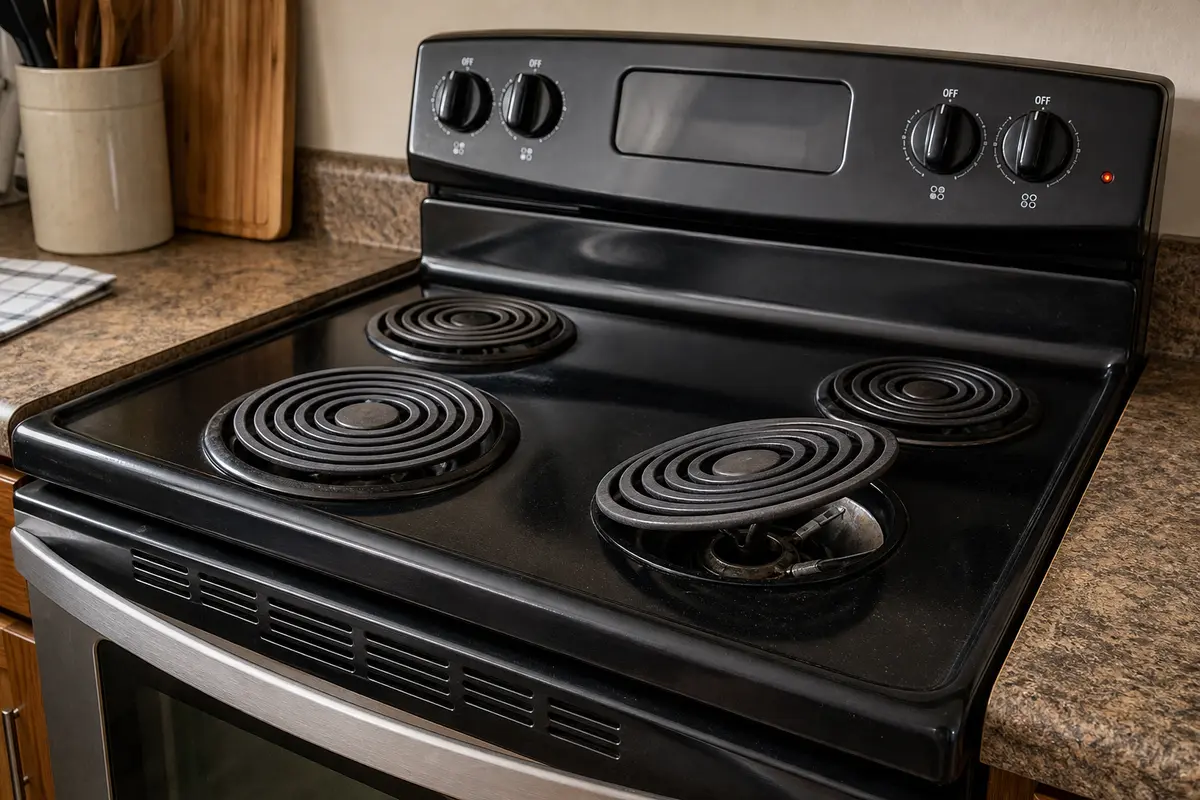

A removable electric coil gives you a clean comparison. With power off, reseat it or swap it with a same-size working burner before pricing switches.

A gas burner needs the cap, ports, spark, and gas path lined up. Dry residue or a crooked cap can keep a good igniter from lighting the burner.

Darkened terminals or a loose plug-in socket move the repair away from the coil itself and toward the receptacle or burner switch.

Before you buy anything

Copy the full model number from the range label before shopping. Buy a surface element only after a same-size swap. Buy a receptacle after heat damage or a known-good coil fails in that spot. Use gas ignition parts only after cap, port, and spark checks; stop if gas odor lingers.

Jump to: Tools You May Need · Replacement Parts

What is probably happening

Usually the clue is local. One GE Profile burner can stay cold while the rest of the range works because that burner has its own element, cap, ports, igniter path, receptacle, and switch.

Removable electric coil: the element may be loose, burned open, or damaged at the terminal end. A same-size swap is the cleanest homeowner comparison.
Electric receptacle or switch: if a known-good coil still will not heat in the same spot, the fixed side of that burner moves up the list.
Glass-top radiant burner: the element, limiter, or switch can fail, but cracked glass or burned wiring is a stop point rather than a kitchen-table repair.
Gas burner cap and ports: boilover residue, a wet cap, or a cap that sits off-center can block the flame path even when you hear clicking.
Gas ignition hardware: missing spark, weak spark, or spark landing away from the burner head matters more after the cap and ports are clean and dry.

What not to do

A cold burner invites expensive guessing. Slow down at the places where the repair path changes.

Do not order a control board because one burner is cold. That is rarely the first part to price for a single-burner failure.
Do not keep clicking a gas burner to see if it eventually lights. A couple of short tries is enough; lingering gas smell ends the test.
Do not poke gas ports with a nail, drill bit, or metal pick. Enlarged ports can change the flame pattern.
Do not swap electric coils while the range is powered.
Do not ignore blackened terminals, melted insulation, or arcing. Leave power off and call appliance service.
Do not assume a GE Profile part fits by photo. Match the model number and burner position.

Step-by-step fix

Work from the top of the cooktop inward. These checks do not require live-voltage testing or opening gas tubing.

Step 1: Confirm the scope. If the oven and other burners work, keep the diagnosis on the one cold burner. If several burners are out, leave this single-burner path.
Step 2: For a removable electric coil, turn power off, lift the coil gently, reseat it, and look for pitting, looseness, or a burned terminal end.
Step 3: Compare with a same-size working coil if your cooktop uses plug-in elements. Restore power only after the coil is seated.
Step 4: For a gas burner, let it cool, remove the grate and cap, wash residue with mild soap and water, dry everything, clear visible debris with a wooden toothpick, and center the cap.
Step 5: Try the burner briefly and watch the clue. Delayed ignition, no spark, spark in the wrong place, arcing, or lingering gas smell means stop.
Step 6: Decide by result. Replace only the part that the comparison or visible damage supports; call service when the failure stays in the fixed burner position.

What you see	What it usually means	What to do next
Electric coil fails in another same-size spot.	The coil element is the likely failed part.	Match the element by model, size, terminal style, and burner position.
Known-good coil stays cold in the same spot.	The receptacle, wiring, or burner switch is more likely.	Leave power off if there is heat damage. Service may be the safer path.
Gas burner lights after cleaning and cap alignment.	Residue, moisture, or cap seating blocked ignition.	Let parts dry fully after future cleanups and keep ports clear.
Gas burner clicks but spark misses the burner head.	Igniter alignment or ignition hardware needs closer diagnosis.	Stop before disassembly if you are not trained for gas cooktop service.

Electric burner clues

The useful electric clues are visible: how the coil sits, whether the terminal end is damaged, and whether the failure moves with the removable element.

A coil that sits crooked or loose may not make solid contact. Reseat it with power off and make sure the drip bowl is not holding it up.
A blistered coil, split spot, or burned terminal supports replacing the surface element after the same-size comparison agrees.

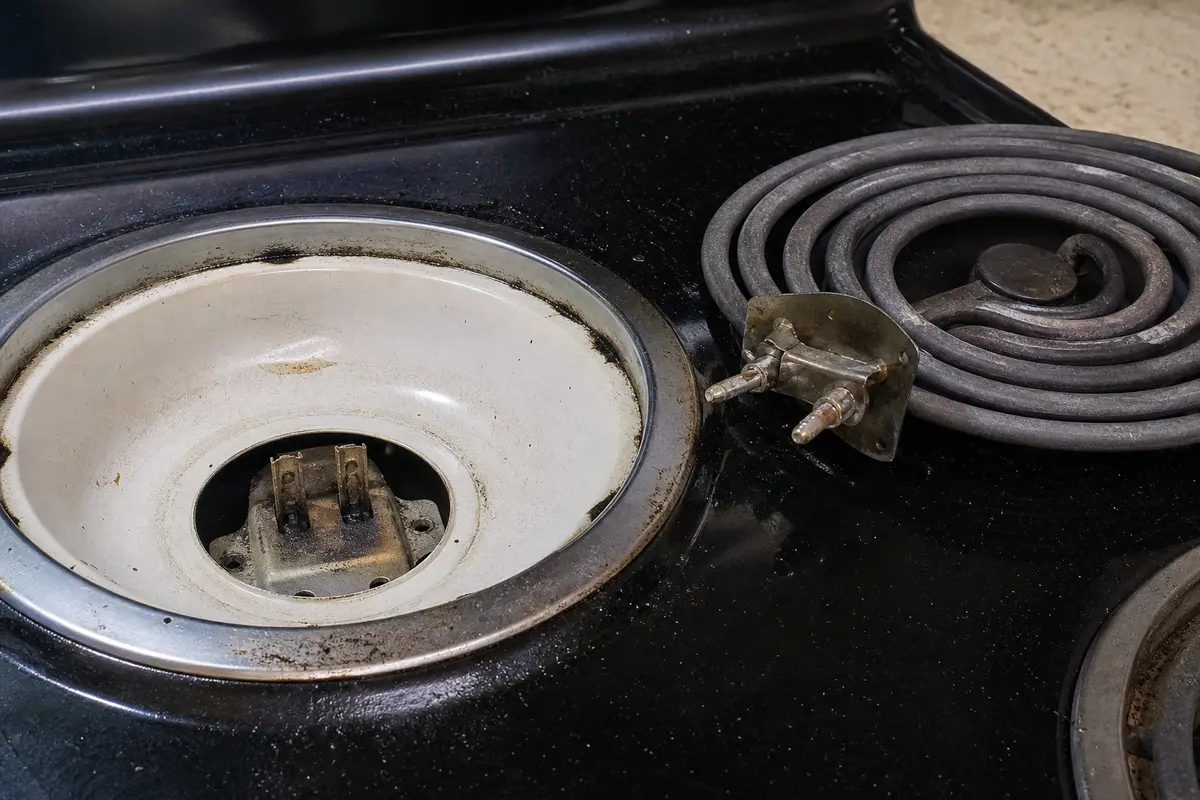

A blackened receptacle or loose socket can ruin a new element. Watch for darkened metal, melted plastic, or a hot electrical smell.
A glass-top burner that never glows is not checked the same way as a plug-in coil. Do not pry under glass or keep using cracked glass.
Some newer GE coil burners cycle by design when Sensi-Temp technology is present. Cycling is different from a burner that never heats at all.

Gas burner clues

Look first at the cap, ports, and spark. Clean and dry the parts, align the cap, then compare the spark to a working burner.

Look for a wet cap after cleaning. Dry the cap and burner head completely before trying again.
Look for ports blocked by boilover residue. Clear visible dry debris with a wooden toothpick and do not enlarge the holes.
Watch whether the cap rocks or sits off-center. Set it flat and centered before blaming the igniter.
Compare spark location with a working burner. A normal click with no flame after cleaning points toward hidden blockage, spark location, or gas delivery at that burner. Stop if gas odor lingers after the knob is off.
Compare no-click behavior with the other burners. If only one burner has no spark, appliance service on that ignition path or switch circuit starts making sense.

Tools You May Need

These tools support inspection and light cleaning only. They are not permission to work on live wiring or open gas tubing; call a licensed appliance tech for that work.

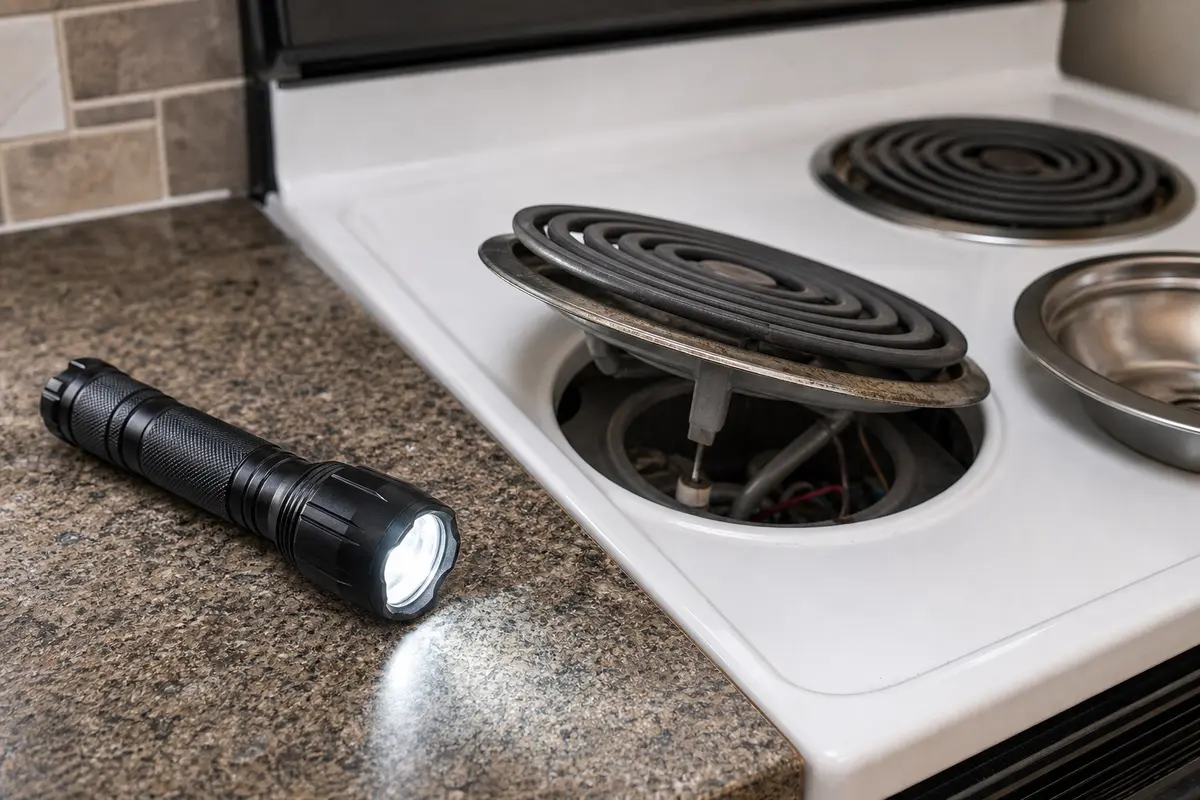

Inspection flashlight

Helps when: Use it to see burner ports, coil terminals, receptacle darkening, and the model-number label without taking the range apart.

Skip it when: Skip it if the next step requires reaching into live wiring or moving gas connections; call a licensed appliance tech instead.

Compare inspection flashlights on Amazon

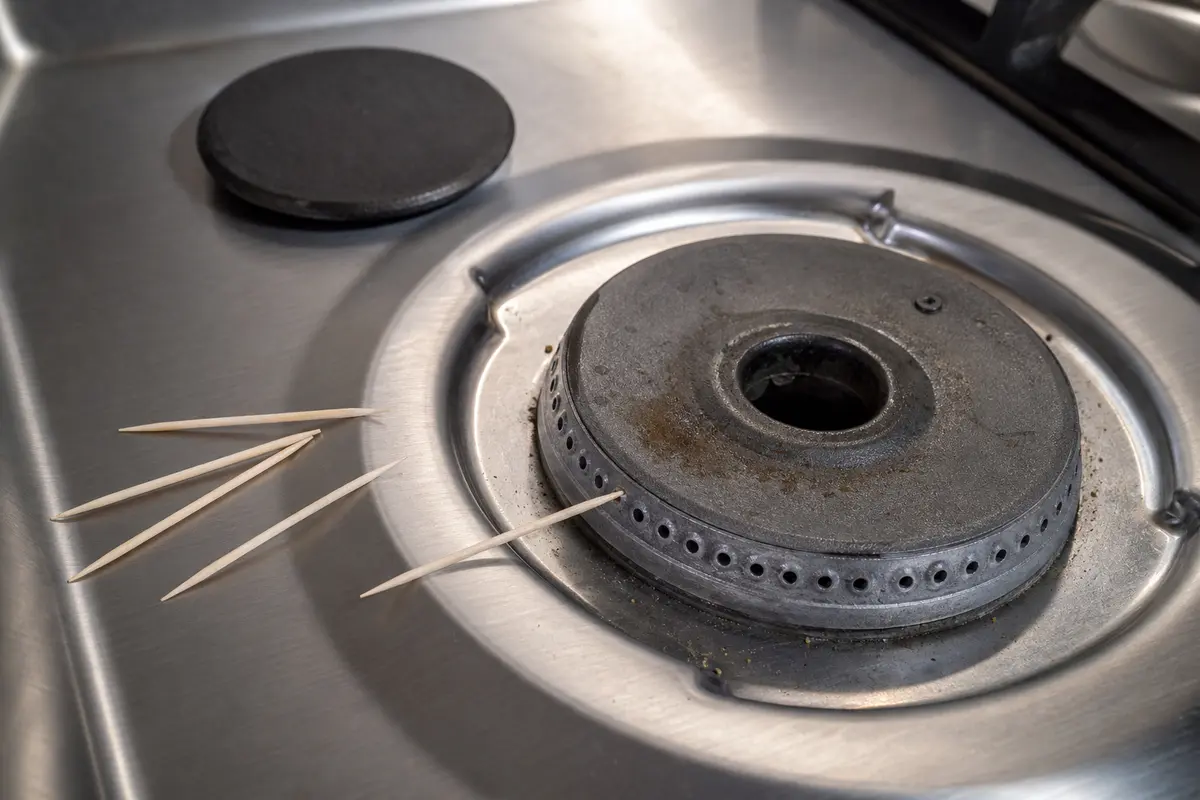

Nonmetal cleaning picks

Helps when: Use a wooden toothpick or soft nonmetal pick to clear visible dry debris from gas burner ports while the burner is off and cool.

Skip it when: Skip metal picks, drill bits, needles, or anything that can scrape or change the port size.

Compare nonmetal cleaning picks on Amazon

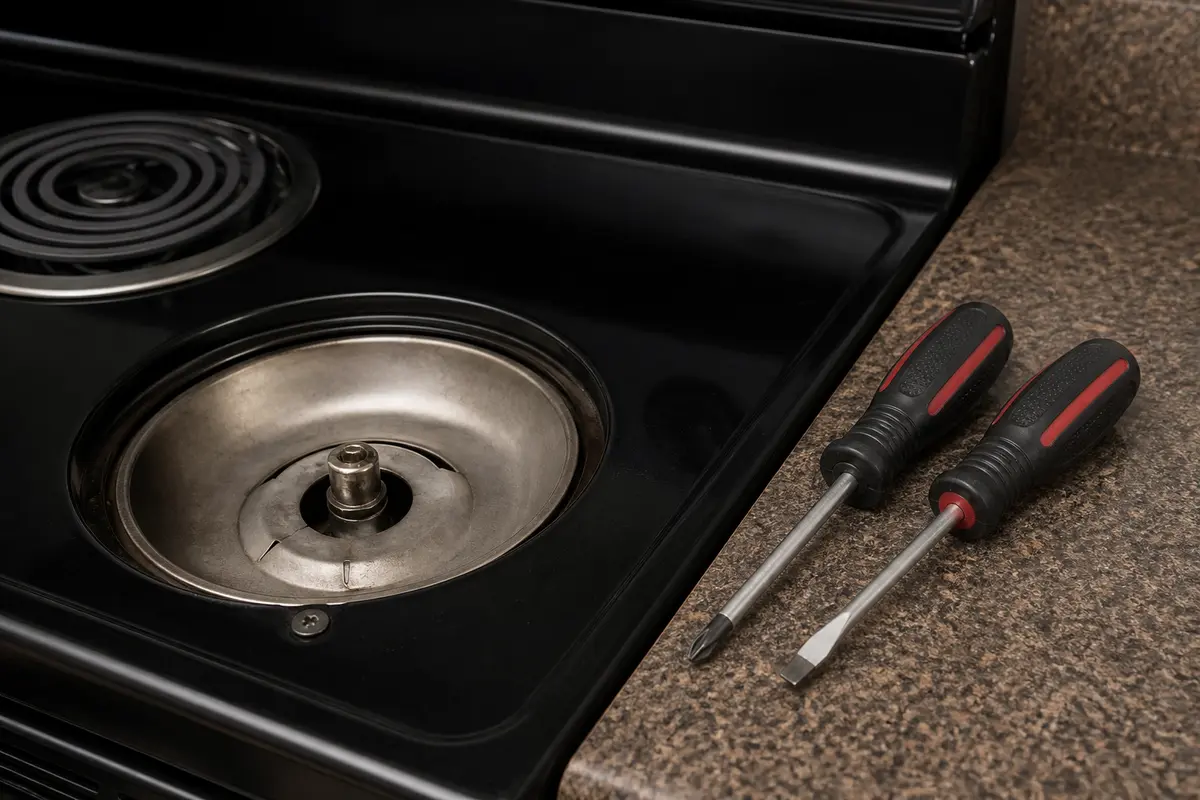

Screwdriver set

Helps when: Useful only when the manual allows a cooled, powered-off cover or trim piece to be removed for inspection.

Skip it when: Skip it if the work would expose wiring, switches, gas tubing, or anything you are not comfortable servicing.

Compare screwdriver sets on Amazon

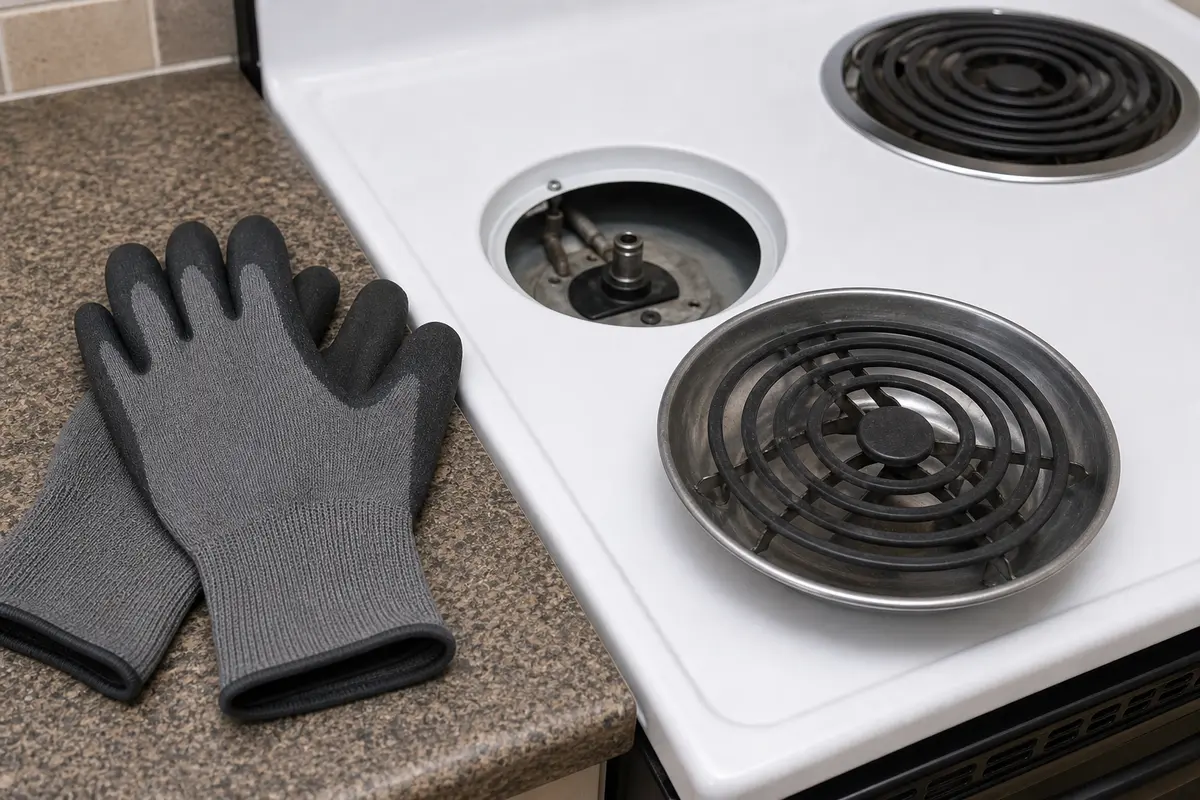

Work gloves

Helps when: Protect your hands from rough grates, burner caps, drip bowls, and sharp sheet-metal edges during cooled inspection.

Skip it when: Skip the repair instead if gloves are needed because parts are still hot, sparking, or damaged.

Compare work gloves on Amazon

As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.

Replacement Parts

Parts make sense after the burner tells you where the failure lives. GE Profile ranges use model-specific elements, receptacles, switches, igniters, and burner parts; a lookalike part can still be wrong.

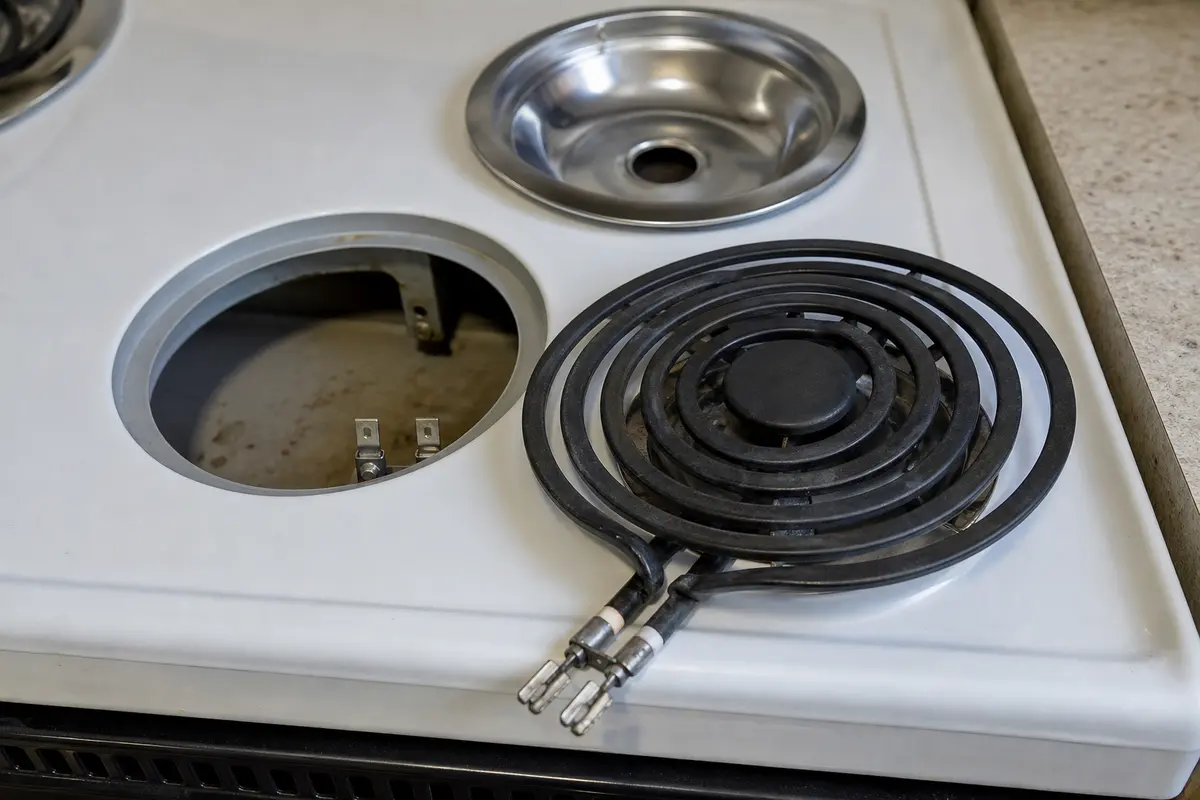

Range surface element

Helps when: Buy it when a removable coil fails in another same-size burner position or has visible blistering, splitting, or burned terminals.

Skip it when: Skip it when a known-good coil also stays cold in that original burner position.

Compare range surface elements on Amazon

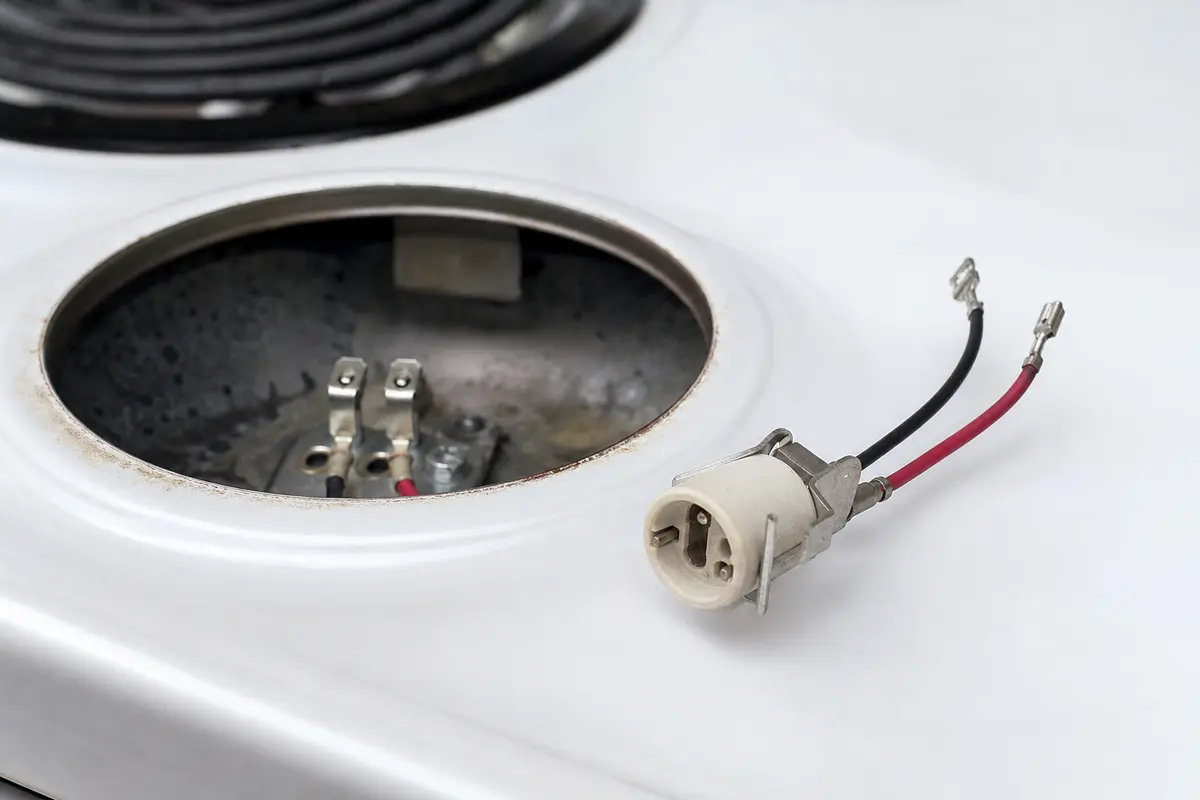

Surface element receptacle

Helps when: Compare this part when the plug-in socket is loose, charred, melted, or will not heat a known-good coil.

Skip it when: Skip it for glass-top radiant burners or when the coil itself clearly failed the same-size comparison.

Compare surface element receptacles on Amazon

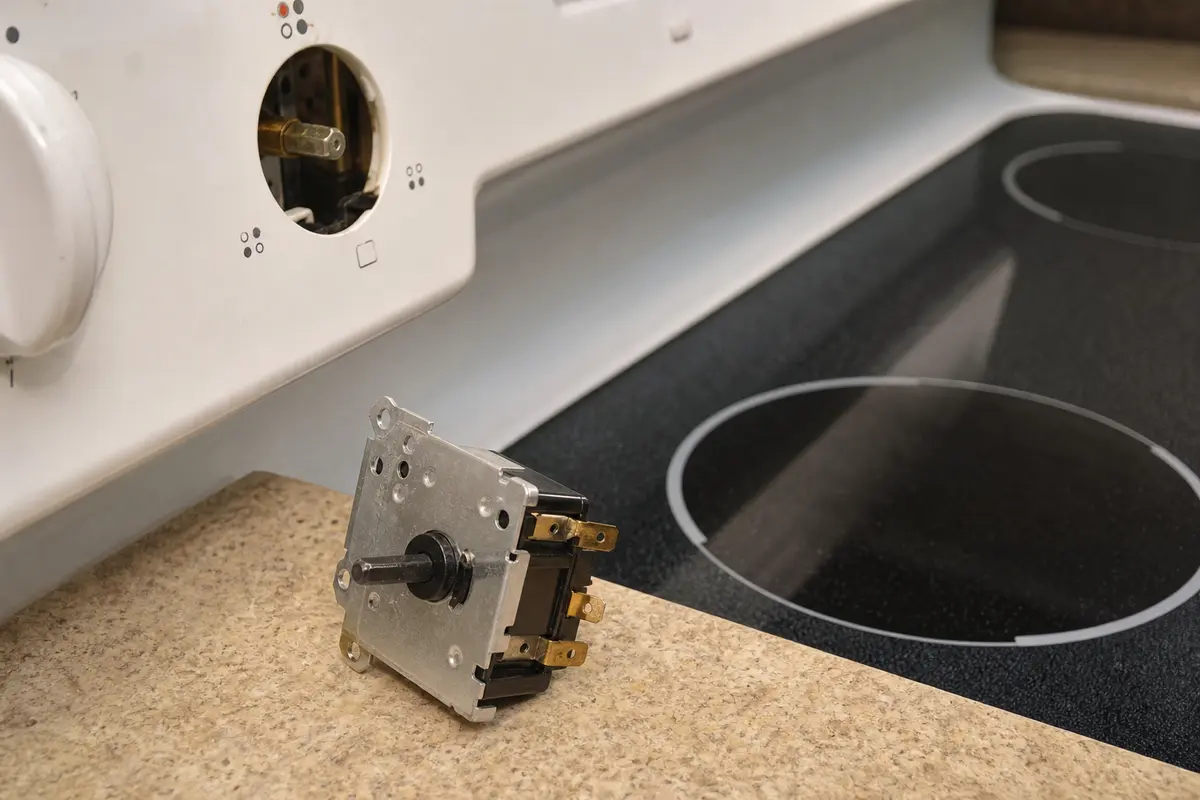

Range burner switch

Helps when: Consider it after the element and receptacle check out but the same electric burner position still stays cold.

Skip it when: Skip it when the failure follows a removable coil or there is visible receptacle heat damage.

Compare range burner switches on Amazon

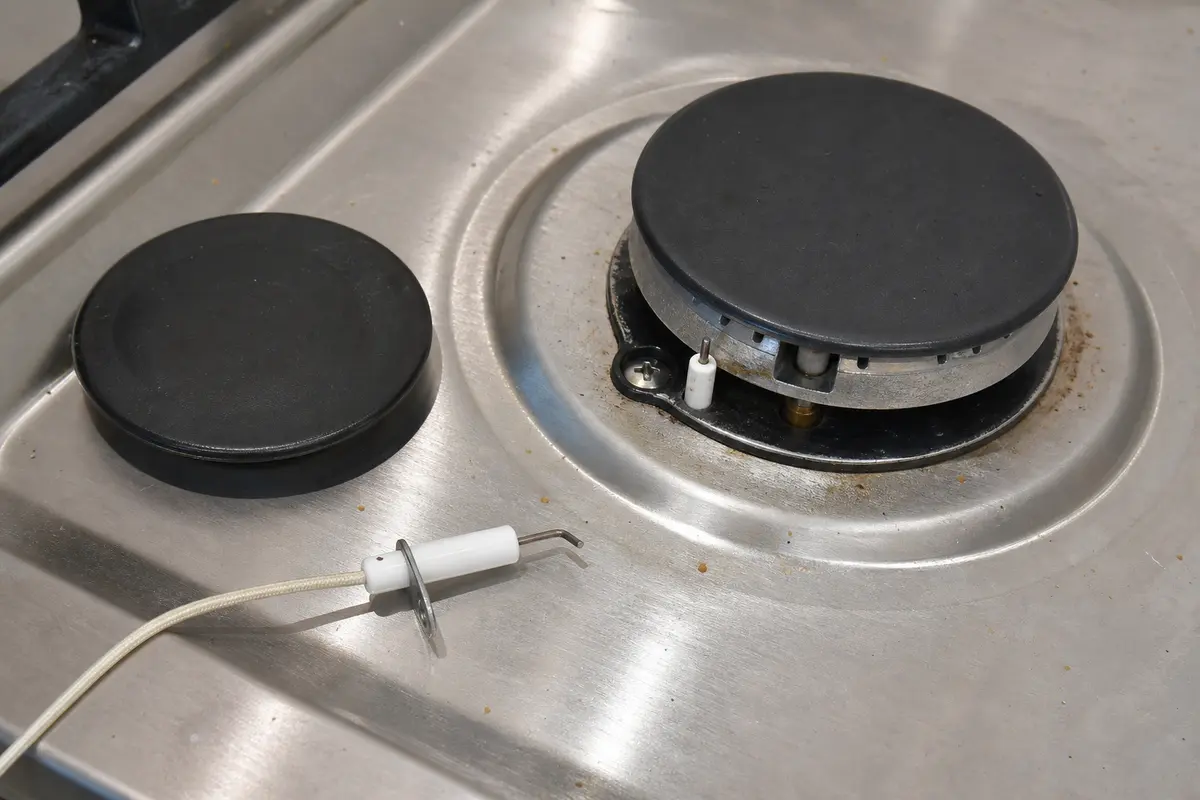

Gas burner igniter

Helps when: Compare it only after the cap is centered and dry, the ports are clean, and spark is missing or off target.

Skip it when: Skip it when cleaning, drying, or reseating the burner cap restores normal flame; call a licensed appliance tech if gas odor lingers.

Compare gas burner igniters on Amazon

As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.

FAQ

Why is only one GE Profile stove burner not heating while the others work?

One burner by itself usually points to that burner position, not the whole range. On electric models, look at the coil, receptacle, and burner switch. On gas models, start with the cap, ports, spark, and ignition path.

How do I tell if a removable electric coil element is bad?

With power off, compare it with another same-size working coil. If the no-heat symptom follows the coil, the element is the likely failed part. Burned terminals, blistering, or a split coil support the same call.

What if a known-good electric coil still will not heat in that spot?

Then the fixed burner position moves up the list. Look for a loose or charred receptacle first. If the receptacle looks clean and tight, the burner switch or wiring needs deeper diagnosis.

Why does my GE Profile gas burner click but not light?

The cap may be wet or off-center, or the burner ports may be partly blocked by boilover residue. Clean, dry, and reseat the parts first. If it still clicks without flame, watch where the spark lands. If gas odor lingers after the knob is off, stop and call a licensed appliance tech.

Should I keep trying to light a gas burner if it will not ignite?

No. A couple of short tries is enough. If you smell gas after turning the knob off, stop testing, ventilate if you can do that safely, and call the gas utility or a licensed pro.

Can a bad burner switch cause one electric burner to stay cold?

Yes. A burner switch becomes more likely when the element and receptacle check out but that same burner position still will not heat. Match any replacement switch by exact model and burner position.

What if my GE Profile glass-top burner is not heating?

Glass-top radiant burners do not give you the same easy coil swap. Look for cracked glass, a zone that never glows, or a burner that heats on only one setting. Stop at cracked glass, arcing, or burned wiring.

Why does the burner heat weakly instead of staying completely cold?

Weak or uneven heat can come from cookware contact, a radiant zone issue, a loose electric connection, or a gas cap and port problem. If a GE coil burner cycles, also check whether your model uses Sensi-Temp technology.

What does it mean if the breaker trips when I turn on the burner?

Stop using that burner. A breaker trip, arcing, burned smell, or melted wiring is not a normal surface-element clue. Leave power off and call appliance service or a licensed electrician if the circuit itself is involved.

Do GE Profile burner parts have to match the exact model number?

Yes. Surface elements, receptacles, switches, igniters, and burner caps can look similar but fit different ranges. Use the model tag and the parts diagram before ordering.
