Kinetico Water Softener Brine Tank Full of Water? Check the Drain First

A Kinetico brine tank full of water usually means the softener is not drawing brine during regeneration or cannot discharge through the drain. Use bypass if the level is rising, then check the drain line, brine float, and brine line before parts.

The best first clue is outside the control head: a kinked drain route, stuck float, salt bridge, or brine-line air leak.

Some bottom water is normal. Water above the salt, water near the rim, or no draw-down after a cycle is the problem.

Don’t start with: Do not tear into the Kinetico valve head or buy a control assembly while the brine tank is high. First confirm the float moves, the drain route is open, and the brine line is not kinked, cracked, or loose.

Water is near the rimSet the softener to bypass or shut off its feed water, protect the floor, and stop before opening tubing under pressure.

Water is high but stableLook for a kinked drain route, salt jam around the float, or a loose brine-line fitting before adding more salt.

Do this first

Use bypass or shut off the feed water if the brine tank is still rising or close to spilling.
Keep brine water away from outlets, transformers, extension cords, and finished flooring.
Use a bucket and towels before loosening any accessible tubing; brine spreads fast and leaves salt residue.
Do not force brittle plastic fittings, brine-well parts, or a stuck bypass handle.
Stop if water is leaking from the softener head, a tank is cracked, or a fitting starts leaking worse when touched.
Call a Kinetico dealer or water-treatment pro when the external drain, float, and brine-line checks all pass but the tank still will not draw down.

Last reviewed: 2026-04-17

60-second brine tank sort

Is the water level still rising?

Use bypass, protect the floor, and treat this as an active overfill before doing any diagnosis.

Is water sitting above the salt or regenerant?

Look for a salt bridge or jammed float first. Kinetico salt guidance expects salt or regenerant above normal water, not a tank that keeps filling.

Did the level stay high after regeneration?

Watch the drain route and brine line. Weak drain flow, a kink, or an air leak can stop brine draw.

Does the float move freely?

A float that scrapes, hangs, or sits in salt sludge is a better first clue than the control head.

Are drain, float, and brine line all clean?

Now the diagnosis moves toward internal valve seals or Kinetico dealer service, not random parts.

Start at the tank, float, and drain route

A full brine tank is easier to sort when you can see the water level, the brine well, and the drain path. These are the checks that come before the control head.

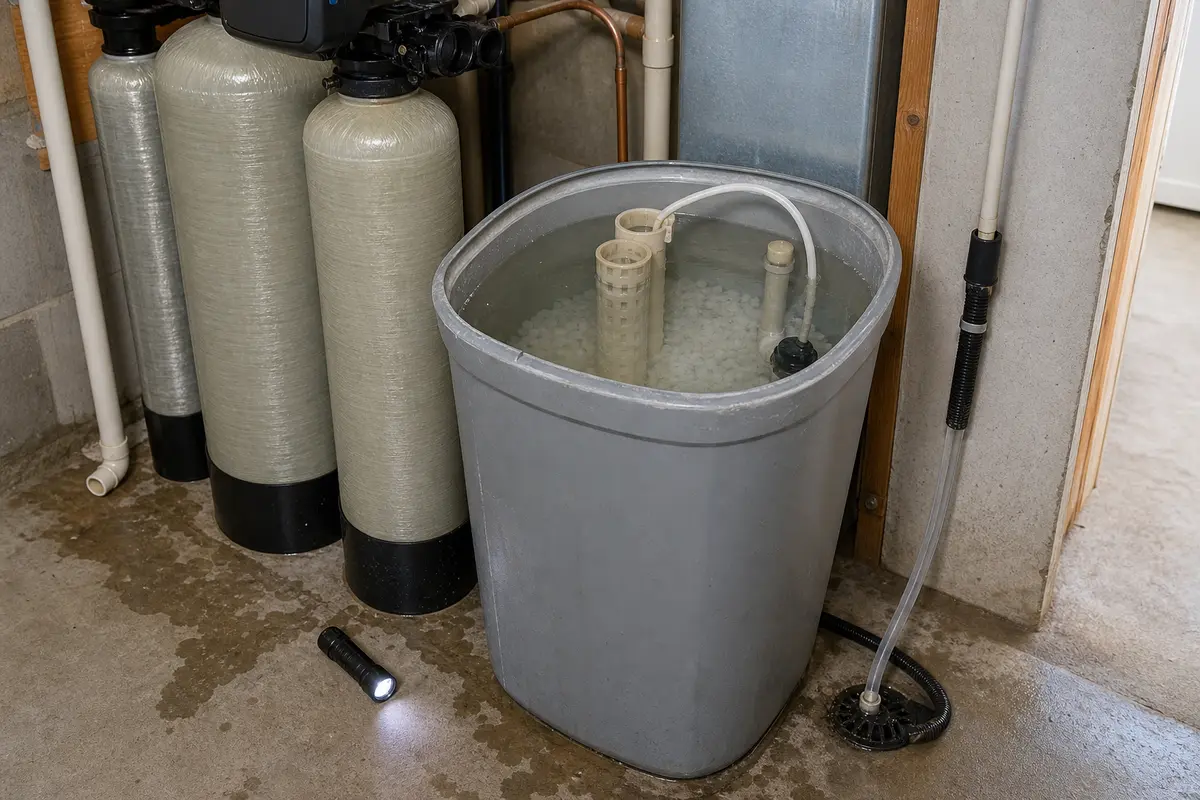

Kinetico style water softener beside an open brine tank with high water and the drain route visible — Start with the whole setup. High water, the brine well, the softener head, and the drain route should all be part of the first look.

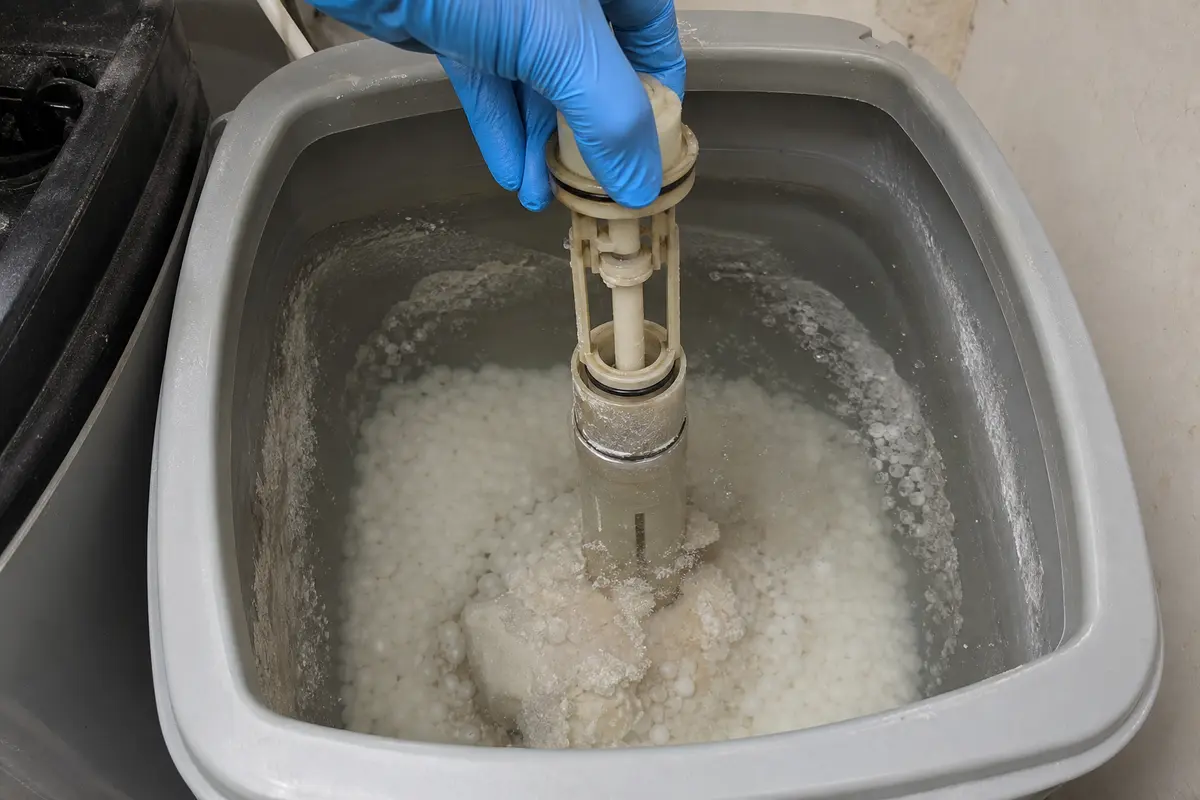

Kinetico style brine tank float assembly being lifted from high brine water and salt crust — A float that sticks in salt crust or sludge can keep the tank from controlling water correctly.

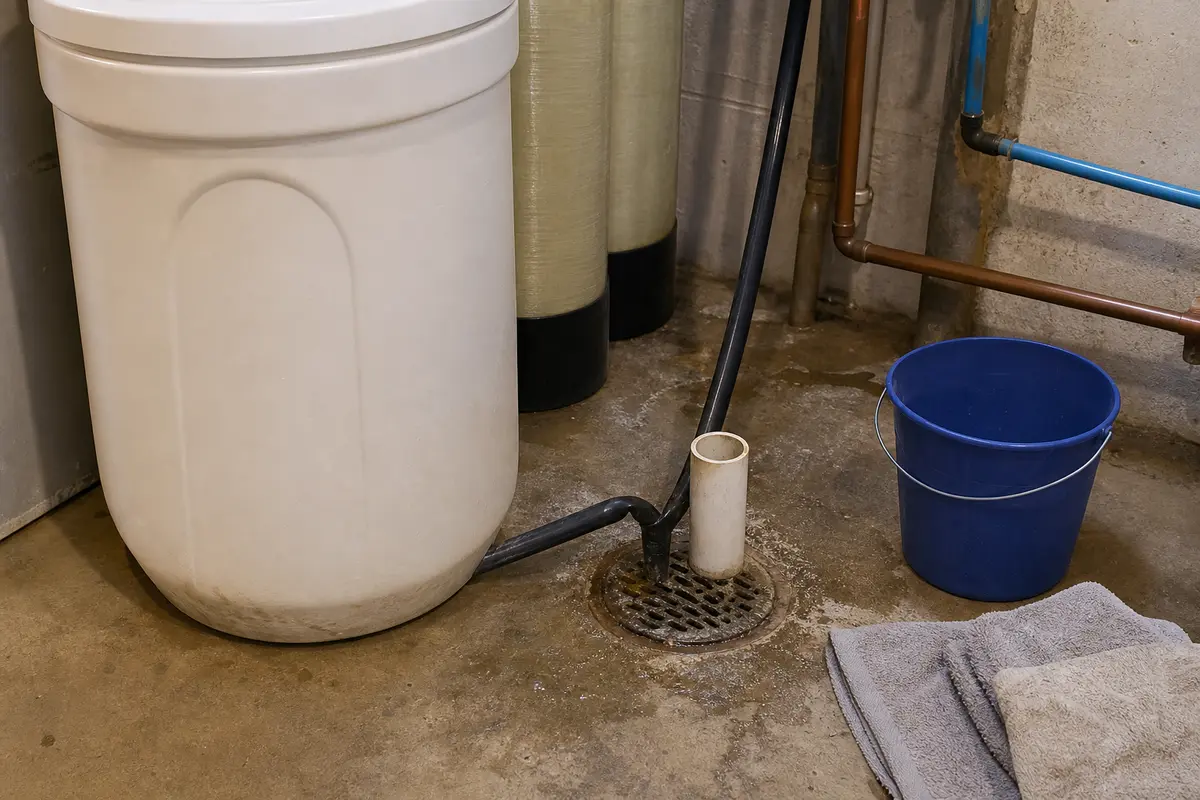

Kinetico style water softener drain line kinked near a floor drain with cleanup towels nearby — A pinched drain hose or poor drain route can leave the unit unable to move water out during regeneration.

Before you buy anything

Copy the exact Kinetico model and serial numbers. Then write down the water level, drain flow, float movement, brine-line condition, and whether the tank draws down during a watched cycle. Kinetico parts and adjustments are model-sensitive, and many control-head repairs belong with a dealer.

Jump to: Step-by-step fix · Tools You May Need · Replacement Parts

What is probably happening

A brine tank that stays high is usually a water-movement problem. If the level sits above the salt or does not drop during regeneration, check whether brine is being pulled through the line and whether discharge can leave through the drain path.

Restricted drain route: a kinked, pinched, plugged, or poorly routed drain hose can make a regeneration act wrong and leave the brine tank high afterward.
Float or brine valve stuck in the well: salt crust, mushy salt, or debris can hold the float where it cannot shut off or draw correctly.
Salt bridge over water: the top can look full of salt while a wet hollow pocket hides below. That can trap the float area and keep brine from forming or moving normally.
Brine-line air leak or blockage: a cracked tube, loose fitting, salt crystal, or sharp bend can keep the softener from pulling a steady brine draw.
Internal valve issue: worn seals or a control-head problem moves up only after the tank, drain, float, and brine line stop explaining the symptom.
A good clue is timing. Water that rises while idle points toward fill control or leakage; water that never drops during regeneration points toward drain, suction, brine line, or internal valve trouble.

What not to do first

A common costly detour starts inside the Kinetico head before the outside clues have had a chance to speak.

Do not add a bag of salt just because you can see water. Add salt only when the tank is low on regenerant and the level is not actively rising.
Do not use rock salt, harsh cleaners, bleach, drain chemicals, or mixed cleaners in the brine tank.
Do not force the brine float, tubing clips, compression fittings, or bypass handle.
Do not assume the control head failed because the tank looks overfilled. A kinked drain hose can produce the same complaint.
Do not disconnect hidden or seized lines. A simple overfill diagnosis can become a plumbing leak fast.
Do not buy a generic seal kit or float assembly without matching the exact Kinetico model and confirming the failed area.

Step-by-step fix

Work from the outside in. These checks keep water controlled and leave model-specific valve work for the point where it actually makes sense.

Step 1: Stabilize the tank. Set the softener to bypass or shut off its feed water when the brine tank is near the rim, still climbing, or already spilling.
Step 2: Mark the water level. Use tape on the outside or a clear photo, then wait long enough to see whether the level creeps up while the unit is not regenerating.
Step 3: Open the brine well. Lift the cover, shine a light down the well, and look for salt crust, sludge, a crooked float rod, or parts rubbing the wall.
Step 4: Move the float gently. It should rise and fall without scraping or hanging. Clean only loose salt sludge and crust you can reach with warm water and a rag.
Step 5: Trace the drain route. Follow the drain line from the softener to the drain point and look for kinks, crushed sections, plugged air gap, sagging hose, or a hose end sitting where it cannot discharge cleanly.
Step 6: Inspect the brine line. Look for cracks, loose fittings, white salt trails, rubbing damage, or a bend right where the tube leaves the tank or enters the head.
Step 7: Watch one cycle only if your model instructions allow it. If drain flow is steady and the brine level drops, the outside checks helped. When drain flow looks good but the level never falls, move the call toward internal valve service.

Read the tank level

The level pattern tells you where to spend the next minute. Use the result before touching another part.

What you see	What it usually means	Next move
Water is near the rim or still rising.	Active overfill or uncontrolled fill.	Use bypass and protect the floor before more checks.
Float scrapes, hangs, or sits in salt sludge.	Float or brine valve restriction.	Clean loose sludge, free the float gently, then recheck level control.
Drain flow is weak, absent, or the hose is kinked.	Restricted discharge path.	Correct the visible drain route and watch the next regeneration.
Drain flow looks strong but brine level never drops.	No brine draw or internal valve/seal trouble.	Check brine-line fittings, then plan model-specific service if the line is sound.
Level drops during regeneration and stops at a normal resting level.	External blockage or float problem was likely corrected.	Keep watching through the next day for a fresh rise or hard-water return.

Kinetico details that change the call

A Kinetico page should not read like a generic cabinet-softener manual. The brand details mostly affect parts and stop points.

Kinetico brine tanks vary by system, but the homeowner clues are still visible: water above the salt, a stuck float area, a kinked drain, or no draw-down during regeneration.
Kinetico salt guidance says visible water above the regenerant usually means the tank is low. Before adding salt, make sure the level is not near the rim, still rising, or unchanged after regeneration; those clues point back to the float, drain route, or brine line.
Many Kinetico systems are dealer-installed and model-specific. Write down the model and serial numbers before asking for parts or service.
A softener can seem to cycle while still failing to pull brine. Watch the brine tank level and drain discharge instead of trusting sound alone.
Internal valve-head work deserves caution. If you watch a cycle and see steady drain flow while the brine level never drops, stop at the control head. Write down the model and serial numbers, then call a dealer instead of buying lookalike parts.

Tools You May Need

These are for basic inspection and spill control. They are not permission to force fittings or open the Kinetico head.

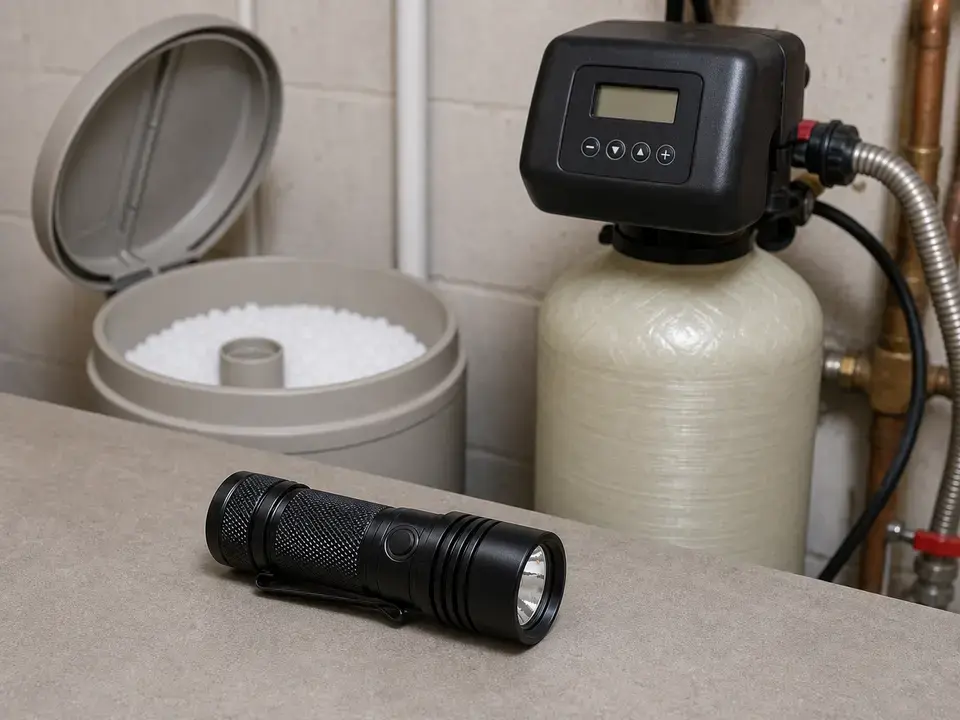

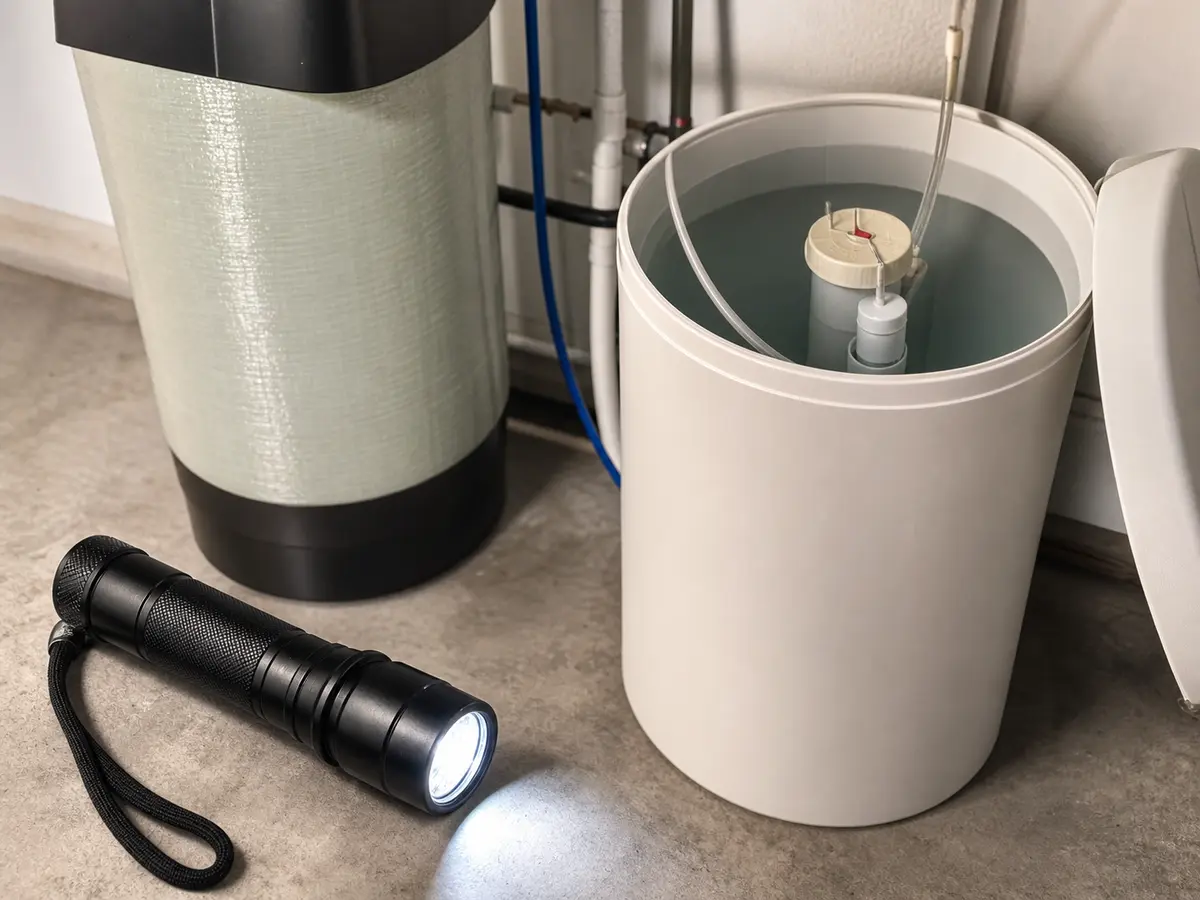

Inspection flashlight

Helps when: The water level is high and you need to see salt crust in the brine well, float movement, or a kink behind the softener.

Skip it when: Water is already near electrical equipment or the check requires opening a powered control area.

Compare inspection flashlights on Amazon

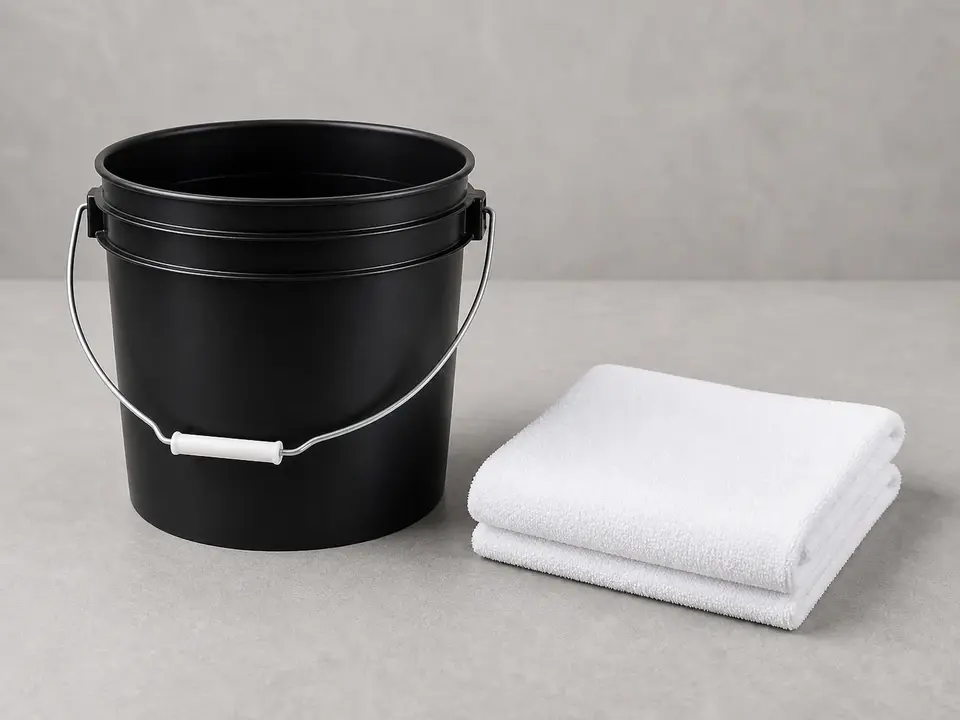

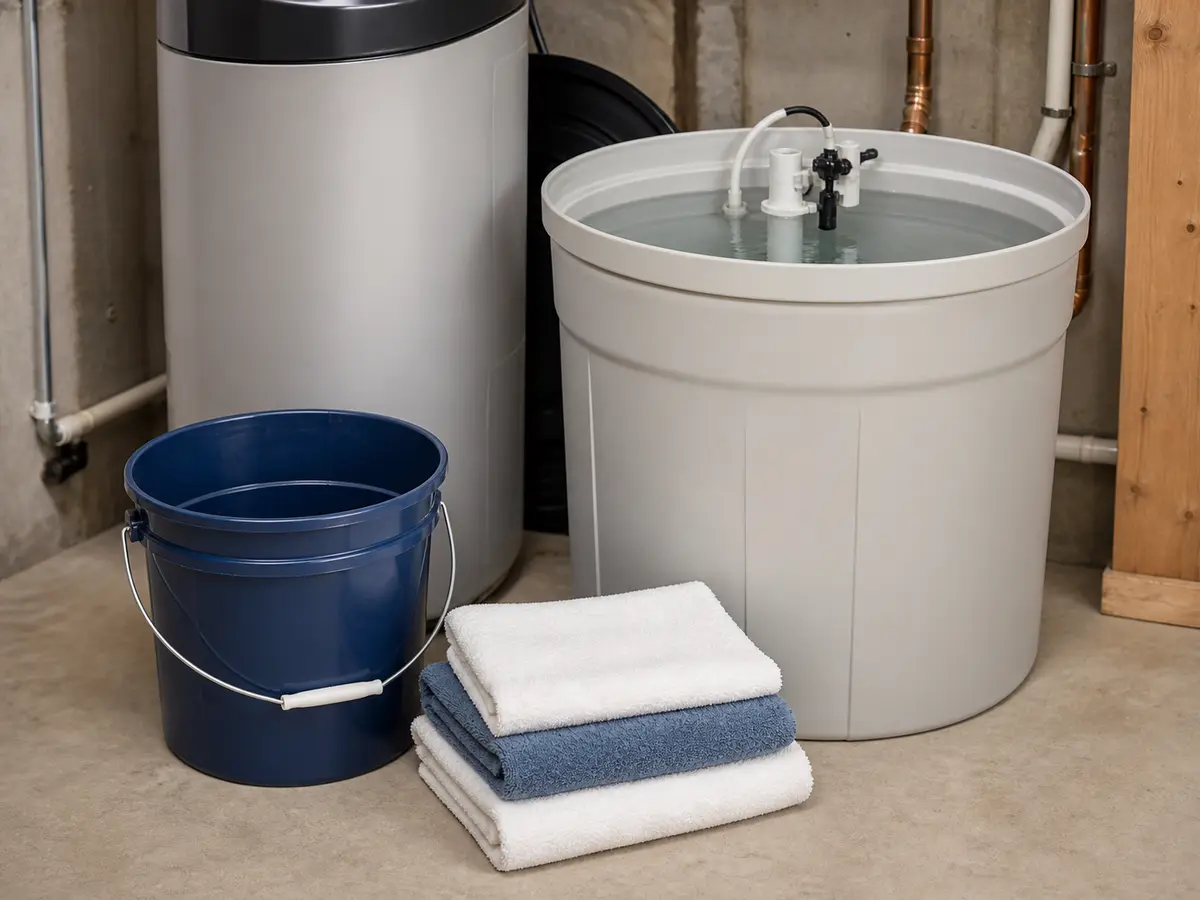

Bucket and towels

Helps when: You are catching a small spill, drying brine from the floor, or keeping salt water away from nearby finishes.

Skip it when: Water is spraying, the tank is actively overflowing, or a cracked fitting needs service now.

Compare cleanup supplies on Amazon

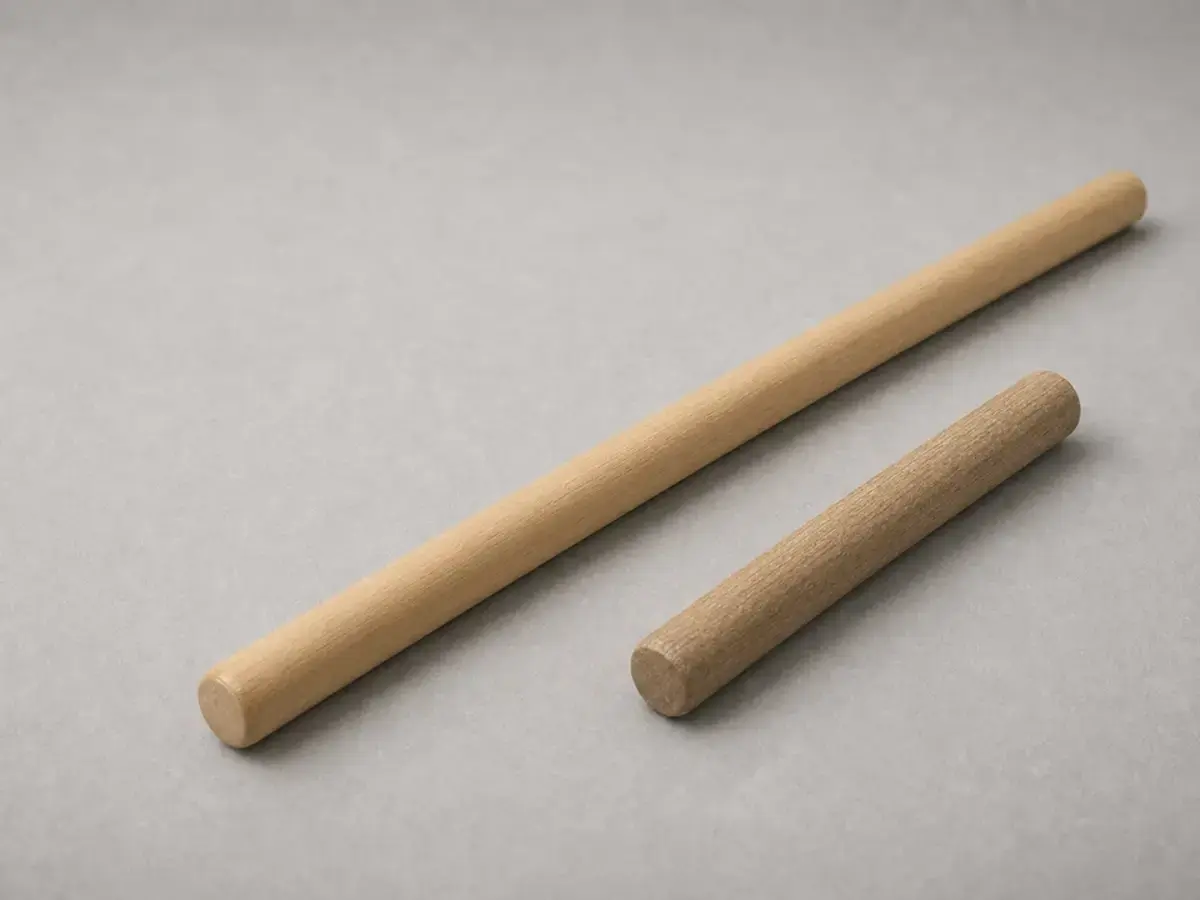

Blunt wooden handle

Helps when: You need to probe for a salt bridge without reaching into brine or striking the tank wall.

Skip it when: The float assembly is exposed, loose, cracked, or positioned where a stick could damage it.

Compare wooden handles on Amazon

As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.

Replacement Parts

Parts come after diagnosis. Kinetico parts are model-sensitive, and some repairs are better handled through a dealer.

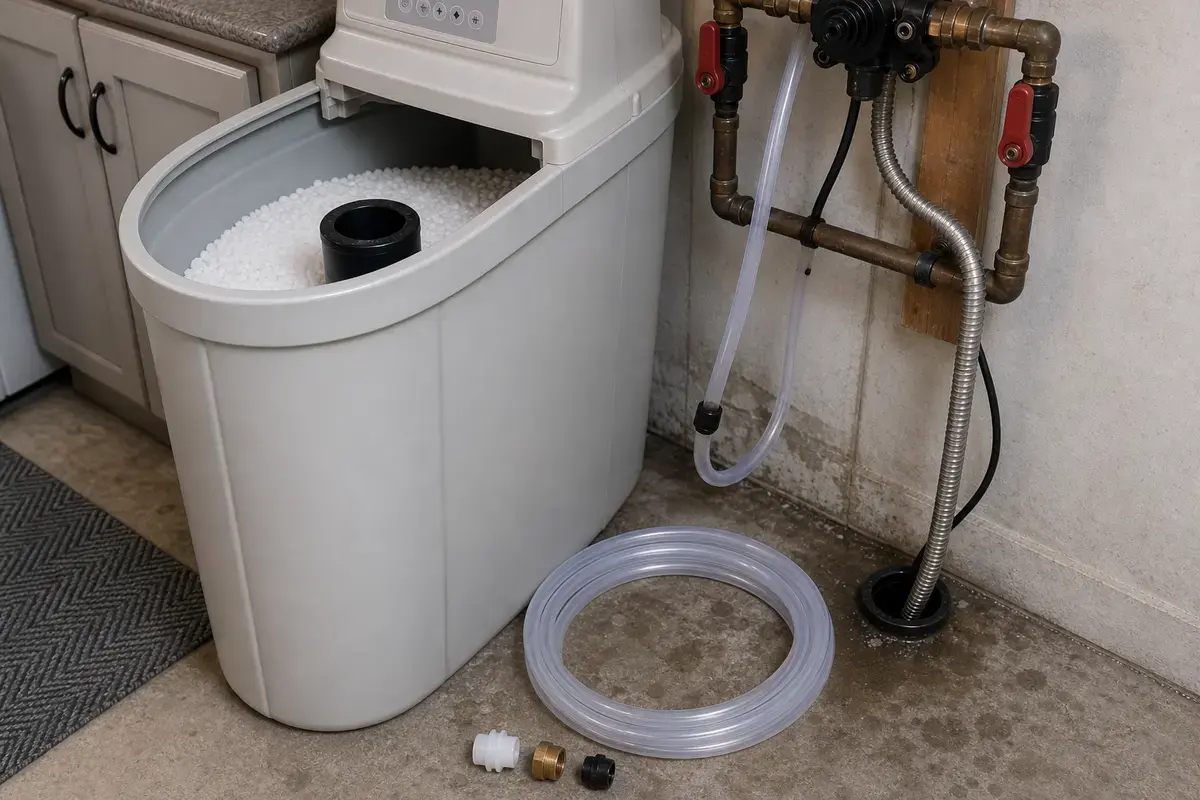

Water softener brine line

Helps when: The tube is cracked, kinked, brittle, loose at a fitting, or leaves salt trails where air can leak in.

Skip it when: Inspection shows the brine line is not cracked, kinked, loose, or leaving salt trails, and the remaining clues point to the float assembly, drain route, or internal valve.

Compare brine lines on Amazon

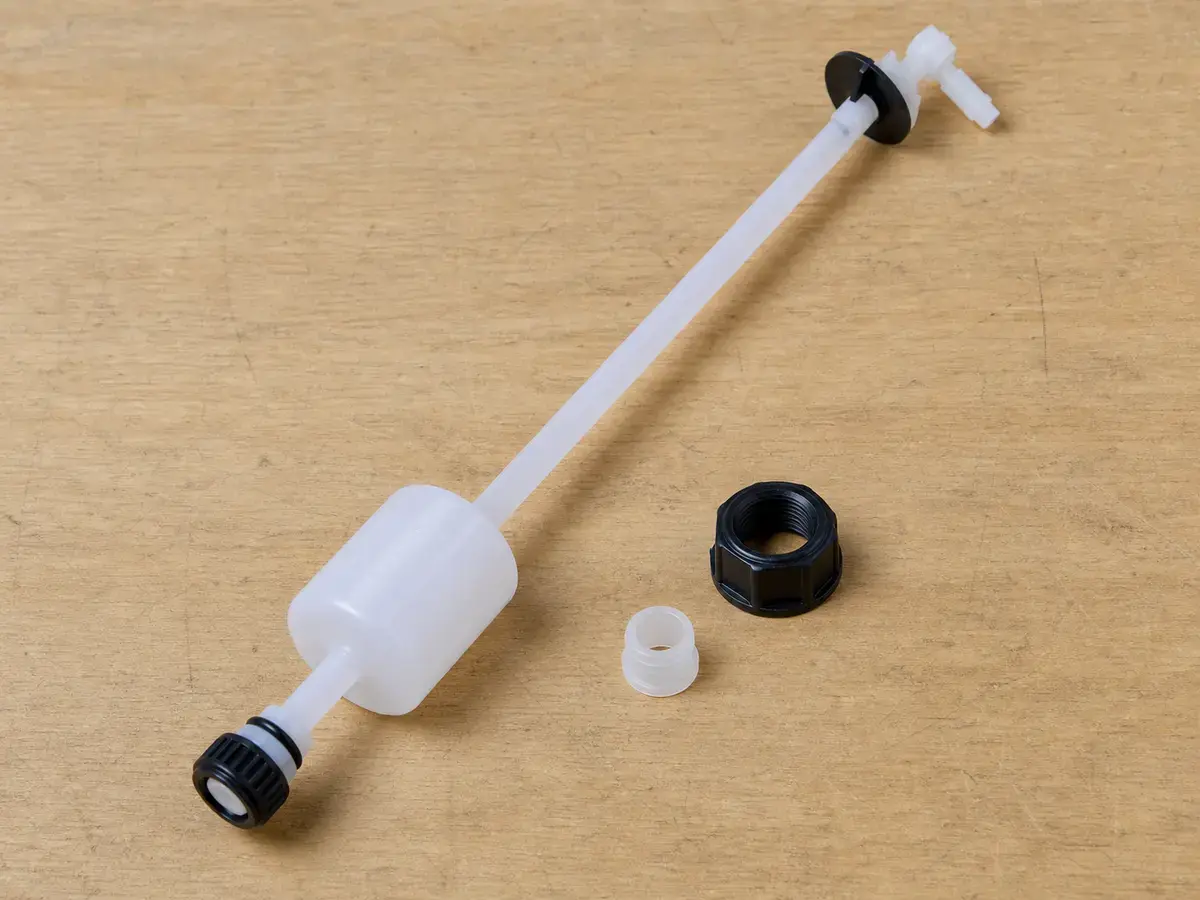

Brine float assembly

Helps when: The float scrapes, hangs, cracks, or will not move after loose salt sludge is cleaned away.

Skip it when: The float moves freely and the tank still does not draw down during regeneration.

Compare brine float assemblies on Amazon

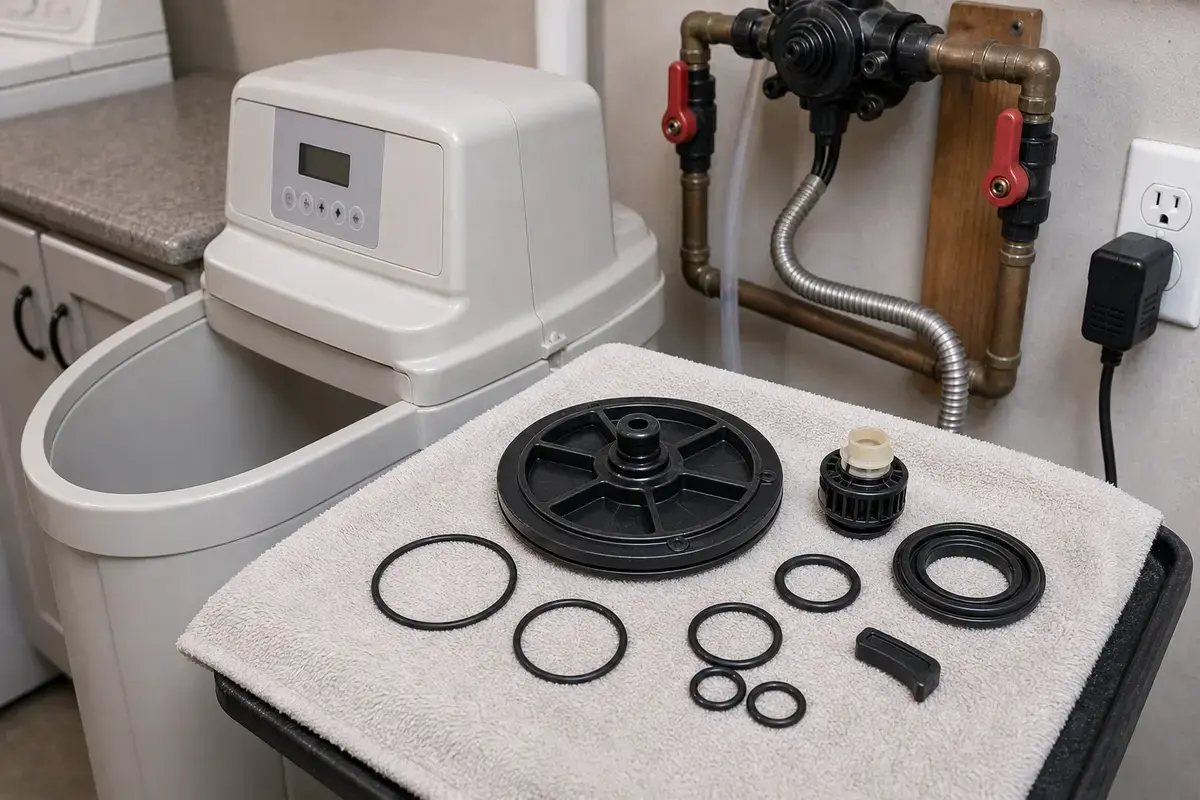

Water softener valve seal kit shown before matching the Kinetico model

Valve seal kit matched to the Kinetico model

Helps when: Drain, float, and brine-line checks are clean but the tank still will not draw down during a watched cycle.

Skip it when: You have not copied the exact model and serial numbers or confirmed the outside checks first.

Compare softener seal kits on Amazon

As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.

FAQ

Is some water in a Kinetico brine tank normal?

Yes. Some water at the bottom of the brine tank can be normal. The concern is water above the salt or regenerant, water near the rim, a level that keeps rising, or a level that does not drop during regeneration.

Why is my brine tank full of water but the softener still seems to run?

A softener can make normal cycling sounds without pulling brine correctly. A restricted drain route, a loose or blocked brine line, a salt-jammed float, or an internal seal issue can leave the tank full.

Should I add salt when I can see water in the Kinetico brine tank?

Add salt or potassium chloride only when the tank is simply low on regenerant and the water level is not rising or near overflow. Do not bury an active overfill under more salt. Sort the float, drain, and brine line first.

Should I empty the brine tank right away?

Empty only enough water to protect the floor. Keep the bucket away from outlets, transformers, extension cords, and other electrical equipment, and stop if a fitting has to be forced. Then check the drain hose, brine line, and float again; removing water only buys time.

When is it probably an internal softener head problem?

Move the diagnosis inside the softener head only after you watch a cycle and see steady drain flow with no brine draw. The float should move freely, the drain route should be open, and the brine line should be intact first. Stop guessing at parts, write down the model and serial numbers, and use model-specific service.

Will a full brine tank cause hard water in the house?

Often, yes. Without a proper brine draw, the resin cannot regenerate correctly. If hard water, spotting, or poor soap lather shows up after the tank stays high, watch the next regeneration for drain flow and a dropping brine level.

Can a kinked drain line make the brine tank overfill?

Yes. The softener has to discharge water during regeneration. A kinked, pinched, plugged, or poorly routed drain line can keep the cycle from moving water where it belongs.

How do I know whether the brine float is stuck?

Open the brine well, then look down the tube with a flashlight before moving anything. Check the float and brine valve by lifting the float gently; it should rise and fall without scraping, hanging, or sitting in salt crust. Stop if the assembly is cracked, brittle, or will not come apart without force.

Can a salt bridge make the tank look full of water?

Yes. A hard salt shelf can hide a wet pocket underneath and trap the float area. Probe gently with a blunt handle, away from the float assembly, instead of jabbing into the tank.

When should I call a Kinetico dealer?

Call when the brine tank is actively overflowing, fittings are seized, or you cannot isolate the softener. Also call after clean drain, float, and brine-line checks still leave no draw-down.

Are Kinetico brine tank parts universal?

No. Match the exact model and serial numbers before ordering anything. Brine lines, float assemblies, seals, and valve parts can look similar while fitting differently.
