Screwdriver set
Use it for: To remove burner caps, burner bases, top panels, or igniter mounting screws.
Shop screwdriver setsCooktop repair
How to Replace a Cooktop Spark Igniter
If one burner will not spark, sparks weakly, or clicks out of place even after cleaning and drying, replacing the cooktop spark igniter is often the right fix.
This repair is usually straightforward, but you need to work carefully around gas parts, sharp metal edges, and ceramic igniter pieces that can crack easily. Start by confirming the igniter is the real problem, then swap it with a matching replacement and test the burner in normal use.
Before you start: Match the igniter shape, mounting style, wire connector, and your cooktop model before ordering.
Safety first
- Disconnect electrical power before opening the cooktop so the igniter cannot fire unexpectedly.
- Work only on a cool cooktop to avoid burns from burner parts and surrounding metal.
- Handle the ceramic igniter gently. It can crack if twisted, dropped, or overtightened.
- Watch for sharp sheet metal edges under the cooktop and wear gloves if needed.
- If you notice a persistent gas smell, stop and do not keep testing the burner.
Tools you may need
Nut driver set
Use it for: Some cooktops use small hex-head screws or nuts to hold burner parts and brackets.
Shop nut driver sets
Needle nose pliers
Use it for: To pull wire connectors gently and help route the new igniter wire.
Shop needle-nose pliers
Work gloves
Use it for: To protect your hands from sharp sheet metal edges under the cooktop.
Shop work gloves
Flashlight
Use it for: To see mounting screws, wire routing, and hidden clips under the top.
Shop flashlights

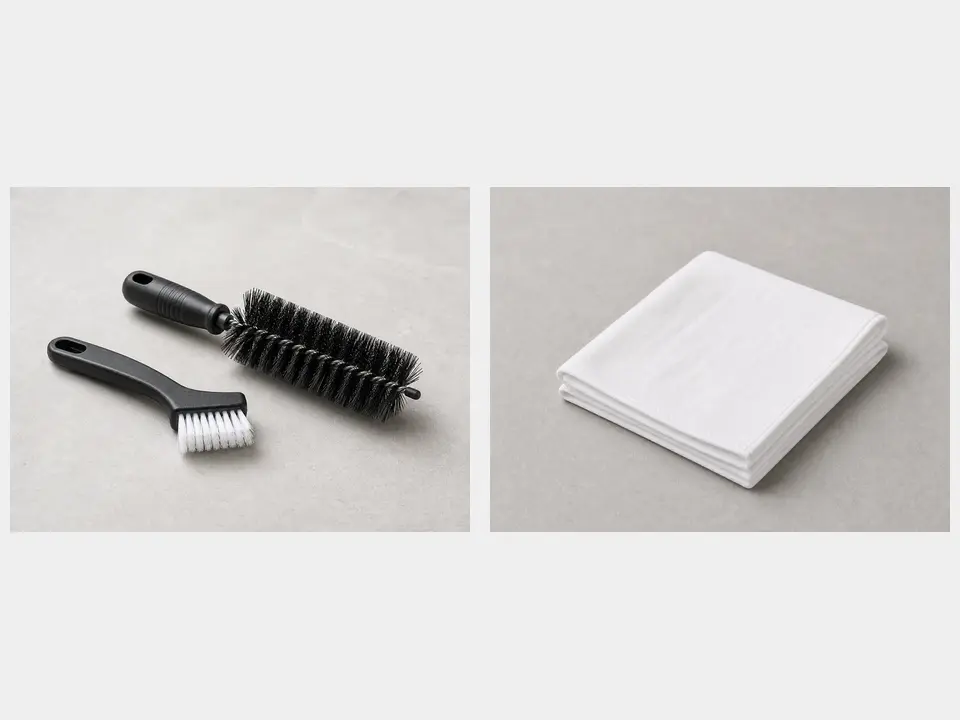

Soft brush and dry cloth
Use it for: To clean food residue and moisture away from the burner area before installing the new igniter.
Shop cleaning brushes and clothsAs an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
Step-by-step fix
Step 1: Confirm the spark igniter is the likely fault
- Make sure the burner cap is seated correctly and the burner head is not clogged or sitting crooked.
- Clean away grease, food debris, and any moisture around the burner and igniter tip with a dry cloth and soft brush.
- Restore power and try that burner while watching for a spark at the igniter tip.
- Compare it to a working burner if your cooktop has one. A bad igniter often gives no spark, a weak spark, or a spark that jumps to the wrong spot.
- Turn the burner back off, then shut off power to the cooktop before starting the replacement.
If it works: You have a burner-specific spark problem that still points to the igniter after basic cleaning and setup checks.
If it doesn’t: If the burner sparks normally after cleaning and drying, you likely do not need to replace the igniter.
Stop if:
- You smell a strong gas odor that does not clear quickly after turning the burner off.
- None of the burners spark, which points to a broader ignition or power problem instead of one igniter.
- The burner base is badly rusted, cracked, or too damaged to hold the igniter securely.
Step 2: Shut the cooktop down and open the burner area
- Confirm the burner controls are off.
- Disconnect electrical power to the cooktop at the plug or breaker so the igniter cannot click while you work.
- Remove the grate, burner cap, and any loose burner parts over the failed burner.
- Take out the screws or fasteners holding the burner base or cooktop top in place, using the right screwdriver or nut driver to avoid stripping them.
- Lift the top or burner assembly carefully so you can reach the igniter and its wire underneath.
If it works: The cooktop is safely powered down and you can clearly access the old igniter and its mounting point.
If it doesn’t: If the top will not lift, look again for hidden screws under caps, trim pieces, or burner heads before forcing anything.
Stop if:
- A fastener is seized so badly that it may snap the burner base or top if forced.
- You find damaged gas tubing, loose fittings, or signs of past overheating under the cooktop.
Step 3: Remove the old igniter without damaging the wire or mount
- Take a clear photo of the igniter position and wire routing before disconnecting anything.
- Follow the igniter wire to its connector and unplug it by the connector body, not by pulling on the wire itself.
- Remove the mounting screw, clip, or bracket holding the igniter in place.
- Lift the old igniter out carefully. If it is stuck by grease or corrosion, work it loose gently instead of prying hard against the ceramic body.
- Compare the old igniter to the new one for matching length, shape, connector style, and mounting points.
If it works: The old igniter is out and you know the replacement matches before installation.
If it doesn’t: If the new part does not match closely, pause and verify fit before installing it.
Stop if:
- The wire insulation is burned, brittle, or cut back beyond the igniter lead.
- The mounting area is broken or corroded enough that the new igniter cannot sit firmly in the correct position.
Step 4: Install the new spark igniter
- Set the new igniter into the same position and angle as the old one so the spark will jump where it should.
- Reinstall the mounting screw, clip, or bracket snugly without overtightening and cracking the ceramic.
- Route the wire along the original path, keeping it away from hot surfaces, sharp edges, and moving parts.
- Reconnect the wire connector fully so it seats securely.
- Give the igniter a final visual check to make sure the tip is aligned with the burner area and not touching metal where it should not.
If it works: The new igniter is mounted securely, connected properly, and positioned like the original.
If it doesn’t: If the igniter will not sit in the right spot, recheck the bracket orientation and compare it again to your photo.
Stop if:
- The ceramic body cracks during installation.
- The connector is loose, overheated, or will not lock together securely.
Step 5: Reassemble the burner parts carefully
- Lower the cooktop top or reinstall the burner base without pinching the igniter wire.
- Reinstall all screws and tighten them evenly so the burner parts sit flat.
- Put the burner head, burner cap, and grate back in place exactly as they were removed.
- Check that the burner cap is centered and stable, since a misaligned cap can mimic an ignition problem.
- Restore electrical power to the cooktop.
If it works: The cooktop is back together with the burner parts aligned and ready for testing.
If it doesn’t: If parts do not sit flat, stop and reseat them before testing so you do not misread the repair.
Stop if:
- A wire is visibly pinched under the top or burner base.
- A burner part will not seat because the mounting area is warped or damaged.
Step 6: Test the repair in real use
- Turn the repaired burner to ignite and watch for a strong, regular spark at the new igniter.
- Confirm the burner lights within a normal few clicks and the flame spreads evenly around the burner.
- Turn the burner off and on a few times to make sure the result is consistent, not a one-time light.
- Listen for clicking after ignition. It should stop once the burner is lit and the knob is released to its normal run position.
- Use the burner briefly at low and medium settings to confirm the flame stays stable.
If it works: The burner now sparks in the right place, lights reliably, and runs normally without stray clicking.
If it doesn’t: If the burner still does not spark or still clicks erratically, the problem may be in the spark module, switch, wiring, or burner grounding rather than the igniter alone.
Stop if:
- You smell gas without ignition during testing.
- The spark jumps to the wrong metal surface or the burner lights unevenly because parts are damaged or misaligned.
Replacement Parts
Find a cooktop spark igniter on Amazon
Match the igniter shape, mounting style, wire connector, and your cooktop model before ordering.
As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
Verify the repair
- The repaired burner produces a visible spark at the igniter tip.
- The burner lights within a normal few clicks.
- The flame spreads evenly and stays stable at low and medium settings.
- Clicking stops after ignition instead of continuing randomly.
- No gas odor remains after normal burner operation.
FAQ
How do I know the cooktop spark igniter is bad?
A bad igniter usually causes one burner to have no spark, a weak spark, or a spark that jumps to the wrong spot even after the burner cap and head are cleaned and dried. If all burners fail at once, the problem is more likely elsewhere.
Can I replace just one igniter?
Yes. If only one burner has the problem and the others spark normally, replacing that single igniter is a reasonable repair.
Why does my cooktop click but not light?
The igniter may be dirty, cracked, out of position, or not grounding correctly through the burner parts. A wet burner area or a misaligned burner cap can also cause clicking without reliable ignition.
Do I need to shut off the gas to replace the igniter?
For this repair, the key safety step is disconnecting electrical power because the igniter system runs on electricity. If you uncover damaged gas parts or smell gas while the burner is off, stop and address that before continuing.
What if the new igniter does not fix it?
If the burner still will not spark correctly, the fault may be in the spark module, ignition switch, wiring, burner base, or grounding path. Recheck alignment and connections first, then move to those other parts if needed.
