How to Replace a Dishwasher Lower Spray Arm Retainer
If the lower spray arm is loose, pops off, wobbles badly, or will not stay clipped in place, replacing the dishwasher lower spray arm retainer is often the right fix.
This is a small parts repair, but it matters because the lower spray arm has to stay seated and spin freely to wash the bottom rack well. Start by confirming the retainer is actually worn, cracked, or missing, then swap it with the correct replacement.
Before you start: Match the replacement part to your exact dishwasher before ordering.
Safety first
- Disconnect power before removing the spray arm or handling internal parts.
- Wear gloves if you are reaching around rack rails or hard plastic edges.
- Do not force twist-lock or clip parts. If something will not release, reassess the connection first.
Tools you may need
Phillips screwdriver
Use it for: Some dishwashers use a screw-secured spray arm or cover that must be removed first.
Shop Phillips screwdrivers
Needle nose pliers
Use it for: Helps pull out a broken retainer piece or guide a small clip into place.
Shop needle-nose pliers
Soft brush or old toothbrush
Use it for: Lets you clean debris and mineral buildup from the spray arm hub before reassembly.
Shop cleaning brushes

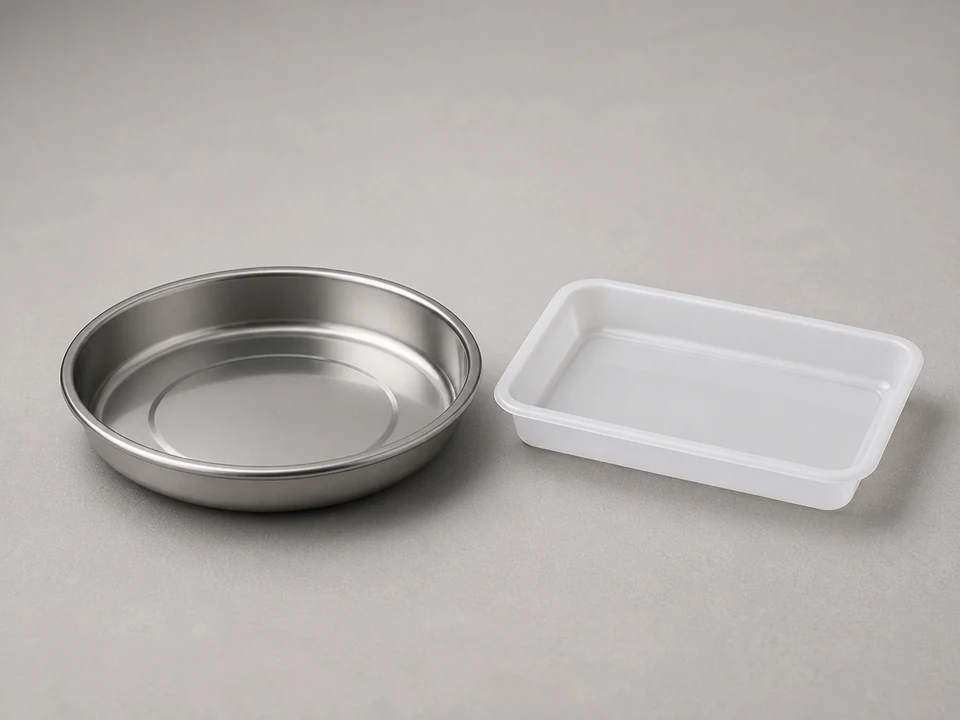

Towel or shallow tray
Use it for: Catches small parts so they do not roll under the dishwasher or into the sump area.
Shop small parts traysAs an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
Step-by-step fix
Step 1: Confirm the lower spray arm retainer is the problem
- Open the dishwasher and pull out the lower rack so you can clearly see the lower spray arm.
- Try lifting the lower spray arm straight up and gently side to side.
- Look for a missing clip, cracked retainer, worn locking tabs, or a spray arm that will not stay attached even when seated correctly.
- Check the spray arm itself for splits, melted plastic, or a damaged center hub, because those problems can mimic a bad retainer.
If it works: You have confirmed the retainer is loose, broken, worn out, or missing, and the spray arm itself looks usable.
If it doesn’t: If the spray arm is intact and secure, clean the spray holes and check for wash pressure or filter issues instead.
Stop if:
- The spray arm hub is cracked or badly warped.
- You find broken plastic deeper in the pump or sump area.
- The mounting post under the spray arm is damaged, loose, or broken off.
Step 2: Set up the dishwasher and remove the lower rack
- Turn off power to the dishwasher at the breaker or unplug it if the plug is accessible.
- Shut the door, then open it again and slide the lower rack fully out.
- Lift the rack out if it clears the door easily, or pull it forward enough to give yourself working room.
- Place a towel or tray nearby for screws, clips, and the old retainer.
If it works: The dishwasher is safe to work on and you have clear access to the lower spray arm area.
If it doesn’t: If the rack catches, check the wheel stops or simply leave the rack partly out if that gives enough room.
Stop if:
- You cannot safely disconnect power.
- There is standing water high enough to spill into the work area when you move parts around.
Step 3: Remove the lower spray arm and old retainer
- Look at the center of the lower spray arm and note how it is held in place before taking anything apart.
- If the arm twists off, rotate it gently in the release direction and lift it away.
- If it is held by a cap, clip, or screw, remove that fastener carefully and keep the parts together.
- Pull out the old retainer or any broken pieces from the center mount using your fingers or needle-nose pliers if needed.
If it works: The lower spray arm is off and the old retainer has been removed from the mounting area.
If it doesn’t: If the spray arm will not release, stop forcing it and recheck how the center connection is locked together.
Stop if:
- The center mount starts cracking when you apply light pressure.
- A fastener is seized and the plastic around it is deforming.
- Broken pieces fall into an area you cannot retrieve without deeper disassembly.
Step 4: Clean the mounting area and compare the new part
- Use a soft brush to clean food debris, grease, and mineral buildup from the spray arm hub and the mounting post.
- Wipe the area dry so the new retainer seats fully.
- Compare the new dishwasher lower spray arm retainer to the old one, checking the shape, tabs, and center opening.
- Make sure the spray arm center is not packed with debris before reinstalling it.
If it works: The mounting area is clean and the new retainer matches the old part closely enough to install.
If it doesn’t: If the new retainer does not match the old one, pause and verify the dishwasher model before installing anything.
Stop if:
- The mounting post is worn down so badly that a new retainer will not lock onto it.
- You find hidden cracking around the spray arm support.
Step 5: Install the new retainer and reattach the spray arm
- Press or position the new retainer exactly where the old one sat, keeping any tabs aligned with the slots or grooves in the mount.
- Seat it fully by hand so it sits flat and does not rock.
- Reinstall the lower spray arm over the retainer and secure it with its cap, clip, twist lock, or screw, depending on your dishwasher design.
- Spin the spray arm by hand to make sure it turns freely without lifting off or scraping.
If it works: The new retainer is seated properly and the lower spray arm stays attached while spinning freely by hand.
If it doesn’t: If the arm binds, remove it and check that the retainer is fully seated and not installed upside down or out of alignment.
Stop if:
- The spray arm still will not lock in place with the correct retainer installed.
- The arm rubs hard enough to damage the new part or the mount.
Step 6: Reassemble and test the repair in real use
- Slide the lower rack back into place and restore power to the dishwasher.
- Run a short wash or rinse cycle with the dishwasher empty.
- After a few minutes, pause the cycle if your machine allows it and check that the lower spray arm is still seated and has changed position from where you started.
- At the end of the cycle, confirm the spray arm is still secure and the bottom area shows normal spray action instead of a loose arm lying out of place.
If it works: The lower spray arm stayed attached through a full test, moved normally during the cycle, and the repair held in real use.
If it doesn’t: If the arm comes loose again, recheck part fit and inspect the spray arm hub and mounting post for wear that the retainer alone cannot fix.
Stop if:
- Water is leaking from a disturbed internal part after reassembly.
- The spray arm repeatedly disconnects even with the correct new retainer installed, pointing to a damaged mount or wrong diagnosis.
Replacement Parts
Find a dishwasher lower spray arm retainer on Amazon
Match the replacement part to your exact dishwasher before ordering.
As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
Verify the repair
- The lower spray arm sits flat and does not lift off by hand.
- The spray arm spins freely without scraping the tub or rack.
- After a test cycle, the spray arm is still attached and has clearly rotated during washing.
- Bottom-rack cleaning performance improves because the spray arm stays in position.
FAQ
What does a dishwasher lower spray arm retainer do?
It holds the lower spray arm in place on its mount so the arm can spin correctly during the wash cycle. If the retainer breaks or wears out, the arm can wobble, pop off, or stop spraying where it should.
How do I know if I need the retainer and not the whole spray arm?
If the spray arm itself is not cracked and the center hub is still in good shape, but it will not stay attached, the retainer is a likely fix. If the arm is split, melted, or the center opening is damaged, the spray arm may also need replacement.
Can I run the dishwasher with a loose lower spray arm?
It is better not to. A loose spray arm can wash poorly, bang around inside the tub, or come off completely during the cycle.
Do I need to pull the dishwasher out of the cabinet for this repair?
Usually no. This repair is normally done from inside the tub after removing or sliding back the lower rack.
Why is the bottom rack still not getting clean after I replace the retainer?
If the new retainer holds the arm securely, the next things to check are clogged spray holes, a dirty filter, low water fill, or a damaged spray arm. The retainer only fixes the arm staying attached and aligned.
