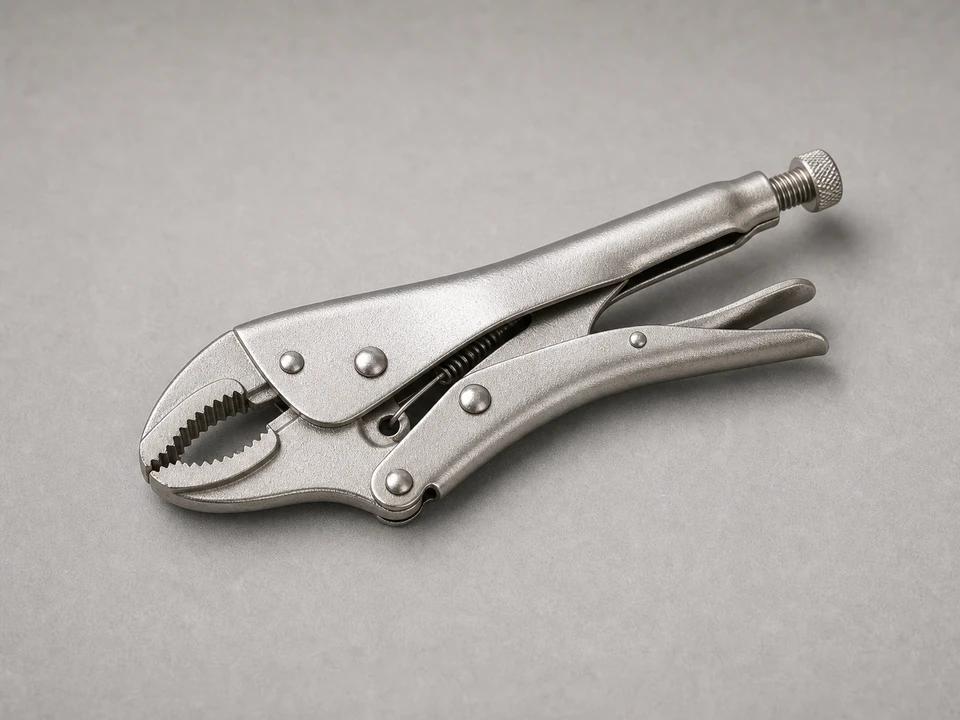

Locking pliers
Use it for: To clamp the track or door in place so it does not move while you work.
Shop locking pliersGarage door repair
How to Replace a Garage Door Roller
To replace a garage door roller, disconnect the opener, secure the door so it cannot move unexpectedly, remove one roller at a time from a safe section of track, install the matching replacement roller, and test the door by hand before reconnecting the opener.
Garage door rollers wear out from age, dirt, and repeated use. A bad roller can make the door noisy, jerky, or hard to move. This job is manageable for many homeowners if you work slowly and avoid the bottom roller area, which is tied to high-tension hardware. If the roller is bent into the track, the door is off track, or you are unsure about spring tension, stop and call a garage door pro.
Before you start: Match the replacement part to your exact garage door before ordering.
Safety first
- Do not replace the bottom roller yourself unless you are trained to work around garage door spring and cable tension.
- Keep the opener disconnected and the door secured before removing any roller.
- Wear gloves and keep fingers away from track pinch points and hinge joints.
- Stop if the door is off track, the cable is frayed, or any spring hardware looks loose or damaged.
Tools you may need
Stepladder
Use it for: To safely reach rollers in the upper sections of the door.
Shop a stepladder

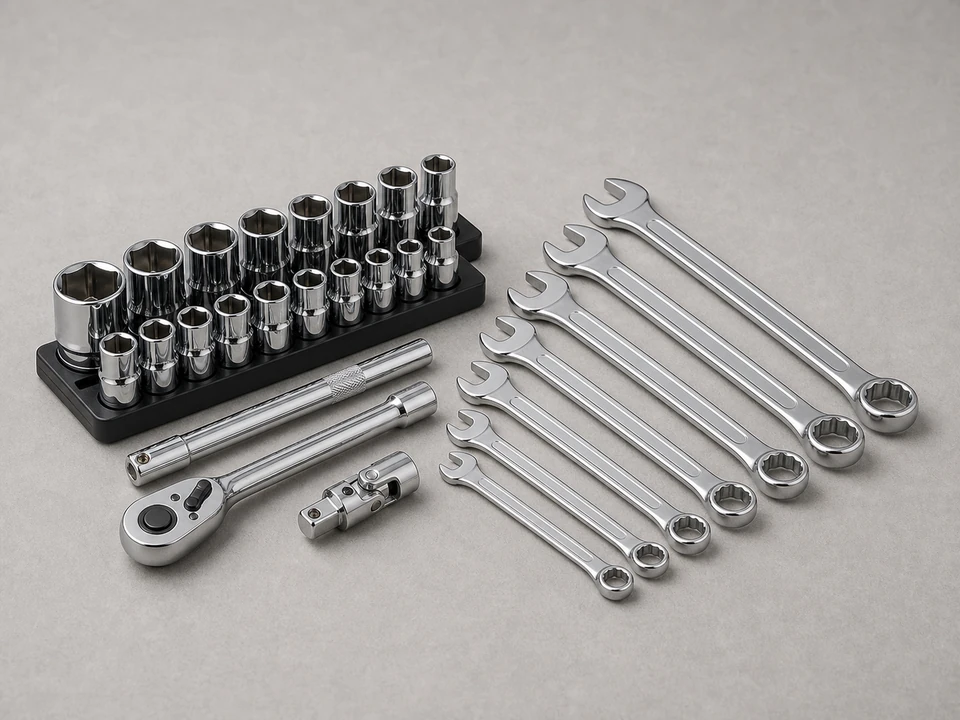

Socket set or wrench set
Use it for: To loosen hinge bolts if the roller is held by a hinged bracket.
Shop socket and wrench sets
Flat pry bar
Use it for: To gently open the track edge just enough to remove and insert a roller.
Shop a flat pry bar
Work gloves
Use it for: To protect your hands from sharp track edges and worn metal parts.
Shop work gloves
Garage door lubricant
Use it for: To lightly lubricate the new roller and nearby hinge after installation.
Shop garage door lubricantAs an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
Step-by-step fix
Step 1: Set up the door and work area
- Close the garage door fully if it will still close normally.
- Unplug the automatic opener or switch off power to it so the door cannot cycle during the repair.
- Pull the emergency release so the opener is disconnected from the door.
- Clamp locking pliers on the track just above a roller on the side you are working on, or clamp the door in place so it cannot rise unexpectedly.
- Clear the area around the door and set your ladder on a flat surface.
If it works: The opener is disconnected and the door is secured against unexpected movement.
If it doesn’t: If the door will not stay in place, is crooked, or is already partly off track, do not continue with roller replacement.
Stop if:
- The door is off track.
- The track is badly bent.
- You cannot secure the door so it stays still.
Step 2: Identify the roller you can safely replace
- Inspect the rollers and find the worn, cracked, noisy, or seized roller.
- Start with a roller in the middle or upper section of the door, not the bottom roller.
- Compare the old roller stem length and wheel size to your replacement part before removing anything.
- Replace one roller at a time so the door stays supported.
If it works: You have confirmed the correct roller and chosen a safer section of the door to work on.
If it doesn’t: If the replacement does not clearly match the old roller, pause and verify the size before proceeding.
Stop if:
- The damaged roller is the bottom roller attached near the lift cable bracket.
- The hinge or bracket is cracked or badly bent.
- The replacement roller does not match the original.
Step 3: Create enough space to remove the old roller
- Move your ladder into position beside the target roller.
- If needed, loosen the hinge bolts slightly so the hinge can shift just enough to free the roller stem.
- Use a flat pry bar to carefully bend the lip of the track open only a small amount at the roller location.
- Guide the roller wheel out of the track while supporting the door section and hinge with your free hand.
If it works: The old roller is free from the track without forcing the door out of alignment.
If it doesn’t: If the roller will not come out with light prying and slight hinge movement, stop rather than bending the track too far.
Stop if:
- The track starts to crease or fold.
- The hinge pulls away from the door.
- The door section shifts or drops.
Step 4: Install the new garage door roller
- Slide the new roller stem into the hinge or bracket opening in the same orientation as the old one.
- Guide the new roller wheel into the track opening you created.
- Tighten any hinge bolts you loosened so the hinge sits firmly against the door.
- Use pliers to bend the track edge back to its original shape so the roller stays captured in the track.
If it works: The new roller sits squarely in the hinge and rolls inside the track without obvious wobble.
If it doesn’t: If the roller binds, sits crooked, or pops toward the track opening, remove it and correct the track shape or part fit before testing.
Stop if:
- The new roller does not seat fully.
- The hinge holes no longer line up.
- The track cannot be returned close to its original shape.
Step 5: Lubricate and repeat if needed
- Apply a light amount of garage door lubricant to the roller bearings or moving joint area if the roller style allows it.
- Wipe away excess lubricant so it does not attract dirt.
- If you are replacing more than one roller, move to the next safe roller and repeat the same process one at a time.
- Leave the bottom roller area alone unless a qualified technician is handling the tension hardware.
If it works: The new roller is lightly lubricated and any additional safe rollers have been replaced one at a time.
If it doesn’t: If several rollers are worn and the door still looks uneven or unstable, stop and have the full door system inspected.
Stop if:
- You reach the bottom roller position.
- You find frayed lift cables.
- You notice loose or damaged spring hardware.
Step 6: Test the door by hand and reconnect the opener
- Remove your clamps or locking pliers from the track.
- Lift the door by hand a short distance, then lower it, checking that the new roller stays in the track and moves smoothly.
- Open and close the door fully by hand if it feels stable.
- Reconnect the opener and restore power.
- Run one full opener cycle while watching and listening for binding, popping, or track rubbing.
If it works: The door moves smoothly by hand and with the opener, and the new roller tracks normally.
If it doesn’t: If the door jerks, binds, or makes sharp popping noises, disconnect the opener again and inspect the roller, hinge, and track alignment.
Stop if:
- The door becomes hard to lift.
- The roller jumps out of the track.
- The opener strains or reverses unexpectedly.
Replacement Parts
Find a garage door roller on Amazon
Match the replacement part to your exact garage door before ordering.
As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
Verify the repair
- The new roller matches the old roller's size and stem style.
- The roller stays fully inside the track through a full open and close cycle.
- Any loosened hinge bolts are tightened securely.
- The track edge is returned close to its original shape and does not rub the roller.
- The door moves smoothly by hand before you rely on the opener again.
FAQ
Can I replace just one garage door roller?
Yes. If only one roller is damaged, you can replace that roller alone. If several rollers are worn, noisy, or cracked, replacing the full set may make the door run more smoothly.
Why should I avoid the bottom roller?
The bottom roller area is connected to the lift cable and high-tension hardware. Removing it incorrectly can release stored force and cause injury. That position is best left to a garage door professional.
Do I need to lubricate the new roller?
A light application of garage door lubricant is usually helpful on metal moving parts. Do not soak the track. Use only a small amount and wipe off excess.
What if the track bends while I remove the roller?
Minor spreading at one spot can often be bent back carefully after the new roller is installed. If the track creases, stays distorted, or no longer guides the roller smoothly, stop and have it repaired before using the door.
How do I know I ordered the right replacement roller?
Match the wheel size, stem length, and general style of the old roller. If your current roller and the replacement do not clearly match, do not force the installation.
