Phillips screwdriver
Use it for: Removes the screw holding the old pivot bar and installs the new one.
Shop Phillips screwdriversWindow repair
How to Replace a Window Sash Pivot Bar
To replace a window sash pivot bar, remove the sash, take out the damaged pivot bar from the bottom corner of the sash, install the matching replacement, then set the sash back into the balance shoes and test it through normal use.
This repair is common on tilt-in vinyl windows when the sash will not stay supported, will not tilt back in correctly, or has a broken metal tab at the bottom corner. The key is using a replacement that matches the old bar closely and making sure both balance shoes are positioned correctly before reinstalling the sash.
Before you start: Match the replacement part to your exact window before ordering.
Safety first
- Wear gloves when handling the sash hardware because pivot bars and sash corners can have sharp edges.
- Support the sash with both hands during removal and reinstallation so it does not twist or drop.
- Work on a stable surface and keep the glass side protected from hard impacts.
- Do not force a stuck sash or balance shoe. Excess force can crack the sash frame or release spring-loaded hardware unexpectedly.
Tools you may need

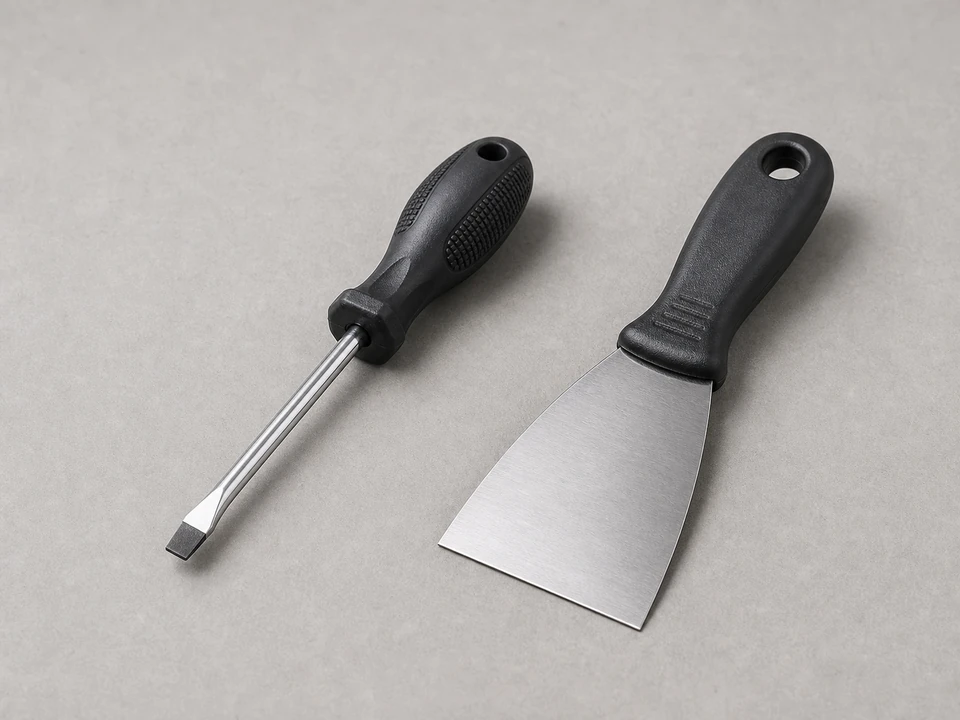

Flat screwdriver or putty knife
Use it for: Helps release tilt latches or gently guide the sash and balance shoe into place.
Shop flat screwdrivers
Needle nose pliers
Use it for: Useful for pulling a damaged pivot bar or turning a balance shoe if it is out of position.
Shop needle-nose pliers
Tape measure
Use it for: Checks the old pivot bar length and hole spacing so the replacement matches.
Shop tape measures
Work gloves
Use it for: Protects your hands from sharp metal edges on the pivot bar and sash hardware.
Shop work glovesAs an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
Step-by-step fix
Step 1: Confirm the pivot bar is the problem
- Unlock the window and raise it a few inches if it will move.
- Tilt the sash inward if your window is a tilt-in style, or inspect the bottom corners of the sash from inside the room.
- Look for a loose, bent, or broken metal bar at the lower corner of the sash where it engages the balance shoe in the side track.
- Compare both bottom corners. If one side is missing the metal tab or no longer stays engaged in the shoe, the pivot bar is a likely cause.
- Check the sash frame itself for cracks around the mounting area, because a new pivot bar will not hold well in damaged sash material.
If it works: You have confirmed that the pivot bar is damaged, missing, or pulled loose and the sash frame around it appears sound.
If it doesn’t: If both pivot bars look intact, inspect the balance shoes or tilt latches instead. The sash may be dropping because the support hardware in the side tracks has failed.
Stop if:
- The sash frame is cracked, split, or badly distorted around the pivot bar mounting point.
- The glass is loose or the sash feels unstable enough that removing it could be unsafe.
Step 2: Remove the sash and set up the work area
- Clear a flat work surface nearby, such as a table or the floor with a towel under the sash.
- Open the sash several inches and release the tilt latches if your window has them.
- Tilt the top of the sash inward toward you, then lift one pivot bar out of its balance shoe and remove the other side.
- Lay the sash flat with the bottom edge facing you so you can reach the damaged corner easily.
- Keep any screws and small parts together so they do not get lost.
If it works: The sash is out of the window and supported on a stable work surface.
If it doesn’t: If the sash will not come free, check whether the balance shoes are locked in the wrong position or whether the sash needs to be tilted farther before lifting it out.
Stop if:
- The sash is stuck hard enough that forcing it could crack the frame or glass.
- A balance shoe, spring, or track part comes loose in a way you cannot safely control.
Step 3: Remove the old pivot bar
- Inspect how the old pivot bar is mounted in the sash corner before removing it.
- Take out the retaining screw or screws with a Phillips screwdriver.
- Slide or pull the old pivot bar out of the sash corner. Use needle-nose pliers if it is bent or partly broken.
- Set the old part next to the new one and compare the length, shape, screw hole location, and the part that engages the balance shoe.
- Clean out any debris in the mounting slot so the new bar can sit flat.
If it works: The old pivot bar is removed and you have confirmed the replacement matches the original closely.
If it doesn’t: If the new part does not match the old one in length, shape, or screw position, pause and get the correct replacement before reinstalling the sash.
Stop if:
- The screw hole is stripped out badly or the sash corner is too damaged to hold the new pivot bar securely.
- The replacement part is clearly the wrong style for your sash.
Step 4: Install the new pivot bar
- Slide the new pivot bar into the sash corner in the same orientation as the old one.
- Align the screw hole and start the screw by hand to avoid cross-threading.
- Tighten the screw until the pivot bar is snug and does not wiggle, but do not overtighten and crush the sash material.
- Check that the pivot tip projects out far enough to engage the balance shoe the same way the old one did.
- If the other side looks loose or worn, inspect it now so you do not have to remove the sash again soon.
If it works: The new pivot bar is mounted firmly and sits in the same position as the original part.
If it doesn’t: If the bar rocks, sits crooked, or will not tighten securely, recheck the fit and the condition of the sash corner before moving on.
Stop if:
- The mounting area will not hold the screw securely.
- The new pivot bar binds against the sash frame or cannot line up with the balance shoe opening.
Step 5: Reinstall the sash into the balance shoes
- Look at both balance shoes in the side tracks and make sure they are at the same height.
- If a shoe is turned sideways, rotate it back to the receiving position with a flat screwdriver or pliers so the pivot bar can enter it.
- Insert one pivot bar into its balance shoe, then align and insert the other side.
- Tilt the sash upward and guide the top back into the frame.
- Close the sash slowly and lock the window.
If it works: The sash is back in the frame and both pivot bars are seated in the balance shoes.
If it doesn’t: If one side will not seat, remove the sash again and recheck shoe height, shoe orientation, and whether the new pivot bar matches the old one.
Stop if:
- A balance shoe is cracked, jammed, or will not stay in position.
- The sash will not sit square in the frame after repeated careful attempts.
Step 6: Test the repair in real use
- Unlock and raise the sash several times to make sure it moves evenly.
- Tilt the sash in and return it to the frame if your window is designed to do that.
- Watch the repaired corner to make sure the pivot bar stays engaged and does not pull loose.
- Check that the sash stays supported, closes fully, and locks normally.
- Listen for scraping or popping that could mean the shoe or sash is still misaligned.
If it works: The sash opens, tilts, closes, and stays supported normally with the new pivot bar installed.
If it doesn’t: If the sash still drops, binds, or pops out of the shoe, the balance shoe or window balance may also need repair.
Stop if:
- The sash repeatedly disengages from the track.
- The repaired corner loosens again during testing, which points to sash damage or another failed hardware part.
Replacement Parts
Find a window sash pivot bar on Amazon
Match the replacement part to your exact window before ordering.
As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
Verify the repair
- The new pivot bar is tight and does not shift in the sash corner.
- Both balance shoes are aligned and the sash seats fully in the frame.
- The sash opens and closes without one corner dropping out of place.
- On tilt-in windows, the sash tilts in and snaps back into operating position correctly.
- The window locks normally after the repair.
FAQ
What does a window sash pivot bar do?
It is the small metal piece at the bottom corner of many tilt-in sashes that connects the sash to the balance shoe in the side track. That connection lets the sash stay supported and tilt in for cleaning.
How do I know I need a new pivot bar instead of a balance shoe?
If the metal bar on the sash is bent, broken, missing, or pulled loose, replace the pivot bar. If the bar looks fine but the track hardware is cracked, jammed, or will not hold the sash, the balance shoe may be the real problem.
Can I replace just one window sash pivot bar?
Yes. If only one side is damaged, you can replace that one. Still, it is smart to inspect the other side for looseness or wear while the sash is out.
Do all window sash pivot bars fit the same?
No. Length, shape, screw location, and the tip that fits into the balance shoe can vary. Match the new part to the old one and to your exact window before ordering.
Why does the sash still fall after I replaced the pivot bar?
The pivot bar may not be fully seated in the balance shoe, the shoe may be turned the wrong way, or the window balance system may also be worn out. Recheck the shoe position and inspect the side-track hardware.
