How to Replace Fence Gate Hinge Bolts
If your gate hinge bolts are bent, rusted through, loose, or no longer holding the hinge tight to the gate or post, you can replace them with matching bolts and realign the gate before tightening everything down.
This is a straightforward repair if the gate frame and post are still solid. The main job is supporting the gate so the hinge is not carrying weight while you remove and replace the old hardware.
Before you start: Match the bolt diameter, length, head style, finish, and the hinge mounting hole size before ordering.
Safety first
- Wear safety glasses when removing rusted hardware or drilling.
- Support the gate before removing hinge bolts so it does not drop or twist unexpectedly.
- Keep fingers clear of hinge pinch points while testing the swing.
- Get help if the gate is large, heavy, or hard to steady alone.
Tools you may need
Locking pliers
Use it for: To hold a spinning bolt head or stubborn hardware while you loosen the nut.
Shop locking pliers

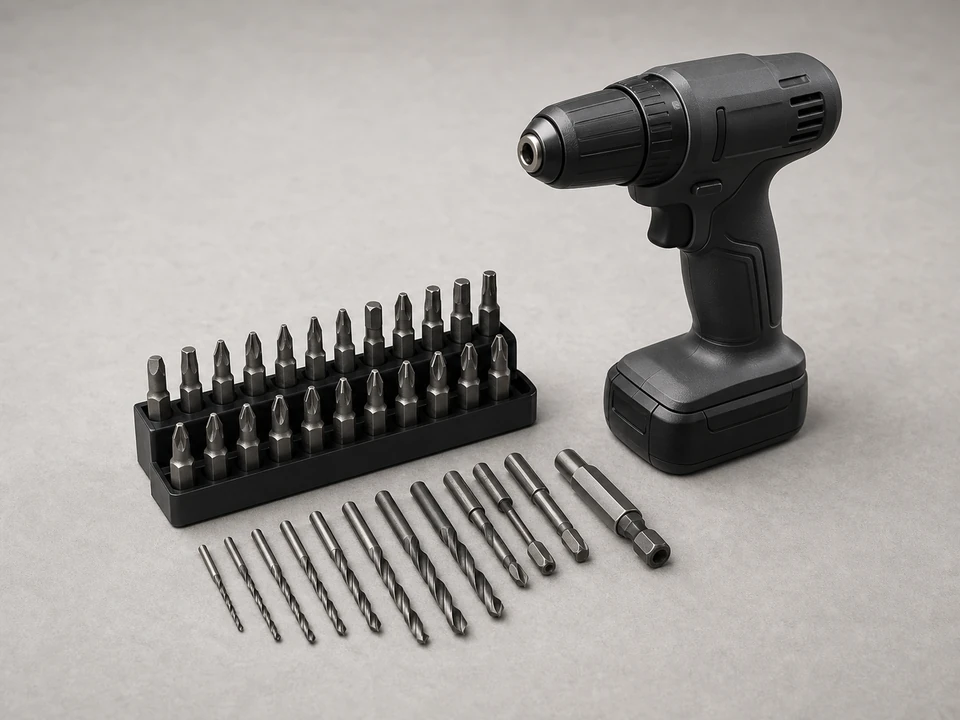

Drill and drill bits
Use it for: To clean out damaged holes or redrill if the old bolts seized or the holes are slightly off.
Shop drills and drill bit sets
Wood shims or scrap blocks
Use it for: To support and level the gate while the hinge bolts are out.
Shop wood shims
Tape measure
Use it for: To match the old bolt diameter and length and to check gate gaps during alignment.
Shop tape measures
Safety glasses
Use it for: To protect your eyes from rust, metal flakes, and drilling debris.
Shop safety glassesAs an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
Step-by-step fix
Step 1: Confirm the hinge bolts are the real problem
- Open and close the gate slowly and watch the hinge side closely.
- Look for bolts that are bent, badly rusted, missing, stripped, or loose enough that the hinge plate shifts on the gate or post.
- Check whether the gate itself is still solid by pressing on the hinge area of the gate frame and the post.
- Measure one of the old bolts if possible so you know the diameter and length you need before you start.
If it works: You have confirmed the hinge bolts are worn or damaged and the gate and post still look solid enough for a hardware replacement.
If it doesn’t: If the bolts are tight and intact, look instead for a sagging gate frame, a leaning post, or a damaged hinge.
Stop if:
- The gate post is rotted, cracked, or loose in the ground.
- The wood around the hinge is split badly enough that new bolts will not hold.
- The metal gate frame or hinge is torn or deformed rather than just loosely bolted.
Step 2: Support the gate and relieve pressure on the hinges
- Close the gate and place wood shims or scrap blocks under the latch side until the gate sits level and the latch lines up as closely as possible.
- If needed, add a second support under the middle of the gate so it cannot twist while you work.
- Keep one hand on the gate as you test the support. The gate should feel stable, not hanging on the hinge bolts.
If it works: The gate is supported and the hinge hardware is no longer carrying the full weight of the gate.
If it doesn’t: Add or adjust shims until the gate stays in position without dropping when you loosen the hardware.
Stop if:
- The gate is too heavy or unstable to support safely by yourself.
Step 3: Remove the old hinge bolts
- Work on one hinge connection at a time so the gate stays aligned.
- Use a wrench or socket to remove the nut while holding the bolt head with another tool if it spins.
- Pull the old bolt out. If it is stuck from rust, tap it out gently or use locking pliers to work it free.
- Clear rust, dirt, and splinters from the hinge holes so the new bolts can seat flat.
If it works: The old hinge bolts are out and the hinge holes are accessible and reasonably clean.
If it doesn’t: If a bolt will not come out cleanly, apply steady pressure, clean the exposed threads, and try again before forcing it.
Stop if:
- Removing the hardware reveals hidden rot, crushed wood, or enlarged holes so severe that the new bolts will not clamp the hinge securely.
Step 4: Install the new fence gate hinge bolts
- Slide the new bolts through the hinge and mounting holes in the same orientation as the old hardware.
- Add washers if the original setup used them or if they help the nut clamp evenly on the surface.
- Thread the nuts on by hand first to avoid cross-threading.
- Snug the bolts enough to hold the hinge in place, but do not fully tighten until the gate alignment looks right.
If it works: The new bolts are installed and holding the hinge in position without binding or cross-threading.
If it doesn’t: If the bolts do not pass through cleanly, recheck the bolt size and hole alignment before tightening anything.
Stop if:
- The replacement bolts are clearly the wrong diameter or too short to fully engage the nut safely.
Step 5: Align the gate and tighten the hardware
- Check the gap along the top and latch side of the gate and adjust the shims under the gate until the spacing looks even.
- Open and close the gate a few inches to make sure the hinge is not twisted.
- Tighten the hinge bolts firmly with the gate still supported so the hinge plates clamp flat against the gate and post.
- Repeat for any remaining hinge bolts, keeping the gate supported until all hardware is tight.
If it works: The gate sits straighter, the hinge plates are tight, and the gate moves without obvious sag at the hinge side.
If it doesn’t: Loosen the bolts slightly, fine-tune the support height, and retighten until the gate swings more evenly.
Stop if:
- The gate still drops badly even with new bolts and careful alignment, which points to a failing hinge, gate frame, or post.
Step 6: Test the repair in normal use
- Remove the shims and open the gate fully, then close it several times at a normal pace.
- Make sure the latch meets properly and the gate does not scrape the ground or drag on the post.
- Recheck the new nuts after a few cycles to confirm they stayed tight.
- Look at the hinge side one last time to confirm the plates are not shifting under load.
If it works: The gate opens, closes, and latches normally, and the new hinge bolts stay tight under the gate's weight.
If it doesn’t: If the gate still binds or unlatches, adjust the hinge position again or inspect the hinges and post for a larger alignment problem.
Stop if:
- The new bolts loosen immediately, the hinge shifts, or the gate cannot stay aligned, which means the mounting surface or hinge assembly needs further repair.
Replacement Parts
Find fence gate hinge bolts on Amazon
Match the bolt diameter, length, head style, finish, and the hinge mounting hole size before ordering.
As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
Verify the repair
- The gate swings through its normal range without scraping or binding.
- The latch lines up and closes without lifting or pushing hard on the gate.
- The hinge plates sit flat and do not shift when the gate moves.
- The new hinge bolts remain tight after several open-and-close cycles.
FAQ
Can I replace just one fence gate hinge bolt?
Yes, if only one is damaged. Still inspect the rest closely. If one bolt has rusted or bent, the others may be close behind.
What kind of bolts should I use on an outdoor gate?
Use bolts that match the original size and are suitable for outdoor exposure, such as corrosion-resistant hardware. The key is correct fit and enough strength for the gate weight.
Why does my gate still sag after replacing the hinge bolts?
New bolts will not fix a leaning post, a warped gate, split wood, or a worn hinge. If the hardware is tight but the gate still drops, the root problem is likely the post, hinge, or gate frame.
Do I need to remove the whole gate to replace hinge bolts?
Usually no. Most homeowners can replace them with the gate supported in place. Removing the whole gate is only helpful if access is poor or the gate is too hard to align while mounted.
Should I tighten the bolts as much as possible?
Tighten them firmly so the hinge plates clamp securely, but do not crush wood fibers or strip the threads. The goal is a solid clamp without damaging the mounting surface.
