How to Replace a Furnace Condensate Pump Float Switch
Replace the furnace condensate pump float switch if the pump reservoir fills but the pump does not start, or if the safety circuit is tripping because the float switch is sticking or not closing properly.
This repair is usually straightforward if you can safely shut off power, open the condensate pump, and reconnect a few wires the same way they came off. The key is confirming the switch is the problem before you swap parts.
Before you start: Match the float switch style, voltage or control compatibility, and condensate application before ordering.
Safety first
- Shut off power before opening the condensate pump or disconnecting any wires.
- Expect dirty water in the reservoir and keep towels or a shallow pan under the pump.
- Do not force plastic covers, clips, or switch mounts because older pump housings can crack easily.
- If the pump is hard-wired or the wiring shows heat damage, stop and get qualified help.
Tools you may need
Needle nose pliers
Use it for: To pull small wire terminals and guide the new float switch into place.
Shop needle-nose pliers
Multimeter
Use it for: To check whether the old switch opens and closes when the float moves.
Shop multimeters

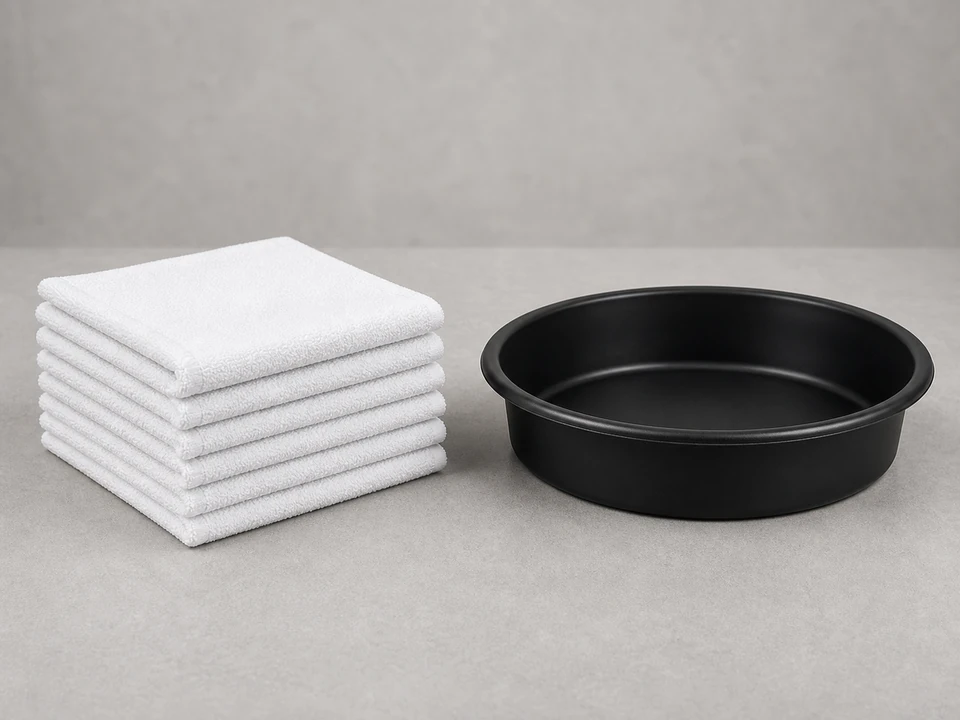

Small towel or shallow pan
Use it for: To catch water when you open the condensate pump reservoir.
Shop drip pans and absorbent towels
Work gloves
Use it for: To protect your hands from sharp plastic edges, sheet metal, and dirty condensate water.
Shop work glovesAs an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
Step-by-step fix
Step 1: Confirm the float switch is the likely failure
- Watch what happens when the furnace or air handler is producing condensate and the pump reservoir has water in it.
- If the reservoir is filling but the pump does not start, lift the float gently by hand if you can access it without disassembling the unit.
- Listen for the pump motor to start and watch whether the float moves freely or feels stuck.
- If you have a multimeter and can safely access the switch leads, disconnect power first, remove one lead from the switch, and check continuity while moving the float up and down.
- Compare what you find to the symptom: a bad float switch usually stays open or closed when it should change state, or it binds and does not move smoothly.
If it works: You have a clear reason to replace the float switch instead of guessing at the repair.
If it doesn’t: If the pump motor hums, trips, leaks badly, or never runs even when the switch tests correctly, the problem may be the pump motor, check valve, tubing, or power supply instead.
Stop if:
- The pump housing is cracked, badly warped, or leaking from multiple seams.
- The wiring is burnt, melted, or brittle enough that reconnecting it safely is doubtful.
- You cannot confirm power is off before opening the pump or touching wiring.
Step 2: Shut off power and open the pump safely
- Turn off power to the furnace or air handler and unplug the condensate pump if it has a cord.
- Place a towel or shallow pan under the pump to catch any water left in the reservoir.
- Remove the pump cover or access lid carefully so you can see the float and switch assembly.
- Take a clear photo of the wire connections and how the float switch sits in the pump before removing anything.
If it works: The pump is safe to work on, open, and documented so you can put it back together correctly.
If it doesn’t: If the cover will not come off without forcing it, look again for hidden screws or clips instead of prying hard enough to crack the housing.
Stop if:
- Water is reaching live wiring or the outlet area.
- The pump is hard-wired and you are not sure how to isolate power safely.
Step 3: Remove the old float switch
- Disconnect the switch wires one at a time, using your photo as a reference.
- Release any clip, screw, or bracket holding the float switch in place.
- Lift out the switch and float assembly carefully so you do not break nearby tubing or the pump body.
- Wipe out sludge, scale, or debris from the float chamber and reservoir so the new switch will move freely.
If it works: The old float switch is out and the pump interior is clean enough for the new part to work properly.
If it doesn’t: If the switch is built into a sealed pump assembly and does not come out separately, you may need to replace the full condensate pump instead of just the switch.
Stop if:
- The mounting points are broken and will not hold the new switch securely.
- The reservoir is packed with heavy slime or rust debris that suggests a larger drainage or water quality problem.
Step 4: Install the new float switch in the same position
- Compare the new switch to the old one before installing it, checking the mounting style, float travel, and wire connection type.
- Set the new float switch into the same orientation as the original so the float can rise and fall without rubbing the housing.
- Reinstall the clip, bracket, or screw that holds the switch.
- Reconnect the wires exactly as they were before, using your photo to confirm placement.
- Move the float by hand once more to make sure it travels smoothly and returns freely.
If it works: The new float switch is mounted securely, wired correctly, and moves without sticking.
If it doesn’t: If the new switch does not sit the same way as the old one or the float binds during hand movement, stop and recheck part fit before reassembling the pump.
Stop if:
- The replacement switch does not match the original well enough to mount securely or connect safely.
Step 5: Reassemble the pump and test the switch
- Reinstall the pump cover or lid and make sure any tubing you moved is back in place.
- Restore power to the pump and the furnace or air handler.
- Pour a small amount of clean water into the pump reservoir until the float rises enough to call for pumping.
- Watch for the pump to start, remove the water, and shut off again once the level drops.
- Check around the cover and tubing for leaks while the pump runs.
If it works: The pump starts and stops normally with the new float switch controlling it.
If it doesn’t: If the float rises but the pump still does not run, check the outlet, plug, wiring connections, and the pump motor itself because the switch may not have been the only failed part.
Stop if:
- The pump trips a breaker, sparks, or overheats during the test.
- Water leaks from the housing after reassembly and tightening the cover does not correct it.
Step 6: Verify the repair holds during normal furnace operation
- Run the system long enough to produce real condensate, not just the hand-poured test water.
- Check that water enters the pump, the float rises, the pump cycles on, and the reservoir empties without overflowing.
- Listen for normal pump cycling instead of constant running, humming, or repeated short cycling.
- Recheck the area after a full cycle for leaks, standing water, or a furnace shutdown tied to the condensate safety circuit.
If it works: The condensate pump handles normal water flow and the furnace keeps running without overflow or nuisance shutdowns.
If it doesn’t: If the pump works during a hand test but fails during normal operation, inspect the discharge line for blockage, kinks, or backflow and confirm the pump is sized and installed correctly.
Stop if:
- The reservoir overflows during normal use.
- The furnace still shuts down on a condensate safety fault after the switch replacement.
Replacement Parts
Find a furnace condensate pump float switch on Amazon
Match the float switch style, voltage or control compatibility, and condensate application before ordering.
As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
Verify the repair
- The float moves freely without sticking.
- The pump starts when the water level lifts the float.
- The pump shuts off after the reservoir empties.
- There are no leaks at the cover, tubing, or pump body.
- The furnace continues normal operation without condensate-related shutdowns.
FAQ
How do I know the float switch is bad and not the whole pump?
If the reservoir fills and the float does not trigger the pump, or the switch fails a continuity test when the float moves, the switch is a strong suspect. If the switch works but the motor does not run, the pump itself may be the problem.
Can I clean the old float switch instead of replacing it?
Sometimes yes. If the float is sticking because of slime or scale, cleaning the chamber and float may restore movement. Replace the switch if it still binds, tests bad, or has damaged wiring or mounting.
Do I need to replace the entire condensate pump to fix this?
Not always. Some pumps allow the float switch to be replaced separately, while others use an integrated assembly. If the switch is not serviceable on your pump, replacing the full pump is usually the practical repair.
What kind of water should I use to test the pump after the repair?
Use a small amount of clean water. You only need enough to raise the float and confirm the pump starts, empties the reservoir, and shuts off normally.
Why does the furnace shut down when the condensate pump has a problem?
Many systems use a safety switch to stop furnace or air handler operation if condensate cannot drain properly. That helps prevent overflow and water damage when the pump or float control fails.
