Non contact voltage tester
Use it for: To confirm the switch box is de-energized before you touch any wires.
Shop non-contact voltage testersElectrical switch replacement
How to Replace a Hallway 3 Way Light Switch
To replace a hallway 3 way light switch, shut off the correct breaker, confirm the power is off, label the common and traveler wires on the old switch, move the wires to the matching terminals on the new 3-way switch, then test the light from both hallway switch locations.
This job is usually straightforward if the switch is worn out, loose, or no longer toggles the hallway light reliably. The key is replacing it with the same type of switch and keeping the common wire on the common terminal.
Before you start: Buy a 3 way switch, not a single pole switch. Match the amperage rating, wire terminal style, and box space before ordering.
Safety first
- This is a moderate-risk electrical repair because live wires may be present if the wrong breaker is off.
- Always verify the switch box is de-energized with a tester before touching wires.
- Replace a 3-way switch only with another 3-way switch of the proper rating.
- Do not continue if you find heat damage, melted insulation, or wiring you cannot identify confidently.
Tools you may need
Flathead screwdriver
Use it for: To remove the wall plate and help release some wire terminals.
Shop flathead screwdrivers
Phillips screwdriver
Use it for: To remove and reinstall the switch mounting screws.
Shop Phillips screwdrivers
Needle nose pliers
Use it for: To bend wire hooks and guide wires back into the box neatly.
Shop needle-nose pliers

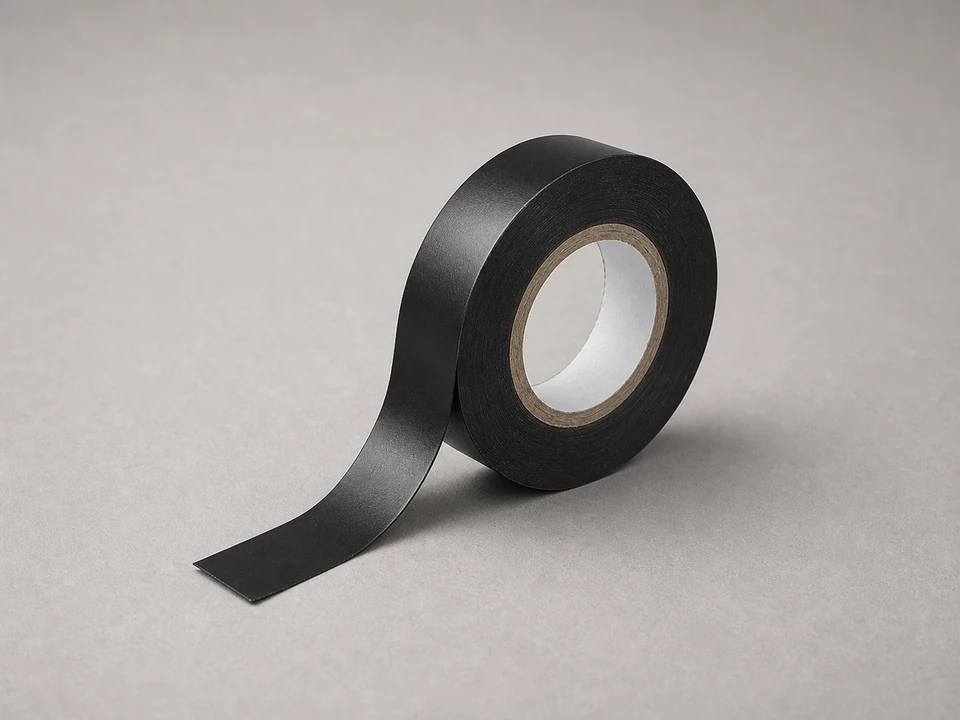

Electrical tape or wire labels
Use it for: To mark the common wire before moving anything.
Shop electrical tape and wire labels
Flashlight
Use it for: To see terminal colors and wire positions clearly after the breaker is off.
Shop flashlightsAs an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
Step-by-step fix
Step 1: Make sure a bad 3-way switch is the likely problem
- Use both hallway switches and note what the light does in each position.
- Look for common switch-failure signs: the toggle feels loose, the light only works from one location, the switch works intermittently, or the light flickers when you touch the switch.
- Remove the wall plate and look for obvious damage such as cracking, heat discoloration, or a switch body that feels loose in the box.
- Confirm you are replacing a 3-way switch by checking that this switch controls the same light from a second location.
If it works: You have a good reason to replace the switch and you have confirmed this is a 3-way setup, not a standard single-location switch.
If it doesn’t: If both switches seem fine but the light still acts up, try a known-good bulb first and inspect for a loose fixture connection or another wiring issue before replacing parts.
Stop if:
- The box shows charring, melted insulation, a burnt smell, or brittle wire insulation.
- You cannot confirm this is a 3-way switch controlling the same light from two locations.
- The switch box is loose in the wall or the wiring looks damaged or overcrowded.
Step 2: Shut off power and verify the box is dead
- Turn off the breaker that feeds the hallway light switch circuit.
- Try both hallway switches to make sure the light no longer turns on.
- Remove the wall plate screws and pull the plate off.
- Use a non-contact voltage tester around the switch terminals and wires before touching anything.
- Use a flashlight so you can work without restoring power.
If it works: The light stays off and your tester shows no live voltage at the switch box.
If it doesn’t: If the tester still shows power, go back to the panel and identify the correct breaker before continuing.
Stop if:
- You cannot positively verify the power is off.
- More than one circuit appears to enter the box and you are not sure which wires belong to the switch you are replacing.
Step 3: Pull the old switch out and label the common wire
- Remove the mounting screws holding the switch to the electrical box.
- Gently pull the switch straight out far enough to see the terminal screws and wire positions.
- Find the common terminal on the old 3-way switch. It is usually a different-colored screw than the two traveler screws.
- Mark the wire on that common terminal with tape or a label before disconnecting anything.
- Take a clear photo of the wiring from the front and side so you have a reference.
- Note the ground wire connection and whether the travelers are on screw terminals or push-in connections.
If it works: You have identified and labeled the common wire and documented the old wiring layout.
If it doesn’t: If you cannot tell which terminal is the common, stop and compare the old switch body markings carefully before removing wires.
Stop if:
- The switch has no visible terminal markings and you cannot confidently identify the common wire.
- A wire breaks, crumbles, or pulls out of damaged insulation while you are exposing the switch.
Step 4: Move the wires to the new 3-way switch
- Disconnect the old switch wires one at a time.
- Connect the labeled common wire to the common terminal on the new 3-way switch.
- Move the two traveler wires to the two traveler terminals on the new switch.
- Reconnect the ground wire to the green ground screw.
- Tighten terminal screws firmly and make sure no bare copper is exposed beyond the terminal area.
- If the old switch used push-in connections and the new one allows screw terminals, use the screw terminals for a more secure connection when possible.
If it works: The new switch is wired with the common on the common terminal, the travelers on the traveler terminals, and the ground connected.
If it doesn’t: If the wires are too short or the ends are damaged, trim and re-strip only enough insulation to make a clean, secure connection.
Stop if:
- The replacement is not actually a 3-way switch.
- The wire gauge or terminal capacity does not match the new switch.
- You find a missing ground in a metal box and are not sure how the switch was grounded.
Step 5: Reinstall the switch and restore power
- Fold the wires back into the box carefully, keeping the ground away from live terminals.
- Set the switch upright and fasten it to the box without pinching wires.
- Reinstall the wall plate.
- Turn the breaker back on.
- Test the new switch gently to make sure it feels solid and does not shift in the wall.
If it works: The switch is mounted securely, the plate is back on, and power is restored without tripping the breaker.
If it doesn’t: If the breaker trips right away, turn it back off and recheck for a misplaced common wire, a loose strand touching another terminal, or a ground contact issue.
Stop if:
- The breaker trips repeatedly after reassembly.
- You hear buzzing, see sparking, or the switch feels hot after power is restored.
Step 6: Test the hallway light from both switch locations
- Turn the hallway light on and off several times from the new switch.
- Go to the other 3-way switch and repeat the test in different switch positions.
- Make sure either switch can change the light state regardless of the other switch position.
- Use the light normally for a day or two and watch for flickering, delay, or a loose feel at the new switch.
If it works: The hallway light works correctly from both locations and the repair holds during normal use.
If it doesn’t: If the light only works from one location or the switch positions seem backward, turn the breaker off and recheck that the common wire is on the common terminal and the travelers are on the traveler terminals.
Stop if:
- The light still behaves unpredictably after the wiring has been checked twice.
- Another switch, outlet, or light on the same circuit stopped working after the replacement.
Replacement Parts
Find a hallway 3 way light switch on Amazon
Buy a 3 way switch, not a single pole switch. Match the amperage rating, wire terminal style, and box space before ordering.
As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
Verify the repair
- The breaker stays on after the switch is reinstalled.
- The hallway light turns on and off from both switch locations.
- The new switch feels firm, with no wobble, buzzing, or heat during normal use.
- The wall plate sits flat and no wires are exposed.
FAQ
Can I use a regular single-pole switch instead of a 3-way switch?
No. A hallway light controlled from two locations needs a 3-way switch at each switch location. A single-pole switch will not work correctly in that setup.
What is the most important wire to label before removing the old switch?
Label the common wire first. On a 3-way switch, the common must go back onto the common terminal of the new switch or the circuit will not work properly.
Does it matter which traveler wire goes to which traveler terminal?
Usually no. The two traveler wires can normally go on either traveler terminal, but the common wire must stay on the common terminal.
Why does the light only work from one switch after replacement?
The most common cause is the common wire being placed on a traveler terminal, or vice versa. Turn the breaker off and compare the old wiring photo to the new switch terminals.
Should I replace both hallway switches at the same time?
Not always, but it can make sense if both switches are old, loose, or worn. If one switch failed from age, the other may not be far behind.
