How to Replace a Bathtub Handle Anti Scald Stop Kit

To replace a bathtub handle anti scald stop kit, remove the handle and trim, swap in the matching stop parts, then reset the hot-water limit so the handle cannot turn too far toward full hot.

This repair is usually worth trying when the handle no longer limits hot water correctly, the stop parts are cracked or missing, or the temperature range changed after a handle repair. Work slowly, keep the small parts in order, and test the final water temperature before regular use.

Before you start: Match the valve brand if known, handle style, spline or stem connection, and the shape of the stop pieces before ordering.

Prepared by: Repair Riot Last updated: 2026-06-05 How we build and check guides

Safety first

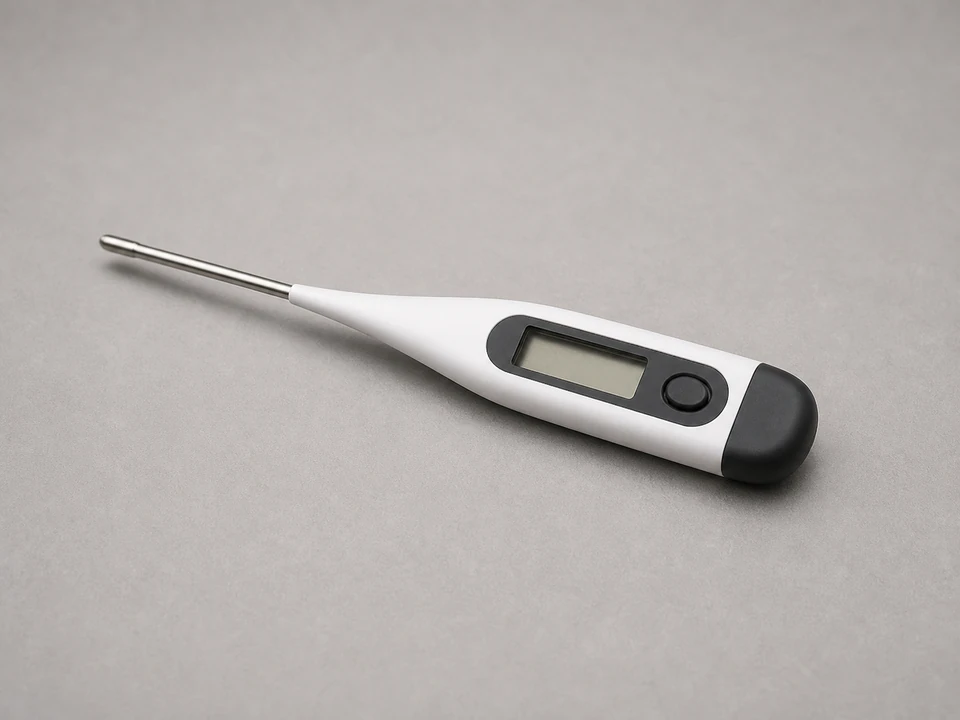

  • Test final water temperature with a thermometer if possible instead of relying on hand feel alone.
  • Cover the drain before removing screws or clips so small parts do not fall into the plumbing.
  • Do not force a stuck handle or stop ring hard enough to crack trim or bend the valve stem.
  • If the valve body is loose in the wall or water is leaking behind the wall, stop and repair that problem first.

Tools you may need

Allen key set tool

Allen key set

Use it for: Many tub handles use a small set screw underneath or on the side.

Shop Allen key sets
Needle-nose pliers tool

Needle nose pliers

Use it for: Useful for pulling clips or handling small stop pieces without dropping them.

Shop needle-nose pliers

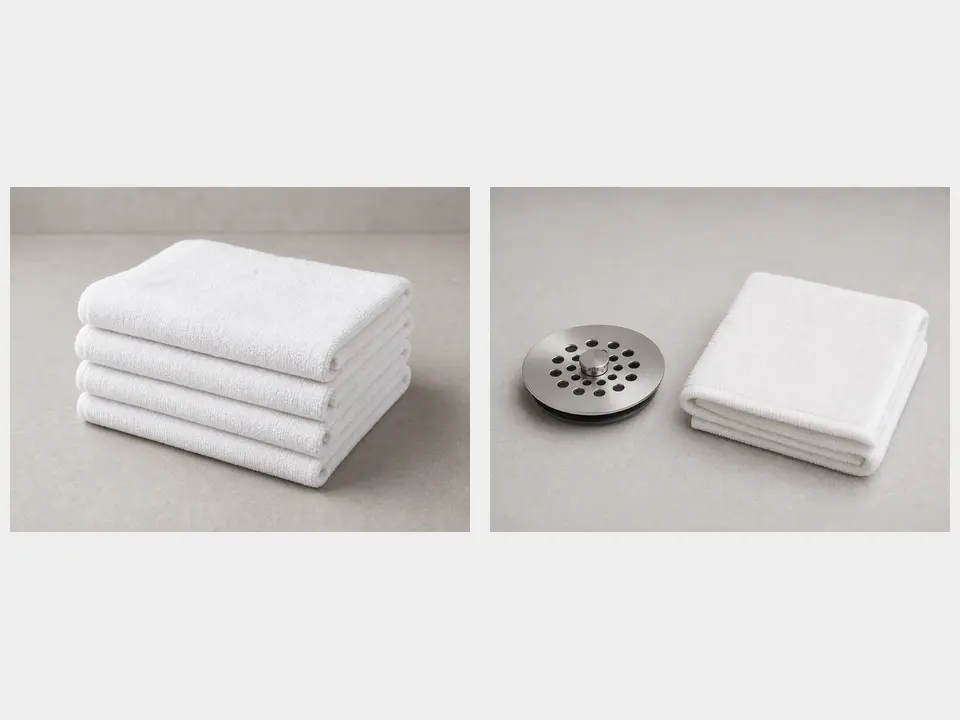

Bath towel or drain cover tool

Bath towel or drain cover

Use it for: Catches screws and small parts so they do not fall into the tub drain.

Shop drain covers

As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.

Step-by-step fix

Step 1: Make sure the anti scald stop kit is the right repair

  1. Look at how the handle behaves. This repair fits best when the handle turns too far toward hot, no longer has a clear hot limit, or the stop pieces behind the handle are broken, loose, or missing.
  2. Remove any decorative cap and inspect the handle screw area with the water off. If you can already see cracked plastic stop parts or a worn limit ring, that strongly points to the anti scald stop kit.
  3. If the tub has weak hot water everywhere in the house, or the temperature swings badly even when the handle stays still, the problem may be the mixing valve cartridge or the water heater instead of the stop kit.

If it works: You have a good reason to replace the stop kit and the issue appears to be at the handle limit parts.

If it doesn’t: If the water temperature problem affects other fixtures too, troubleshoot the cartridge or water heater before ordering stop parts.

Stop if:
  • The wall or trim area is leaking into the wall cavity.
  • The handle is loose because the valve body itself is moving in the wall.
  • The valve will not shut off fully or the cartridge is clearly failing, which points to a different repair path.

Step 2: Set up the tub area and remove the handle

  1. Lay a towel in the tub or cover the drain so small screws and clips cannot disappear.
  2. Turn the tub or shower valve fully off. You usually do not need to shut off house water for this handle-side repair, but do not work with the valve running.
  3. Pry off the decorative cap if there is one. Remove the handle screw with a screwdriver or loosen the set screw with the correct Allen key.
  4. Pull the handle straight off. If it sticks, wiggle it gently instead of forcing it hard enough to crack the trim.

If it works: The handle is off and the small hardware is kept in order.

If it doesn’t: If the handle is stuck from mineral buildup, apply gentle back-and-forth pressure and clean around the stem before trying again.

Stop if:
  • The handle will only come off by bending the valve stem.
  • The trim plate must be cut away or the wall surface is breaking apart during removal.

Step 3: Expose the stop parts and compare the replacement kit

  1. Remove any sleeve, adapter, or trim piece sitting directly behind the handle so you can see the anti scald stop parts clearly.
  2. Take a photo before removing anything. That gives you a reference for the order and orientation of the pieces.
  3. Lift off the old stop ring, limit collar, or related stop pieces one at a time. Keep them laid out in the same order they came off.
  4. Compare the old parts to the new bathtub handle anti scald stop kit. Match the shape, tabs, notches, and depth before installing anything.

If it works: The old stop parts are removed and the new kit matches the original layout closely enough to install.

If it doesn’t: If the new parts do not match the old tabs, splines, or stack-up order, pause and get the correct kit before reassembly.

Stop if:
  • The valve stem is damaged, stripped, or badly corroded.
  • A retaining clip or internal valve part came loose from deeper inside the valve body.

Step 4: Install the new anti scald stop kit

  1. Wipe away soap film, grit, and mineral buildup from the handle area so the new stop parts can seat fully.
  2. Install the new stop pieces in the same order and direction as the originals or your reference photo. Make sure tabs drop into their matching slots and the ring sits flat.
  3. Reinstall any adapter or sleeve that belongs between the stop kit and the handle.
  4. Put the handle back on loosely at first so you can check the turning range before tightening everything fully.

If it works: The new stop kit is seated correctly and the handle can be test-fitted without binding.

If it doesn’t: If the handle will not sit flush or the turning range feels wrong, remove it and recheck the order and orientation of the stop pieces.

Stop if:
  • The new stop parts cannot seat because the valve stem or trim parts are warped or broken.
  • The handle binds so hard that forcing it could crack the new kit.

Step 5: Set the hot-water limit

  1. Turn the water on and slowly rotate the handle toward hot while watching how far it can travel with the new stop in place.
  2. Adjust the stop position a little at a time so the handle still gives usable warm and hot water but does not swing farther than needed.
  3. Run the hottest tub water available through the normal handle range and check it with a thermometer. Fine-tune the stop if the water is hotter than you want at the tub.
  4. Once the limit feels right, tighten the handle screw or set screw and snap the decorative cap back on.

If it works: The handle now stops at a safer hot setting and still gives a normal usable temperature range.

If it doesn’t: If you cannot get a stable safe limit because the water keeps changing on its own, the cartridge or another plumbing issue may be the real cause.

Stop if:
  • The water becomes dangerously hot even with the stop set near its limit.
  • The handle turns past the stop because the stem connection is stripped or the wrong parts were installed.

Step 6: Test the repair in real use

  1. Run the tub through a normal warm-up, then move the handle from cold to warm to hot several times to make sure the stop catches consistently.
  2. Check that the handle feels secure, the trim sits flat, and no parts rub, click loosely, or slip past the limit.
  3. Use the tub or shower once more after a short break to confirm the setting holds after the parts settle in.

If it works: The handle moves smoothly, the hot limit stays where you set it, and the tub works normally in real use.

If it doesn’t: If the stop slips, the temperature is still erratic, or the handle range feels wrong, remove the handle and recheck part fit and stop orientation.

Stop if:
  • Water leaks from behind the trim after reassembly.
  • The handle repeatedly bypasses the stop, which usually means the wrong kit or a worn valve connection.

Replacement Parts

As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.

Verify the repair

  • The handle stops at the new limit every time you turn it toward hot.
  • The hottest water at the tub is reduced to the level you intended.
  • The handle is tight, the trim is flush, and no parts are left over.
  • There is no leaking from behind the handle or trim after testing.

FAQ

What does a bathtub handle anti scald stop kit do?

It limits how far the handle can turn toward full hot. That helps prevent accidental scalding and keeps the handle's temperature range predictable.

Do I need to shut off the house water to replace it?

Usually no, because the repair is done at the handle and trim side with the valve in the off position. If you end up removing deeper valve parts, then shut off the water first.

How do I know if I need the stop kit or the cartridge?

If the handle no longer has a proper hot limit or the stop pieces are visibly broken, the stop kit is a good bet. If temperature swings on its own, the valve drips, or the tub will not mix correctly, the cartridge may be the real problem.

Can I reuse the old stop parts if they look mostly okay?

You can, but worn plastic tabs and cracked rings often slip again soon. If you already have the handle apart, replacing damaged stop parts is usually the better long-term fix.

What if I cannot find an exact match for my old stop kit?

Use the old parts as a visual guide and match the tab pattern, stem connection, and handle style as closely as possible. If the new pieces do not seat flat or limit travel correctly, do not force them.
