How to Replace a Condensate Float Switch
To replace a condensate float switch, shut off power to the HVAC system, remove the old switch from the drain line or pan, move the low-voltage wires to the new switch the same way, reinstall it securely, and test that the system runs normally and shuts off when the switch is lifted.
A condensate float switch helps stop water damage by shutting the system down when the drain backs up. Replacement is usually straightforward, but you need to work carefully around HVAC equipment and low-voltage wiring. If the wiring is unclear or the drain setup is unusual, stop and call an HVAC technician.
Before you start: Match the replacement part to your exact condensate drain before ordering.
Safety first
- Shut off power to the indoor HVAC unit before opening panels or touching wiring near the air handler or furnace.
- Work carefully around sheet metal edges inside the equipment cabinet.
- Do not force plastic drain fittings. They can crack and create a leak.
- If the wiring is unclear or the replacement does not match the original setup, stop and get professional help.
Tools you may need
Needle nose pliers
Use it for: To pull small wire connectors and guide wires into place.
Shop needle-nose pliers
Wire labels or masking tape
Use it for: To mark wires before moving them to the new switch.
Shop wire labels

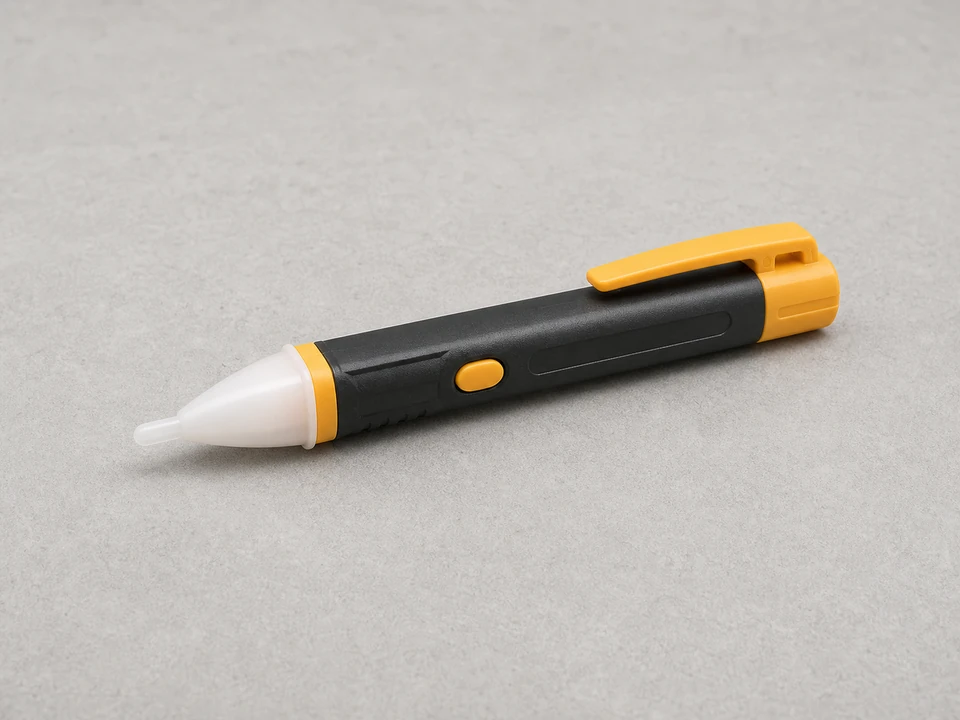

Voltage tester
Use it for: To confirm power is off before touching equipment near the air handler or furnace.
Shop voltage testers

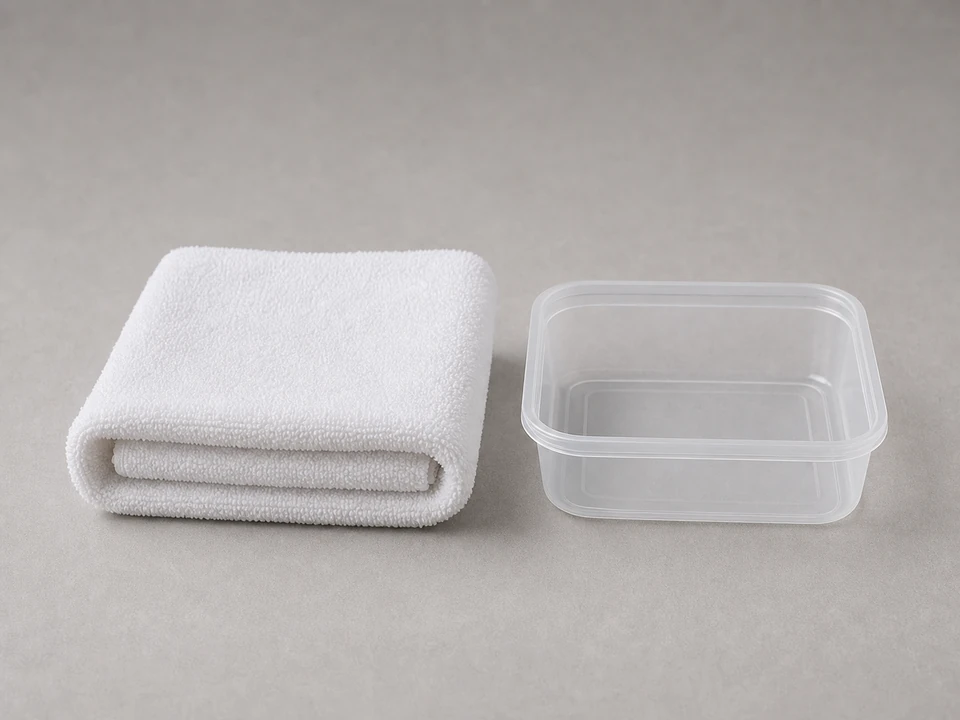

Towel or shallow container
Use it for: To catch any water from the drain line or pan during removal.
Shop absorbent towelsAs an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
Step-by-step fix
Step 1: Shut off the system and get access
- Turn the thermostat off so the system does not try to start during the repair.
- Shut off power to the indoor HVAC unit at the service switch or breaker.
- Remove the access panel if needed so you can reach the condensate drain area and the float switch wiring.
- Place a towel or shallow container under the switch area in case a little water spills out.
If it works: The system is off, the switch is visible, and the work area is protected from minor water drips.
If it doesn’t: If you cannot clearly identify the float switch or safely reach it, stop and arrange service.
Stop if:
- You are not sure which breaker or disconnect controls the indoor unit.
- The access area is wet around electrical parts.
- You smell burning, see damaged wiring, or find corrosion on control components.
Step 2: Confirm the old switch setup
- Look at how the old condensate float switch is installed, either in the drain line, on a tee, or in a drain pan.
- Take a clear photo of the switch, wire colors, and terminal positions before disconnecting anything.
- Label the wires so you can move them to the new switch in the same order.
- Check whether the switch is threaded, clipped, or mounted with screws so you know how it comes out.
If it works: You have a clear record of the original wiring and mounting position.
If it doesn’t: If the wiring path or terminal layout is confusing, do not guess. Stop and call a technician.
Stop if:
- Wire colors do not match the terminals in a clear way.
- Multiple low-voltage wires are bundled together and you cannot tell which pair goes to the switch.
- The switch appears integrated into a larger control assembly rather than a simple standalone part.
Step 3: Remove the old condensate float switch
- Loosen the terminal screws or disconnect the wire leads from the old switch.
- Keep the labeled wires separated so they do not get mixed up.
- Unscrew, unclip, or unmount the old switch from the drain fitting or pan.
- Wipe away any slime or debris around the mounting point so the new switch can seat properly.
If it works: The old switch is out and the mounting area is clean enough for the replacement.
If it doesn’t: If the switch is stuck, avoid forcing brittle plastic drain parts. Recheck how it is attached and work it loose gently.
Stop if:
- The drain fitting cracks or starts to twist with the switch.
- Water begins leaking steadily from the drain connection.
- The wires are too short or damaged to reconnect safely.
Step 4: Install the new switch in the same position
- Compare the new condensate float switch to the old one to confirm the mounting style and terminal layout are compatible.
- Install the new switch in the same orientation as the old one so the float can move freely.
- Tighten it just enough to hold securely without stressing plastic drain parts or the pan.
- Make sure the float is not rubbing against the side of the fitting, pan, or nearby tubing.
If it works: The new switch is mounted securely and the float moves up and down without binding.
If it doesn’t: If the new part does not fit the opening or sits at the wrong angle, stop and verify the replacement before continuing.
Stop if:
- The replacement does not match the old switch connection style.
- The float cannot move freely after installation.
- The drain connection will not seal or hold the switch securely.
Step 5: Reconnect the wires and close the unit
- Move the labeled wires to the new switch one at a time, matching the same terminals or wire positions shown in your photo.
- Tighten terminal screws or reconnect leads so the wires are secure but not pinched.
- Neatly route the wires away from the float and away from sharp metal edges.
- Reinstall the access panel once the wiring and switch placement look correct.
If it works: The wiring matches the original setup and the unit is reassembled.
If it doesn’t: If the system wiring no longer matches your photo or labels, stop before restoring power.
Stop if:
- A wire will not stay secured in the terminal.
- Insulation is damaged near the connection point.
- You are unsure whether the switch should be wired normally open or normally closed for your system.
Step 6: Restore power and test the switch
- Turn the breaker or service switch back on and set the thermostat to call for cooling if the system is in season.
- Confirm the system starts normally with the float in its normal down position.
- Test the safety function by gently lifting the float or following the switch's normal test movement if accessible.
- Verify that the system shuts off or will not run when the float is raised, then returns to normal when released.
- Watch the area for a few minutes to make sure there is no water leak around the new switch.
If it works: The HVAC system runs normally, the float switch interrupts operation when lifted, and there are no leaks.
If it doesn’t: If the system will not run, shuts off immediately, or the switch test does nothing, turn power back off and recheck the wiring and fit. If it still does not work, call a technician.
Stop if:
- The breaker trips after power is restored.
- The system behaves erratically after the replacement.
- Water leaks from the drain connection or pan after testing.
Replacement Parts
Find a condensate float switch on Amazon
Match the replacement part to your exact condensate drain before ordering.
As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
Verify the repair
- The new condensate float switch is mounted in the same location and orientation as the old one.
- The float moves freely and is not blocked by tubing, wires, or the side of the drain fitting.
- The HVAC system runs normally when the float is down.
- The system stops or will not run when the float is lifted during the test.
- No water leaks appear around the switch or drain connection after the repair.
FAQ
What does a condensate float switch do?
It helps prevent overflow by stopping the HVAC system when condensate water backs up in the drain line or pan.
Can I replace a condensate float switch myself?
Many homeowners can replace a simple float switch if the wiring is clear and the switch is easy to reach. If the setup is confusing or the drain connection is fragile, it is safer to call a technician.
Do I need to replace the switch if the drain is clogged?
Not always. A clogged drain can trigger a working switch. Clear the drain first if needed. Replace the switch if it is damaged, stuck, leaking, or fails its test.
How do I know I bought the right replacement?
Match the mounting style, wiring connection style, and general installation location to your old switch. If the new part does not fit the drain or pan the same way, do not force it.
Why won't my system start after I replaced the switch?
The most common causes are wires moved to the wrong terminals, a loose connection, or a switch that is installed in the wrong position. Turn power off and compare the wiring to your photo. If it still will not run, call for service.
