How to Replace a Humidifier Humidistat
To replace a humidifier humidistat, first make sure the control is actually the failed part, then shut off power to the humidifier and furnace, remove the old humidistat, move the wires to the matching terminals on the new one, mount it, and test that the humidifier turns on and off as you adjust the setting.
A bad humidistat can keep a whole-house humidifier from running at all, or make it run when it should be off. This job is usually straightforward if you work carefully, label the wires, and install a matching replacement.
Before you start: Match the replacement part to your exact humidifier before ordering.
Safety first
- Shut off power to the furnace and humidifier before opening the control or moving wires.
- Use a non-contact voltage tester before touching any wiring.
- Work carefully around sheet metal edges on duct-mounted controls.
- Do not continue if you find burned wiring, active moisture around the control, or crumbling insulation.
Tools you may need
Non contact voltage tester
Use it for: To confirm power is off before touching wiring.
Shop non-contact voltage testers
Needle nose pliers
Use it for: To pull small wire ends and guide them onto terminals.
Shop needle-nose pliers

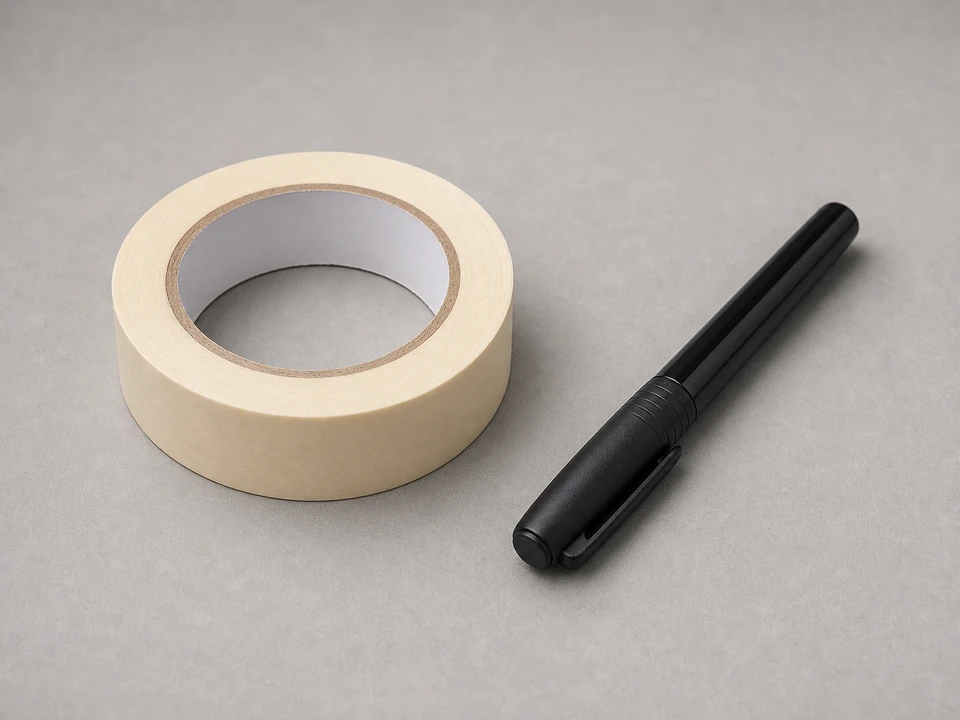

Masking tape and marker
Use it for: To label wires before moving them to the new control.
Shop masking tape and markers
Phone or camera
Use it for: To take a clear reference photo of the original wiring.
Shop phone repair standsAs an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
Step-by-step fix
Step 1: Confirm the humidistat is the likely problem
- Turn the humidistat setting up and listen for the humidifier to respond during a heating call if your system requires one.
- Note whether the humidifier never starts, never shuts off, or only works when the control is moved around.
- Check for obvious issues first, like a clogged water panel, disconnected tubing, tripped service switch, or a furnace power problem.
- Remove the humidistat cover if needed and look for cracked plastic, corrosion, loose terminals, or a broken adjustment knob.
If it works: You have a good reason to suspect the humidifier humidistat instead of a general power, water supply, or furnace issue.
If it doesn’t: If the humidifier has no power, no water, or other damaged parts, fix those issues first before replacing the control.
Stop if:
- You smell burning, see melted insulation, or find scorched wiring.
- The wall or duct area around the control is wet enough to damage wiring.
- You are not sure which equipment the control operates.
Step 2: Shut off power and document the wiring
- Turn off power to the furnace and humidifier at the service switch or breaker.
- Use a non-contact voltage tester to confirm the humidistat wiring is not live before touching it.
- Remove the humidistat cover and take a clear photo showing every wire and terminal label.
- Wrap a small piece of masking tape around each wire and mark it so you can move it to the same terminal on the new control.
If it works: Power is off and you have a clear wiring reference before disconnecting anything.
If it doesn’t: If you cannot verify power is off, stop and identify the correct breaker or service switch before continuing.
Stop if:
- The voltage tester still shows live power at the control.
- The wiring is brittle, crumbling, or badly corroded.
Step 3: Remove the old humidistat
- Loosen the terminal screws and pull the wires free one at a time, keeping the labels attached.
- Remove the mounting screws holding the humidistat to the duct, wall, or mounting plate.
- Pull the old control away carefully so the wires do not slip back into the opening.
- Compare the old humidistat to the new one and make sure the terminal markings and mounting style are close enough to transfer the wiring safely.
If it works: The old humidistat is off and the replacement appears to be a proper match.
If it doesn’t: If the new part does not match the terminal layout or mounting style well enough to wire confidently, pause and verify the correct replacement.
Stop if:
- The opening reveals hidden water damage, rusted sheet metal, or damaged low-voltage cable.
- The replacement control is clearly not compatible with your setup.
Step 4: Install the new humidistat
- Mount the new humidistat in the same location or on the same plate so it can sense room or duct conditions as intended.
- Move each labeled wire to the matching terminal on the new control, using your photo as backup.
- Tighten terminal screws firmly without crushing the wire.
- Tuck the wires neatly so they do not get pinched by the cover or rub against sharp metal edges.
- Set the control to a middle setting for the first test and reinstall the cover.
If it works: The new humidistat is mounted securely and wired to the matching terminals.
If it doesn’t: If a wire seems too short or will not stay secure, disconnect power again and correct the wire connection before testing.
Stop if:
- A terminal will not tighten or the wire insulation is damaged back near the cable jacket.
- The control cannot be mounted securely and shifts when touched.
Step 5: Restore power and test the control response
- Turn power back on to the furnace and humidifier.
- Call for heat if your humidifier only operates with the furnace running.
- Turn the humidistat above the current indoor humidity level and listen for the humidifier solenoid, fan, or water flow to start.
- Then turn the setting down and confirm the humidifier shuts off.
- If your control has a test or reset position, use it only as marked on the control label.
If it works: The humidifier responds when the humidistat setting is raised and stops when the setting is lowered.
If it doesn’t: If nothing changes, recheck the wire placement against your photo and the terminal labels, then inspect the humidifier for a separate power, water, or solenoid problem.
Stop if:
- The system trips a breaker, sparks, or makes a burning smell after power is restored.
- The humidifier runs continuously no matter where the new control is set.
Step 6: Verify the repair in normal use
- Let the system run through normal heating cycles and watch for stable humidifier operation instead of short cycling or nonstop running.
- Check after several hours or the next day that indoor humidity is improving and the humidifier is not leaking or over-humidifying.
- Make a small adjustment to the setting if needed so the system maintains comfort without excess window condensation.
If it works: The humidifier now turns on and off normally in real use, and the new humidistat holds the setting.
If it doesn’t: If humidity still does not improve, the root cause may be elsewhere in the humidifier, water delivery, airflow, or control circuit.
Stop if:
- You see repeated condensation, water leakage, or signs the humidifier is staying on too long.
- The new control works briefly but fails again, suggesting a wiring or equipment problem beyond the humidistat.
Replacement Parts
Find a humidifier humidistat on Amazon
Match the replacement part to your exact humidifier before ordering.
As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
Verify the repair
- The humidifier starts when the humidistat is turned up under the right operating conditions.
- The humidifier shuts off when the setting is turned down.
- The control feels secure on the wall or duct and the cover fits without pinching wires.
- Humidity improves in normal use without constant running or excess condensation.
FAQ
How do I know the humidistat is bad and not the humidifier itself?
A bad humidistat often causes no response when you change the setting, or it may leave the humidifier running when it should be off. If the humidifier also has power, water, and no obvious damage, the control becomes a stronger suspect.
Do I need to shut off power if the humidistat uses low voltage?
Yes. Low-voltage controls are safer than line voltage, but you should still shut off power and verify it is off before handling wires.
Can I replace the humidistat without labeling the wires?
It is possible, but it is much riskier. A quick photo and wire labels make the swap much easier and help prevent miswiring.
Why does my humidifier only run when the furnace is heating?
Many whole-house humidifiers are designed to operate only during a heat call. That is normal for many systems, so test the new humidistat under the same conditions.
What if the new humidistat is installed but humidity still stays low?
The problem may be a clogged water panel, closed water supply, bad solenoid valve, poor airflow, or a separate wiring issue. The humidistat is only one part of the control chain.
