How to Replace a Humidifier Water Panel
To replace a humidifier water panel, turn the humidifier off, open the panel housing, remove the old scaled panel, install the correct new panel in the same orientation, then restore water and test for even wetting without leaks.
A water panel slowly clogs with mineral buildup, so the humidifier can stop adding enough moisture even though the fan and water supply still seem normal. This is usually a straightforward replacement if the housing is accessible and the unit is otherwise in good shape.
Before you start: Match the replacement part to your exact humidifier before ordering.
Safety first
- Sheet metal edges inside HVAC cabinets can be sharp, so wear gloves and move slowly.
- Shut off the humidifier before opening the housing so the fan or water feed does not start while your hands are inside.
- Use a towel or tray to catch drips and mineral debris so water does not reach nearby electrical parts or flooring.
- Do not force plastic frames, covers, or fittings. If something does not line up, recheck the part fit and orientation.
Tools you may need
Screwdriver or nut driver set
Use it for: Opens the humidifier cover or panel frame on many whole-house units.
Shop screwdriver and nut driver sets

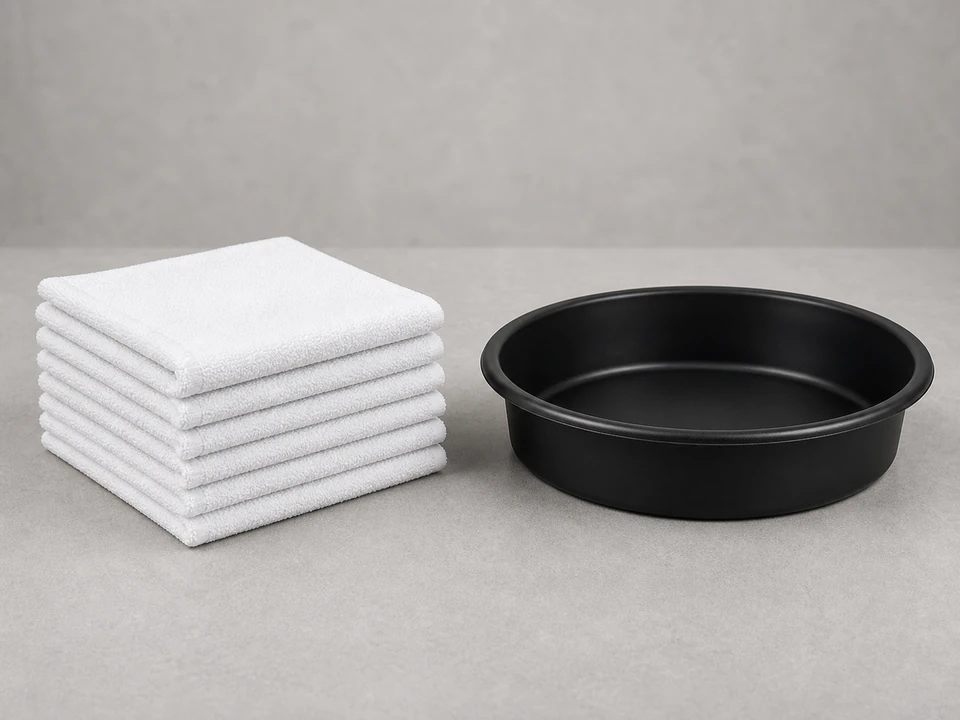

Small towel or shallow tray
Use it for: Catches drips when you remove the old water panel.
Shop absorbent towels
Flashlight
Use it for: Helps you see the panel orientation, scale buildup, and water distribution area.
Shop flashlights
Soft brush
Use it for: Lets you clear loose mineral debris from the housing before installing the new panel.
Shop soft cleaning brushesAs an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
Step-by-step fix
Step 1: Confirm the water panel is the likely problem
- Set the thermostat and humidifier control so the humidifier should be calling for humidity.
- Look for signs the old water panel is spent: heavy white scale, a clogged surface, crumbling material, or poor moisture output even though water is reaching the unit.
- Check that the humidifier housing is intact and that the water feed tube appears connected.
- Compare your replacement humidifier water panel to the old one before opening the package fully.
If it works: You have a matching replacement panel and the old one shows clear wear or mineral buildup that makes replacement a sensible next step.
If it doesn’t: If the old panel looks fairly clean and dry because no water is reaching it, check the water supply, feed tube, and humidifier operation before replacing parts.
Stop if:
- You see active leaking from a cracked housing, broken water line, or damaged drain connection.
- The replacement panel does not match the size or shape of the old one.
Step 2: Shut the unit down and open the panel housing
- Turn the humidifier off at its control. If the unit plugs into an outlet nearby, unplug it. If it is hardwired, switch off power at the service switch or breaker if you can identify it confidently.
- Close the humidifier's water supply valve if there is one on the feed line.
- Place a towel or shallow tray under the housing to catch drips.
- Remove the cover or open the access panel using the fastener style on your unit.
If it works: The humidifier is off, the water supply is closed, and the water panel housing is open and ready to service.
If it doesn’t: If the cover will not come off easily, look again for hidden clips or screws rather than forcing it.
Stop if:
- You cannot safely shut off power or water to the humidifier.
- The access panel is stuck because the cabinet is bent or damaged.
Step 3: Remove the old water panel
- Slide out or lift out the water panel frame according to how it sits in the housing.
- Note the panel orientation before removing it completely, especially which side faces the water distribution tray and whether there is an airflow marking.
- Pull the old humidifier water panel out of the frame and keep it over the towel or tray so mineral residue does not spill everywhere.
- Inspect the frame, top water distribution area, and drain path for loose scale or sludge.
If it works: The old panel is out, and you know how the new one needs to sit in the frame and housing.
If it doesn’t: If the panel seems stuck, wiggle the frame gently and clear visible mineral crust instead of prying hard on plastic parts.
Stop if:
- The frame is cracked, badly corroded, or will not hold a new panel securely.
- The water distribution tray or drain area is broken or detached.
Step 4: Clean the housing and install the new panel
- Brush out loose mineral debris from the frame, tray area, and nearby housing surfaces.
- Wipe away buildup that could block water from spreading across the top of the new panel.
- Insert the new humidifier water panel into the frame in the same orientation as the old one.
- Reinstall the frame so the top of the panel lines up under the water distribution area and the bottom sits properly in place.
If it works: The new panel is seated squarely, the frame is secure, and nothing is blocking water flow across the top edge.
If it doesn’t: If the panel rocks, bows, or will not seat fully, remove it and recheck orientation and fit before closing the housing.
Stop if:
- The new panel cannot be installed without forcing it.
- The frame or housing will not close because the replacement part is clearly the wrong fit.
Step 5: Reassemble and restore water and power
- Close the humidifier cover or reinstall the access panel and fasteners.
- Open the water supply valve slowly and watch the housing area for immediate leaks.
- Restore power to the humidifier.
- Set the humidifier control to call for humidity so the unit runs.
If it works: The unit is back together, water is on, power is restored, and the humidifier is ready for a live test.
If it doesn’t: If you see dripping right away, shut the water back off and check that the frame, cover, and feed area are seated correctly.
Stop if:
- Water leaks from a cracked fitting, split tube, or damaged cabinet seam.
- The unit trips a breaker or shows signs of electrical trouble when power is restored.
Step 6: Verify the new panel works in real use
- Let the humidifier run long enough to confirm water is reaching the top of the panel and wetting it evenly.
- Check that excess water drains away normally instead of overflowing the housing.
- Listen for normal operation and look for steady, controlled moisture movement rather than splashing or leaking.
- Recheck the area after a short run cycle to make sure the repair is holding.
If it works: The new water panel gets wet evenly, the unit drains properly, and there are no leaks during operation.
If it doesn’t: If the panel stays dry or only wets in one small area, inspect the water feed, distribution tray, and supply valve because the problem may be upstream of the panel.
Stop if:
- Water overflows the housing or drain area during operation.
- The humidifier still does not run or deliver water after the panel replacement, pointing to a different fault.
Replacement Parts
Find a humidifier water panel on Amazon
Match the replacement part to your exact humidifier before ordering.
As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
Verify the repair
- The new humidifier water panel matches the old one and sits in the frame without bending or forcing.
- Water reaches the top of the panel and spreads across it instead of bypassing it.
- The humidifier drains normally with no cabinet leaks or overflow.
- The unit completes a normal call for humidity and the repair still looks good after a short run.
FAQ
How often should I replace a humidifier water panel?
That depends on water quality and how much the humidifier runs, but many homeowners replace it at least once per heating season. Hard water can shorten its life.
What does a bad humidifier water panel look like?
It usually has heavy white mineral scale, clogged openings, crumbling material, or uneven wetting. Any of those can reduce moisture output.
Can I clean and reuse a humidifier water panel?
A light rinse may remove loose debris, but a scaled water panel is usually a replace item, not a restore item. Once minerals pack into the media, performance drops.
Why is my new water panel still dry?
The issue may be with the water supply, feed tube, saddle valve, solenoid, or distribution tray rather than the panel itself. The panel cannot work if water never reaches it.
Do I need to turn off the water before replacing the panel?
Yes, if your humidifier has a water supply valve, close it first. That helps prevent drips and makes the swap cleaner and easier.
