How to Replace a Humidifier Water Supply Tubing
If the humidifier water line is cracked, kinked, brittle, or leaking at the tubing itself, replacing the humidifier water supply tubing is the right fix.
This is a straightforward repair for many whole-home humidifiers. The goal is to shut off the water, swap in matching tubing, and restore flow without drips at either connection.
Before you start: Match the replacement part to your exact humidifier before ordering.
Safety first
- Shut off the humidifier water supply before disconnecting the line.
- Use caution around furnace or humidifier wiring if the area is wet.
- Support small valves and fittings while loosening nuts so you do not twist connected piping loose.
- Keep the new tubing away from sharp metal edges and hot surfaces inside the mechanical area.
Tools you may need
Bucket or shallow pan
Use it for: To catch the small amount of water left in the line when you disconnect it.
Shop drip pans and buckets
Towels or rags
Use it for: To protect the furnace area and wipe fittings dry for leak checks.
Shop absorbent shop towels

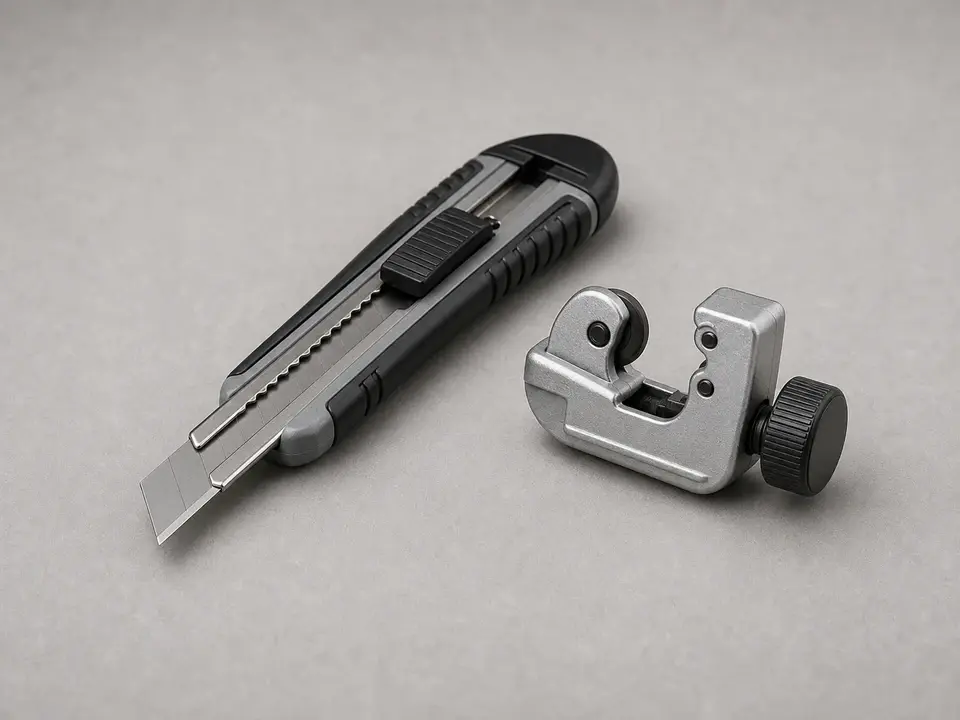

Tubing cutter or sharp utility knife
Use it for: To make a clean square cut if the replacement tubing needs trimming.
Shop tubing cutters
Flashlight
Use it for: To inspect the humidifier connection, shutoff valve, and any hidden drips.
Shop flashlightsAs an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
Step-by-step fix
Step 1: Confirm the tubing is the problem
- Look along the full water line from the shutoff valve to the humidifier inlet.
- Check for cracks, splits, rubbing wear, mineral buildup around a pinhole, or a kinked section that will not hold its shape.
- Dry the tubing and fittings, then watch closely while the humidifier is calling for water or just after a cycle.
- Make sure the leak is coming from the tubing or its end connection, not from the humidifier cabinet, drain line, solenoid valve, or shutoff valve body.
If it works: You have confirmed the humidifier water supply tubing is damaged or leaking and is the part to replace.
If it doesn’t: If the tubing stays dry but water appears from the humidifier body, drain, or valve assembly, diagnose that part instead before replacing the line.
Stop if:
- The shutoff valve itself is leaking from the stem or body.
- You find rusted-through metal, damaged wiring, or water dripping onto electrical components.
- The leak source is inside the humidifier cabinet and not accessible as a simple tubing replacement.
Step 2: Shut off the water and prepare the area
- Turn off the small water shutoff feeding the humidifier.
- If the humidifier is powered separately and you will be working near wiring, switch off power to the humidifier or furnace at the service switch or breaker.
- Place a bucket or shallow pan under the tubing connections.
- Lay down towels around the furnace or air handler base so a small spill does not spread.
If it works: The water supply is off and the work area is protected.
If it doesn’t: If the shutoff will not fully close, stop the job and use the home's next upstream water shutoff before disconnecting the line.
Stop if:
- The shutoff valve will not close and you cannot isolate the water safely.
- The area around the humidifier is wet enough to create an electrical hazard.
Step 3: Remove the old water supply tubing
- Loosen the tubing connection at the humidifier first and let any trapped water drain into the pan.
- Disconnect the other end at the shutoff valve or feed fitting.
- Pull the old tubing out carefully and keep it intact so you can use it as a length and routing guide.
- Inspect both connection points for old ferrules, inserts, debris, or mineral crust that could keep the new line from sealing.
If it works: The old tubing is removed and both connection points are exposed for the new line.
If it doesn’t: If a fitting is stuck, apply steady pressure with the wrench and support the valve or mating fitting so you do not twist it loose from the pipe.
Stop if:
- A fitting starts turning in the pipe or sheet metal instead of just loosening the nut.
- A connection is badly corroded, cracked, or damaged enough that new tubing will not seal to it.
Step 4: Match and prepare the replacement tubing
- Compare the new tubing to the old line for diameter, material type, and overall length.
- If the new tubing is longer than needed, cut it cleanly and square so the end seats properly in the fitting.
- Route the tubing along the same general path as the original, keeping it away from sharp sheet metal edges, moving parts, and hot surfaces.
- Avoid tight bends that can kink the line and restrict water flow.
If it works: The new humidifier water supply tubing is sized correctly and routed cleanly.
If it doesn’t: If the replacement does not match the old tubing size or connection style, pause and get the correct line before forcing the install.
Stop if:
- The only way to route the tubing would leave it pinched, rubbing, or touching a hot surface.
- The replacement tubing is clearly the wrong size for the existing fittings.
Step 5: Install and tighten the new tubing
- Insert the tubing fully into the humidifier-side fitting and start the nut by hand to avoid cross-threading.
- Connect the supply-side end the same way, making sure the tubing stays fully seated as you tighten.
- Snug each connection firmly with a wrench, but do not overtighten and crush the tubing or damage the fitting.
- Wipe both fittings and the tubing dry so any new drip will be easy to spot.
If it works: The new tubing is installed with both ends seated and tightened.
If it doesn’t: If a nut will not thread smoothly by hand, back it off and realign the tubing before tightening again.
Stop if:
- A fitting cross-threads, cracks, or will not hold the tubing securely.
- The tubing slips out of a connection instead of seating firmly.
Step 6: Restore water and verify the repair holds
- Slowly reopen the humidifier water shutoff and watch both ends of the tubing as pressure returns.
- Check for drips right away, then run the humidifier through a normal call for water if you can.
- Feel and look along the full tubing run for seepage, especially near bends and connection points.
- After the humidifier cycles, inspect the area again a few minutes later to make sure no slow leak appears.
If it works: The humidifier runs with normal water flow and the new tubing stays dry during and after operation.
If it doesn’t: If a fitting seeps, shut the water back off, reseat the tubing, and retighten the connection slightly before testing again.
Stop if:
- Water continues leaking after reseating and retightening the connections.
- The humidifier still does not receive water even though the tubing is installed correctly and the shutoff is open.
- You notice a separate leak from the solenoid valve, shutoff valve, or humidifier cabinet.
Replacement Parts
Find a humidifier water supply tubing on Amazon
Match the replacement part to your exact humidifier before ordering.
As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
Verify the repair
- Both tubing connections stay dry when the water is turned back on.
- The tubing is routed without kinks, rubbing, or sagging into moving or hot parts.
- The humidifier receives water normally during a call for humidity.
- No slow drips appear several minutes after the cycle ends.
FAQ
How do I know the tubing needs replacement instead of just tightening?
If the tubing is cracked, brittle, kinked, rubbed through, or leaking from the tubing wall itself, replacement is the better fix. If the leak is only at a fitting, reseating and slight retightening may solve it.
Can I reuse the old compression hardware?
Sometimes, but only if it is in good shape and matches the new tubing correctly. If the old ferrule or insert is damaged, deformed, or does not fit the new line well, use new matching hardware.
What if the humidifier still leaks after I replace the tubing?
The leak may be coming from the shutoff valve, solenoid valve, humidifier pad housing, or drain line instead of the supply tubing. Dry everything and trace the first point where water appears.
Does the replacement tubing have to be the exact same length?
It does not have to be exact, but it should be close. Too short can strain the fittings, and too long can kink or rub on nearby parts.
Why is there no water flow after I install the new tubing?
Check for a kink, a closed shutoff valve, or a connection that is not fully seated. If the tubing is clear and installed correctly, the problem may be with the humidifier's water valve or control system instead.
