Tape measure
Use it for: To measure pipe diameter and the length of each insulated section before cutting new pieces.
Shop tape measuresWater pipe protection
How to Replace Pipe Insulation For Water Pipes
To replace pipe insulation for water pipes, remove the old damaged insulation, measure the pipe diameter and run length, cut new insulation to fit, seal the seams and joints, and then check that all exposed cold sections are covered without gaps.
This is a practical repair when insulation is split, soaked, missing, or no longer covering pipes in cold areas like crawlspaces, basements, garages, or exterior walls. Good coverage helps slow heat loss and lowers the chance of freezing.
Before you start: Match the replacement part to your exact frozen pipe before ordering.
Safety first
- Wear gloves when removing old insulation and cutting new pieces.
- Cut away from your body with a sharp utility knife so the blade does not slip.
- Do not trap active leaks under new insulation.
- Be careful in crawlspaces, basements, and utility areas where footing, lighting, or nearby wiring may be poor.
Tools you may need
Utility knife
Use it for: To cut foam or wrap insulation cleanly to length.
Shop utility knives
Clean rag
Use it for: To wipe dust and moisture off the pipe so the new insulation sits flat.
Shop cleaning rags

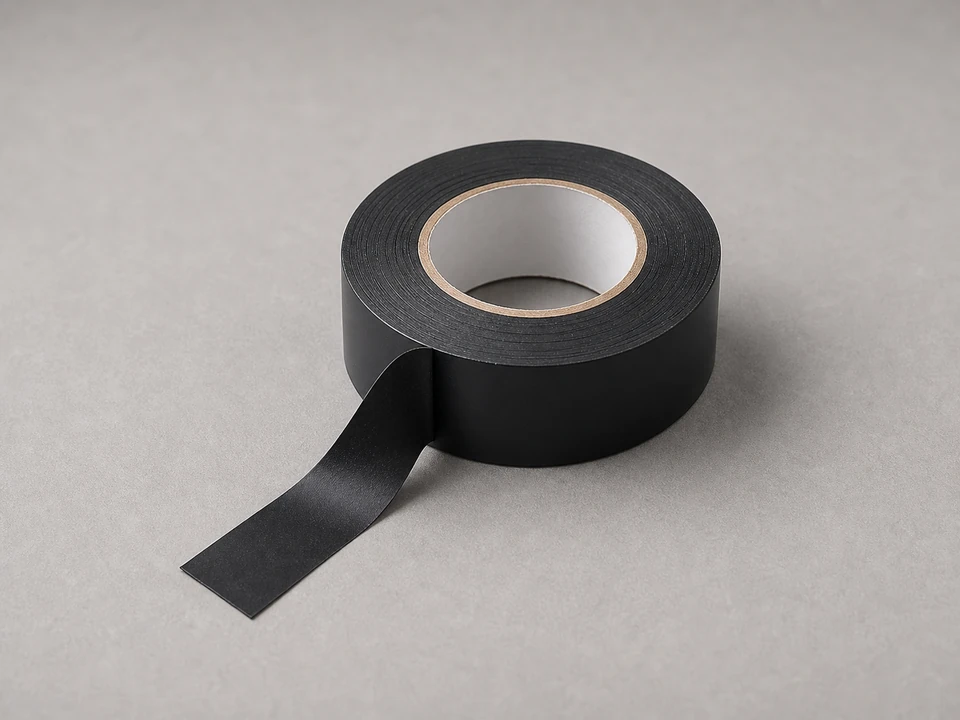

Insulation tape
Use it for: To seal seams, joints, and short gaps so cold air cannot reach the pipe as easily.
Shop insulation tape
Work gloves
Use it for: To protect your hands while removing old material and cutting new insulation.
Shop work glovesAs an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
Step-by-step fix
Step 1: Make sure pipe insulation is the right repair
- Look at the water pipe where freezing risk or heat loss is a problem.
- Check whether the existing insulation is cracked, compressed, waterlogged, moldy, missing in sections, or hanging loose.
- Confirm the pipe itself is still intact and that the problem is poor protection, not an active leak or a burst section.
- Note every exposed area, including elbows, tees, valves, and short bare sections near wall penetrations.
If it works: You have confirmed the pipe needs new insulation and the pipe itself does not appear to be the failed part.
If it doesn’t: If the insulation looks fine but you still have low pressure or signs of freezing, the issue may be a frozen or damaged pipe section farther along the line.
Stop if:
- You find an active water leak, a split pipe, or heavy corrosion.
- The old insulation is soaked because water is entering from a leak you have not fixed yet.
- You see mold, pest damage, or hidden wall or crawlspace damage that needs a larger repair first.
Step 2: Remove the old insulation and clean the pipe
- Put on gloves and pull off loose insulation by hand.
- Use a utility knife carefully to slit stubborn foam or wrap lengthwise so it comes off without stressing the pipe.
- Remove old tape, adhesive, and debris from the pipe surface.
- Wipe the pipe dry and clean so the new insulation can sit tight against it.
- Let any damp area dry before installing the replacement.
If it works: The pipe is exposed, clean, and dry, with the old insulation fully removed from the section you are repairing.
If it doesn’t: If adhesive residue or dirt keeps the new insulation from sitting flat, keep cleaning until the pipe surface is reasonably smooth and dry.
Stop if:
- The pipe moves excessively when you touch it.
- You uncover a pinhole leak, cracked fitting, or badly rusted section.
- The pipe is frozen solid and you cannot safely access it without forcing or heating it.
Step 3: Measure the pipe and cut the new insulation to fit
- Measure the pipe diameter so you choose insulation with the correct inside size.
- Measure the length of each straight run you need to cover.
- Cut the new insulation pieces to length with a utility knife.
- Dry-fit each piece before sealing anything, and trim as needed so the ends meet neatly.
- Plan shorter pieces around elbows, tees, and valves so you can cover as much exposed pipe as possible.
If it works: You have replacement pieces cut to the right size and ready to install without large gaps.
If it doesn’t: If the insulation feels too loose or will not close around the pipe, recheck the pipe diameter and use the correct size before continuing.
Stop if:
- The pipe layout is too crowded to insulate without pressing hard on fittings or electrical wiring nearby.
- You cannot identify the pipe size well enough to choose a proper fit.
Step 4: Install the new insulation on the straight pipe runs
- Open the slit in each insulation piece and press it over the pipe.
- Seat the insulation fully so it wraps the pipe evenly instead of twisting or riding on one edge.
- Push adjoining pieces together so the ends meet closely.
- If the insulation has a self-sealing edge, press the seam closed along the full length.
- If it does not, hold the seam closed and secure it with insulation tape at regular intervals and at both ends.
If it works: The straight pipe runs are covered snugly, and the seams stay closed without springing open.
If it doesn’t: If a seam keeps opening, remove that piece and recut or replace it with a better-fitting section rather than forcing it.
Stop if:
- Closing the insulation requires enough force to strain the pipe or loosen a fitting.
- The pipe surface is still wet and trapping moisture under the insulation.
Step 5: Seal joints, fittings, and any remaining exposed spots
- Add short cut pieces around elbows, tees, and other shape changes.
- Tape all butt joints where two pieces meet so cold air cannot enter through the seam.
- Cover small bare sections near hangers or wall openings as much as the space allows.
- Make sure shutoff handles and service points you may need later are still accessible.
- Press all tape firmly so it stays attached in a cool or damp area.
If it works: The pipe is insulated continuously with no obvious bare sections on the cold side of the run.
If it doesn’t: If you still have exposed pipe you cannot cover neatly, add another small piece or retape the area until coverage is as complete as possible.
Stop if:
- A fitting, valve, or connection is leaking and the insulation would hide the problem.
- You discover a larger uninsulated area inside a wall, ceiling, or inaccessible cavity that needs a broader repair plan.
Step 6: Verify the repair holds in real conditions
- Check that the insulation stays in place after you finish and does not sag or split back open.
- Run water through the line and make sure no taped joint loosens from vibration or moisture.
- Recheck the area during the next cold period or after several hours in a chilly space.
- Look for any new condensation, exposed gaps, or sections that slipped away from the pipe.
- Retape or replace any loose piece right away so the pipe stays protected.
If it works: The insulation remains snug, the pipe stays covered in real use, and there are no new exposed sections or moisture problems.
If it doesn’t: If the pipe still freezes, sweats heavily, or loses pressure in cold weather, you may need to insulate additional nearby sections or have the pipe system checked for a deeper freeze or airflow problem.
Stop if:
- The pipe freezes again even with full insulation coverage.
- You notice ongoing moisture inside the insulation, which points to a leak or condensation issue that needs more than a simple replacement.
- Water flow drops sharply or stops, suggesting the problem is not just missing insulation.
Replacement Parts
Find pipe insulation for water pipes on Amazon
Match the replacement part to your exact frozen pipe before ordering.
As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
Verify the repair
- All damaged or missing insulation has been removed and replaced.
- The new insulation matches the pipe size closely and sits snugly against the pipe.
- Seams, joints, and short gaps are sealed so there are no obvious bare cold spots.
- The pipe remains protected after water runs through it and after time in a cold area.
FAQ
How do I know if pipe insulation needs to be replaced instead of just retaped?
Replace it if it is split, brittle, crushed, soaked, moldy, or missing sections. Retaping only helps when the insulation itself is still in good shape and just needs the seam closed again.
Can I put new insulation over old insulation?
It is usually better to remove damaged old material first. New insulation fits better on a clean pipe, and you will not trap moisture or hide pipe damage underneath.
Do I need to insulate both hot and cold water pipes?
Cold pipes in unheated spaces are the main freeze concern, but hot pipes can also benefit from insulation to reduce heat loss. Focus first on any pipe exposed to cold air.
What if I cannot fully cover a valve or elbow?
Use shorter cut pieces and tape them neatly around the shape. The goal is to reduce exposed pipe as much as possible while keeping important shutoffs and service points accessible.
Will new pipe insulation fix a pipe that already froze?
It helps prevent future freezing, but it will not repair a burst pipe or clear a serious blockage by itself. If the pipe is already damaged or still frozen, that problem needs to be handled first.
