How to Replace a Surface Drain Catch Basin Grate Frame
To replace a surface drain catch basin grate frame, first confirm the frame is cracked, bent, loose, or no longer holding the grate correctly. Then remove the old frame, clear debris from the basin opening, set the new frame so it sits flat and level, and test drainage with water.
This is usually a straightforward outdoor repair, but the new frame has to match the basin opening and sit solidly. If the surrounding concrete, pavers, or basin body is broken, the repair may be bigger than just swapping the frame.
Before you start: Match the replacement part to your exact exterior drainage before ordering.
Safety first
- Wear gloves when handling old metal or plastic drain parts because edges can be sharp.
- Watch your footing around wet soil, algae, or loose pavers near the drain.
- Do not leave the basin opening uncovered where someone could step into it during the repair.
- Use extra caution if the drain is in a driveway or other traffic area, and keep people away until the grate is back in place.
Tools you may need

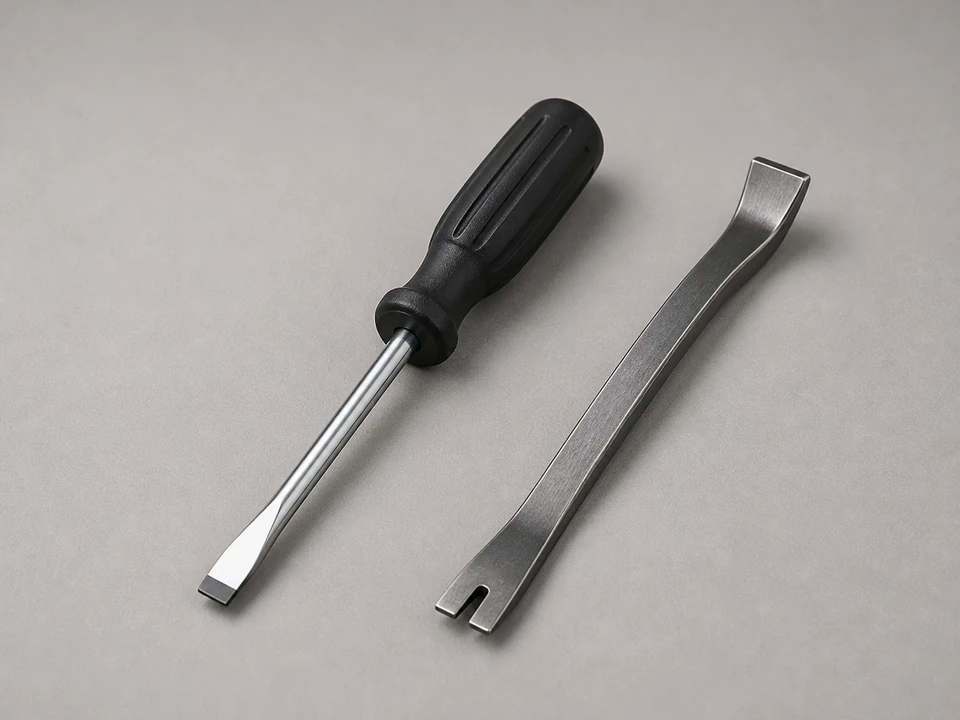

Flathead screwdriver or small pry bar
Use it for: Helps lift the grate and loosen an old frame that is stuck in place.
Shop pry tools
Tape measure
Use it for: Lets you match the replacement frame to the basin opening before installation.
Shop tape measures
Stiff brush
Use it for: Cleans mud, roots, and packed debris from the frame seat and basin edge.
Shop stiff cleaning brushes

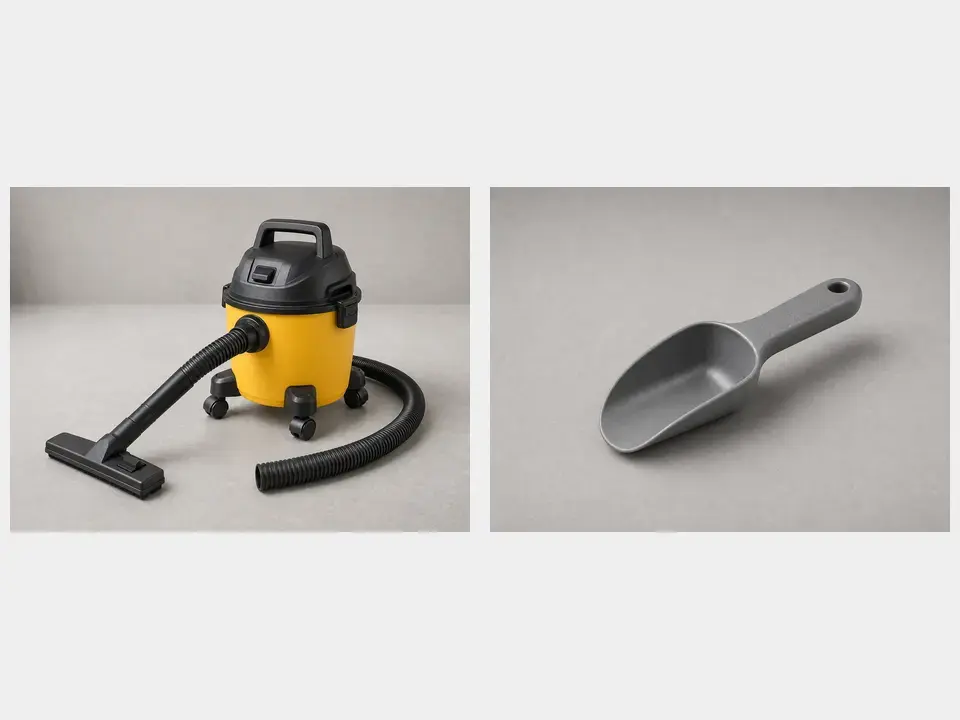

Shop vacuum or hand scoop
Use it for: Removes loose sediment so the new frame can sit flat.
Shop wet dry vacs
Rubber mallet
Use it for: Helps nudge the new frame into place without damaging it.
Shop rubber malletsAs an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
Step-by-step fix
Step 1: Confirm the frame is the problem
- Look at the drain from above and check whether the grate frame is cracked, bent, rusted through, loose, or no longer sitting flat.
- Lift or shift the grate if you can and see whether the frame is what has failed, not just the grate itself.
- Measure the opening length, width, and depth where the frame sits so you can compare it to the replacement part.
- Check the basin body and the surrounding concrete, pavers, or soil for major cracks, washout, or collapse.
If it works: You know the frame is the failed part and you have basic measurements for a matching replacement.
If it doesn’t: If the grate alone is damaged and the frame is solid, replace the grate instead of the frame.
Stop if:
- The plastic or concrete catch basin itself is cracked or collapsing.
- The surrounding surface has sunk enough that the drain opening is no longer stable.
- You cannot identify a replacement frame that matches the opening and support ledge.
Step 2: Remove the grate and old frame
- Put on gloves and clear leaves, mulch, and loose dirt from around the drain so you can see the edges clearly.
- Lift out the grate first. If it is stuck, use a flathead screwdriver or pry bar carefully at the edge.
- Pull the old frame straight up if it is loose. If it is packed in by dirt or sediment, work around the perimeter and loosen it a little at a time.
- Set the old frame aside so you can compare it to the new one.
If it works: The grate and old frame are out of the opening without damaging the basin edge.
If it doesn’t: If the frame will not come free, clean more debris from the perimeter and try lifting evenly from multiple sides.
Stop if:
- The frame appears embedded in solid concrete or mortar that would need to be cut out.
- The basin edge starts breaking apart as you try to remove the frame.
Step 3: Clean and inspect the frame seat
- Brush the ledge or lip where the frame sits until packed mud and grit are removed.
- Vacuum or scoop out loose sediment from the top of the basin so debris does not hold the new frame up.
- Check for roots, broken plastic, chipped concrete, or other obstructions that would keep the frame from sitting flat.
- Dry-fit the new frame over the opening to make sure the size and shape match before final placement.
If it works: The opening is clean, the support surface is visible, and the new frame fits the basin correctly.
If it doesn’t: If the new frame rocks, binds, or leaves large gaps, recheck the opening size and compare it to the old frame before going further.
Stop if:
- The support ledge is broken enough that the new frame has nothing solid to rest on.
- The replacement frame is clearly the wrong size or shape for the basin.
Step 4: Set the new frame in place
- Lower the new surface drain catch basin grate frame into position with the correct side up and any grate supports aligned as intended.
- Press down by hand first to seat it evenly on the cleaned ledge.
- Use a rubber mallet with light taps around the perimeter only if needed to settle the frame flat.
- Check that the top of the frame sits level with the surrounding surface or as close as the original design allows, without creating a trip edge or high spot.
If it works: The new frame sits flat, supported on all sides, and does not wobble when pressed at the corners.
If it doesn’t: If one side sits high, remove the frame and clean the seat again rather than forcing it down.
Stop if:
- The frame cannot sit securely because the basin opening is distorted or damaged.
- The surrounding surface is broken enough that the frame shifts under light pressure.
Step 5: Reinstall the grate and clear the drain path
- Place the grate into the new frame and make sure it drops fully into its seat.
- Press on the grate corners and center to confirm it is supported and does not tip or rattle excessively.
- Remove any remaining debris from the basin opening so water can flow through the grate freely.
- Clean up the area around the drain so runoff will reach the opening instead of carrying loose dirt back into it.
If it works: The grate fits the new frame properly and the drain opening is clear.
If it doesn’t: If the grate does not seat correctly, compare the grate and frame dimensions and replace whichever part does not match.
Stop if:
- The grate is loose enough to create a foot or wheel hazard even though the frame is seated correctly.
Step 6: Test the repair with real runoff
- Pour a bucket of water or run a hose toward the drain the way rainwater normally reaches it.
- Watch for water entering through the grate without backing up around the frame.
- Step around the frame and grate carefully to confirm they stay stable under normal foot traffic.
- Check again after the next rain if possible to make sure the frame stays level and the area does not wash out around it.
If it works: Water drains through normally and the new frame stays solid and level in real use.
If it doesn’t: If water still ponds, the drain line or basin may also need cleaning because the frame replacement did not address the full blockage.
Stop if:
- The area around the drain settles, shifts, or opens up after testing.
- Water disappears under the surrounding surface instead of entering the basin, which points to hidden washout or drainage damage.
Replacement Parts
Find a surface drain catch basin grate frame on Amazon
Match the replacement part to your exact exterior drainage before ordering.
As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
Verify the repair
- The new frame matches the basin opening and sits flat on the support ledge.
- The grate drops into the frame correctly and does not rock or tip.
- Water flows into the drain without leaking around the frame opening.
- The frame stays stable after foot traffic and after at least one normal runoff event.
FAQ
How do I know if I need the frame and not just the grate?
Replace the frame if it is cracked, bent, loose, rusted through, or no longer supports the grate evenly. If the frame is solid and only the top grate is damaged, the grate alone may be the right repair.
Can I reuse the old grate with a new frame?
Yes, if the grate matches the new frame exactly and seats securely without rocking. If the fit is loose or uneven, replace the grate too.
What if the new frame does not sit flat?
Remove it and clean the seat again first. If it still will not sit flat, the basin ledge may be damaged or the replacement frame may be the wrong size or shape.
Do I need sealant or adhesive to install a new drain frame?
Many replacement frames simply rest on the basin ledge and do not need adhesive. If your old setup was embedded in mortar or the surrounding surface is damaged, the repair may require more than a simple frame swap.
Why does water still back up after I replaced the frame?
A new frame will not fix a clogged basin or blocked drain line. If water still ponds, clean the basin and check for a downstream blockage.
