How to Replace a Yard Drain Grate
To replace a broken metal round grate on an outside drain, clear the basin edge, remove any screws or clips, lift the old grate out, match the new grate by diameter and seating lip, secure it, and run water through the drain to make sure the basin still empties.
A broken yard drain grate is more than ugly. It can trip someone, let debris into the drain, or leave a wheel-sized opening in the lawn. The repair is usually simple, but a round grate, square catch basin grate, and channel drain grate all fit differently.
Before you start: Match the grate shape, outside dimensions, load rating, screw pattern, and whether it sits in a catch basin frame or a round yard drain collar.
Safety first
- Wear gloves when handling old grates because broken plastic and rusted metal edges can be sharp.
- Watch your footing around wet soil, mulch, and open basin openings.
- Keep children and pets away from the open catch basin until the new grate is secured.
- Use extra caution if the drain is near a driveway or any area with heavier loads.
Tools you may need
Flathead screwdriver or small pry bar
Use it for: Helps lift the old grate and remove packed dirt around the edges.
Find a flathead screwdriver
Tape measure
Use it for: Lets you measure the grate opening so you can match the replacement correctly.
Shop tape measures
Stiff brush
Use it for: Cleans the frame ledge so the new grate can sit flat.
Find a stiff cleaning brush

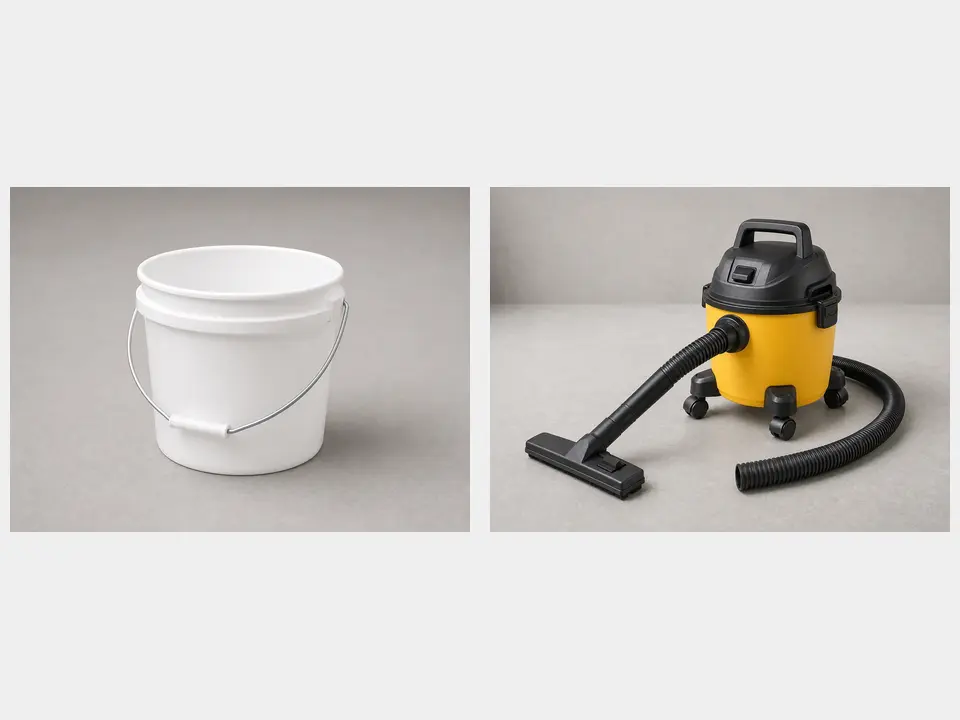

Bucket or shop vacuum
Use it for: Removes leaves, mud, and sediment from the catch basin while the grate is off.
Shop wet dry vacs
Nut driver or screwdriver set
Use it for: Needed if your grate uses screws or hold-down hardware.
Find a screwdriver setAs an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
Step-by-step fix
Step 1: Confirm the grate is the part that needs replacement
- Look at the grate closely for cracks, broken bars, rust-through, missing sections, or a loose fit in the basin opening.
- Press on the grate edges and center to see whether it rocks, sags, or lifts out too easily.
- Check the surrounding basin frame for breaks, severe warping, or crumbling concrete or plastic that would keep a new grate from seating properly.
- Measure the opening length and width, and note the grate shape and how it attaches, if it uses screws or clips.
If it works: You have confirmed the grate itself is damaged or missing, and the basin frame still looks solid enough to accept a replacement.
If it doesn’t: If the grate is intact and the real problem is standing water, clear the drain line and basin first before replacing parts.
Stop if:
- The basin frame is cracked, broken away, or badly deformed.
- The surrounding concrete or soil has collapsed enough that the grate cannot be supported safely.
- The drain area is in a vehicle path and the support structure looks damaged or undersized.
Step 2: Clear the area and remove the old grate
- Put on gloves and clear leaves, mulch, and dirt from around the drain so you can see the grate edges and any fasteners.
- Remove any screws, clips, or hold-down hardware if present, and set reusable hardware aside.
- Lift the grate straight up. If it is stuck, work around the edges with a flathead screwdriver or small pry bar and loosen packed debris a little at a time.
- If the old grate is broken into pieces, remove all fragments so nothing falls into the basin or blocks the outlet.
If it works: The old grate is out and the basin opening is fully exposed.
If it doesn’t: If the grate will not release, keep clearing the perimeter and check again for hidden screws or clips under dirt and rust.
Stop if:
- The grate is bonded in place by damaged frame material and prying is breaking the basin lip.
- You uncover sharp, unstable metal or broken concrete that makes the opening unsafe to work around.
Step 3: Clean and inspect the basin frame
- Brush the ledge where the grate sits so mud, roots, and grit do not hold the new grate up.
- Scoop or vacuum out loose sediment and debris from the top of the catch basin.
- Check that the support ledge is reasonably level and continuous all the way around.
- Dry-fit the new grate over the opening before fastening anything to confirm the shape and size match.
If it works: The seating surface is clean, and the new grate sits flat or nearly flat in the opening.
If it doesn’t: If the grate does not sit flat, recheck the opening measurements and clean the ledge again before assuming the new part is correct.
Stop if:
- The replacement grate is clearly the wrong size or shape.
- The support ledge is broken enough that the grate has large unsupported gaps or tips dangerously.
Step 4: Install the new grate
- Set the new grate into the opening in the same orientation as the old one, especially if the frame has tabs, screw holes, or a directional shape.
- Align any mounting holes and reinstall the original hardware if it is still in good condition, or use matching replacement hardware if needed.
- Tighten screws or hold-downs until the grate is secure, but do not overtighten and crack plastic parts or strip the frame.
- Press on several points of the grate to make sure it stays seated and does not rock.
If it works: The new grate is installed, secure, and sitting evenly on the basin frame.
If it doesn’t: If the grate still rocks, remove it and look for debris, bent hardware, or a mismatch between the grate and frame.
Stop if:
- Fasteners will not tighten because the frame is stripped, cracked, or broken.
- The grate cannot be secured well enough to stay in place during normal foot traffic.
Step 5: Restore the area around the drain
- Pull back any mulch, stone, or soil that is touching the grate openings so water can enter freely.
- Shape the surface around the basin so runoff slopes gently toward the drain instead of leaving the grate buried.
- Remove leftover debris and old hardware from the area so nothing washes back into the basin.
If it works: The grate is clear, accessible, and not blocked by landscaping material.
If it doesn’t: If the grate keeps ending up below surrounding soil or mulch, the area may need minor regrading so the drain can work properly.
Stop if:
- You find erosion, washout, or settlement around the basin that is undermining the drain body.
Step 6: Test the repair with real water flow
- Pour a bucket of water around and over the grate, or wait for a normal rain if one is expected soon.
- Watch for water entering through the grate without the grate shifting, lifting, or rattling.
- Check that water drains into the basin and does not immediately pond because of a clogged outlet or buried grate openings.
- Walk around the area after the test and make sure the grate still sits flat and secure.
If it works: Water enters the basin normally, the grate stays in place, and the drain area performs the same or better than before.
If it doesn’t: If water still ponds, the grate replacement held but the drainage system likely needs cleaning or further diagnosis downstream.
Stop if:
- Water backs up immediately from the basin, suggesting a blocked drain line or failed drainage system.
- The grate loosens or shifts during the water test, which means the fit or support is still not right.
Replacement Parts
Find an exterior drainage catch basin grate on Amazon
Match the grate shape, outside dimensions, load rating, screw pattern, and whether it sits in a catch basin frame or a round yard drain collar.
As an Amazon Associate I earn from qualifying purchases. Repair Riot may earn a commission at no extra cost to you.
Verify the repair
- The new grate matches the opening shape and sits flat on the frame.
- Any screws or hold-down hardware are snug and the grate does not rock under hand pressure.
- Grate openings are clear of mulch, soil, and leaves.
- Water flows through the grate and into the basin without the grate shifting out of place.
FAQ
How do I know which replacement grate to buy?
Match the opening shape, overall length and width, and the way the grate sits in or on the frame. Also check whether your old grate used screws, clips, or just dropped into place.
Can I replace just the grate and not the whole catch basin?
Yes, if the basin frame and support ledge are still solid and the new grate fits correctly. If the frame is cracked or broken, replacing only the grate usually will not hold up.
What if the old grate is stuck?
Clear dirt from the perimeter first, then remove any hidden fasteners and work around the edges gently with a screwdriver or pry tool. Do not force it so hard that you break the basin frame.
Why is water still pooling after I replaced the grate?
A new grate will not fix a clogged basin, blocked outlet pipe, or poor grading around the drain. If the grate is secure but water still stands, the drainage path needs more cleaning or diagnosis.
Do I need to fasten the new grate down?
If the original setup used screws or hold-down hardware, reinstall them. If the grate is designed as a drop-in style, it still needs to sit firmly and securely in the frame without rocking.
Can I replace a broken metal round outside drain grate with plastic?
Sometimes, but only if the plastic grate has the right diameter, seating lip, and load rating for that location. Use a stronger grate where people step, wheels cross, or yard equipment passes over it.
